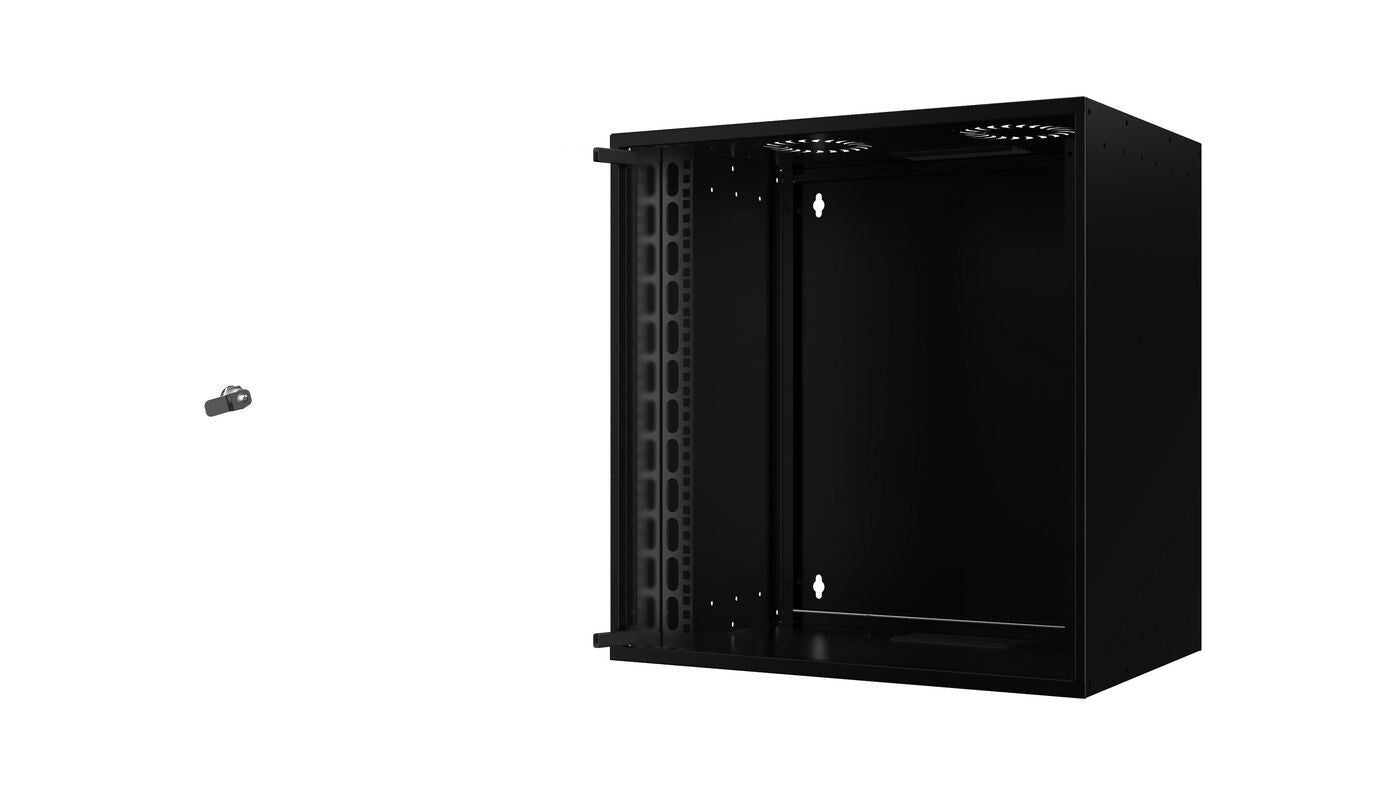

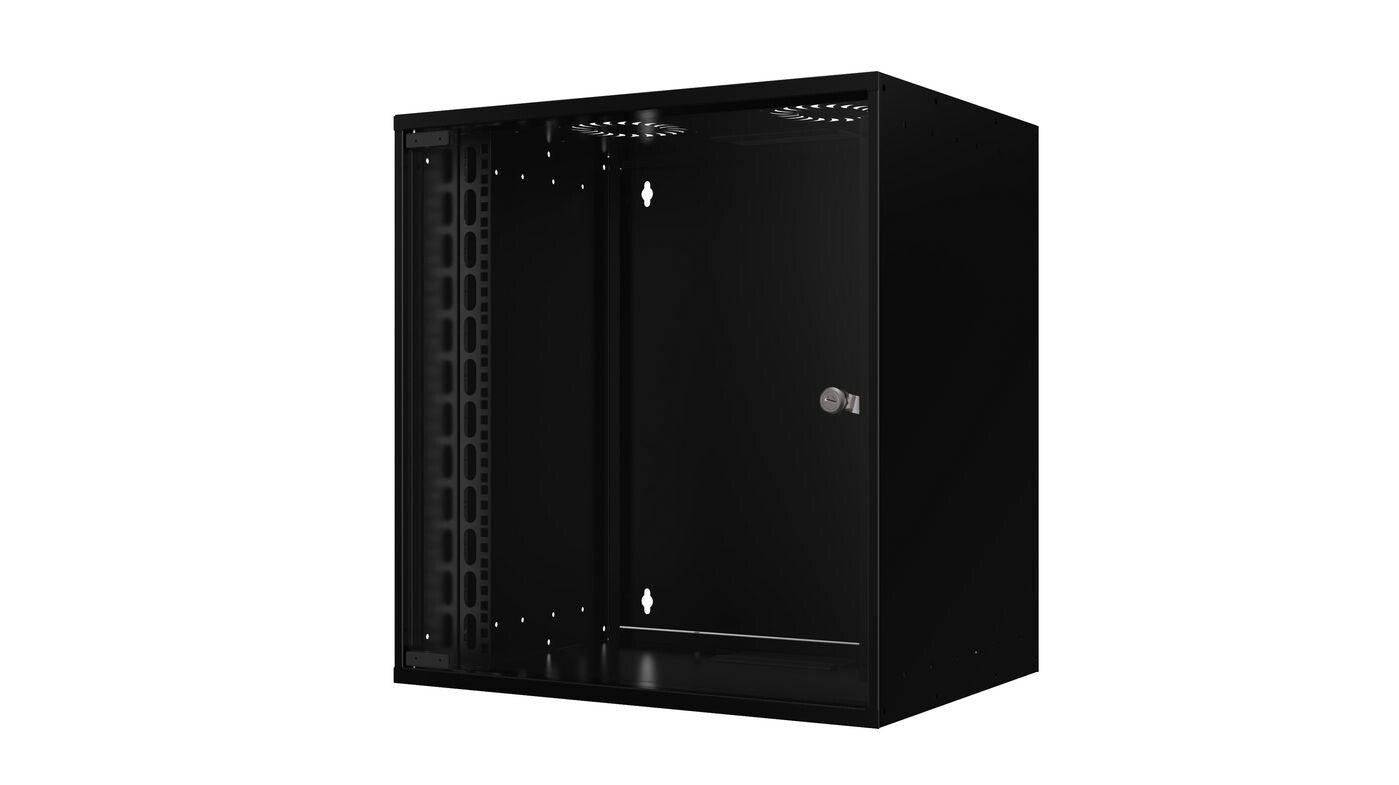

Lanview RUM12U40MNBL rack cabinet 12U Wall mounted rack Black
Lanview RUM12U40MNBL rack cabinet 12U Wall mounted rack Black
SKU:RUM12U40MNBL
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Glass Door
- Wallmount
- RAL9005
- Cage nuts can be bought separate
Product Dimensions: 535 x 400 x 572mm
They are simple and small-scale wall mount network installation solutions with low cost and robust structure. It adapts to the places where it is used with its aesthetic and decorative appearance. They have 19” and 10” width options.
Aesthetic Look
With its aesthetic and decorative appearance, it easily adapts to the places where it is used. Windshield cover; It is 4mm, smoked, antistatic, grinding, tempered and has a high break resistance, full length and locked structure.
The opening direction of the cylindrical O-lock front cover can be changed easily. The glass door module has a special u-type screw hinge system.
Variety
SOHO Cabinets have two types of width as 19” and 10”, and 2 types of depth as 400mm and 300mm.
Purpose of Usage
It is used in installation of small systems, intermediate distribution terminal, network floor distributions, wall type network installation applications.
| Features | |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 80 kg |
| Product colour | Black |
| Material | Glass |
| Frame type | Closed |
| Front door construction | Glass/Steel |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| Mounting hole shape | Round |
| Castor wheels | No |
| Assembly required | Yes |
| International Protection (IP) code | IP40 |
| Preassembled | No |
| Cable entry point | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 430 mm |
| Depth | 430 mm |
| Height | 550 mm |
| Weight | 13.6 kg |
| Packaging data | |
|---|---|
| Package width | 430 mm |
| Package depth | 430 mm |
| Package height | 550 mm |
| Package weight | 14.9 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 535 x 400 x 572 mm |
