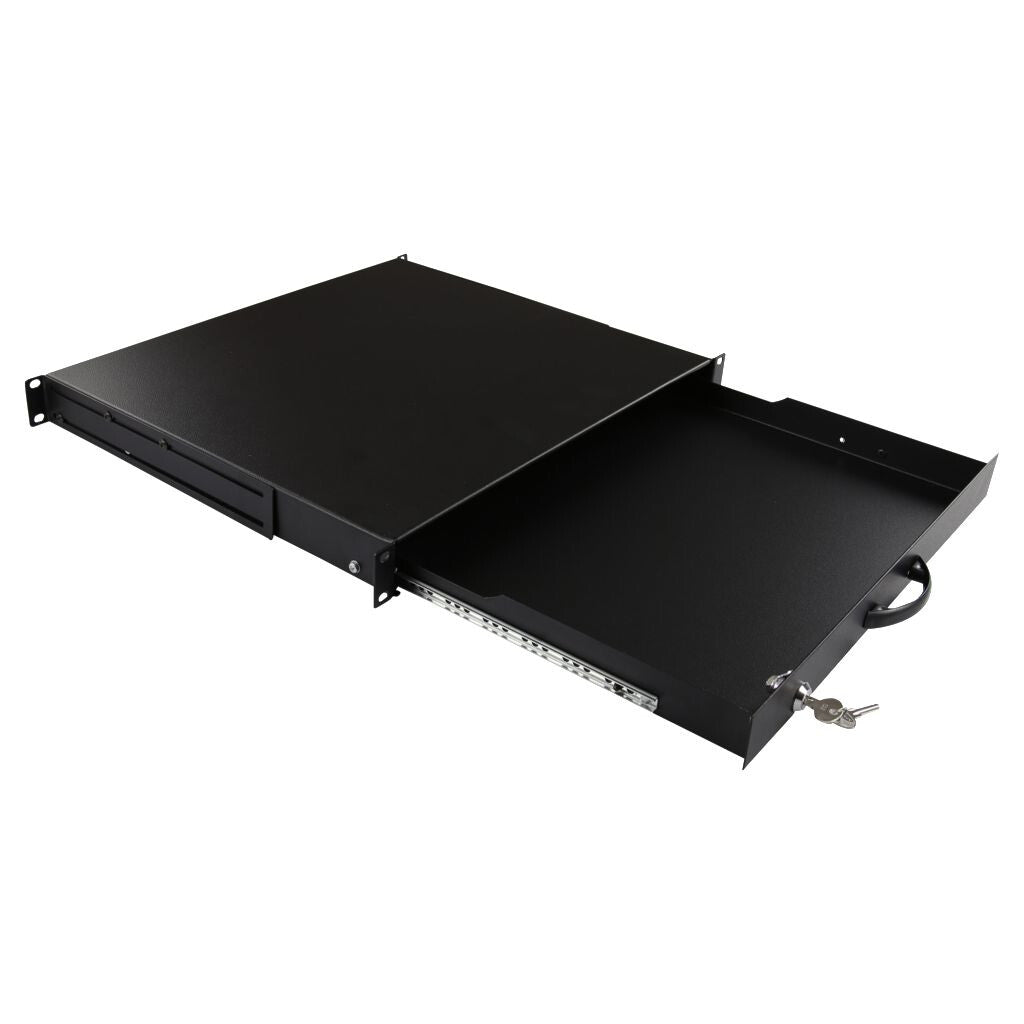

Lanview RAD100BL rack accessory Drawer unit
Lanview RAD100BL rack accessory Drawer unit
SKU:RAD100BL
66 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
19" drawer modules (lockable)
Dimensions(mm): W: 482 x D: 400 x H: 45
Color: Ral 9005
Rack modules are general purpose housings, lockable and adaptable to all 19" cabinets. They can be easily installed to any depth by means of adjustable depth side brackets found in the front and in the back.
With its specially designed side panels of extruded aluminum it presents a robust and high resistance structure.
| Features | |
|---|---|
| Type | Drawer unit |
| Product colour | Black |
| Number of attachment points | 4 |
| Mounting hole shape | Oval |
| Preassembled | Yes |
| Compatible rack width | 19" |
| Easy mounting | Yes |
| Maximum weight capacity | 50 kg |
| Rack capacity | 1U |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 4.85 kg |
| Packaging data | |
|---|---|
| Package weight | 4.86 kg |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cage nuts included | Yes |
| Number of nuts | 4 |
| Other features | |
|---|---|
| Rack mounting | Yes |
| Dimensions (WxDxH) | 482 x 400 x 45 mm |
| Static load | 50 Kg |
