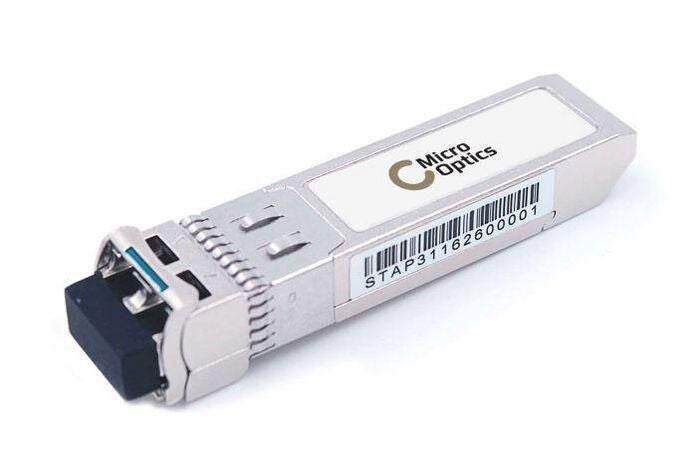

Lanview MO-OSX010000 network transceiver module Fiber optic 10000 Mbit/s LC 1310 nm
Lanview MO-OSX010000 network transceiver module Fiber optic 10000 Mbit/s LC 1310 nm
Couldn't load pickup availability
SKU:MO-OSX010000
14 in stock
- 100% Compatability
- Availability from our extensive stock
- High Quality - all products are tested
- Huge savings on quality alternatives to “originals”
EET has expanded the offerings to support a wide range of optical transceivers ranging from GBIC to XFP. All of the products comply with MSA and environmental standards.
Why 3rd party transceivers?
OEM ́s such as HP, Cisco, 3Com (HP) and many others don ́t make any transceivers themselves but relabel standard products and add huge margins. We have decided to give our customers a choice. Buy original or save up to 60 % and get high quality products with:
- 10 Year warranty
- 100% Compatability
- Availability from our extensive stock
- High Quality - all products are tested
- Huge savings on quality alternatives to “originals”
Buying MicroOptics Transceivers does not mean your equipment warranty is void.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | LC |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | SFP+ |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Maximum transfer distance (Single-mode) | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Fiber ethernet cabling technology | 10GBASE |
| Copper ethernet cabling technology | 10GBASE |
| Features | |
|---|---|
| Form factor | SFP+ |
| Plug and Play | Yes |
| Easy to install | Yes |
| Brand compatibility | Huawei |
| Compatible products | Huawei OSX010000 |
| Certification | MSA |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 105 mm |
| Depth | 69 mm |
| Height | 23 mm |
| Weight | 10 g |
| Packaging data | |
|---|---|
| Package width | 105 mm |
| Package depth | 69 mm |
| Package height | 23 mm |
| Package weight | 30 g |
| Package type | Window box |
