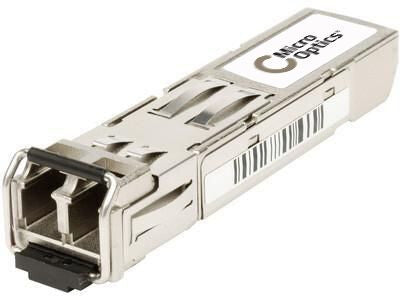

Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Lanview MO-MGB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Regular price
£18.06 GBP
Regular price
Sale price
£18.06 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MO-MGB-SX
66 in stock
- **100% Planet Compatible**
SFP 1.25 Gbps, MMF, 550 m, VCSEL, LC, Compatible with Planet MGB-SX
MO-MGB-SX
| Performance | |
|---|---|
| Fiber ports quantity | 1 |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Duplex system | Full |
| Link budget | 8 dB |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| Single-mode fiber (SMF) supported | No |
| Maximum data transfer rate | 1000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | MSA |
| Compatible products | Planet MGB-SX |
| Easy to install | Yes |
| Plug and Play | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -45 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 40 g |
| Height | 8.5 mm |
| Depth | 56 mm |
| Width | 14 mm |
| Packaging data | |
|---|---|
| Package type | Window box |
| Package weight | 100 g |
| Package height | 23 mm |
| Package depth | 105 mm |
| Package width | 117 mm |
