Lanview

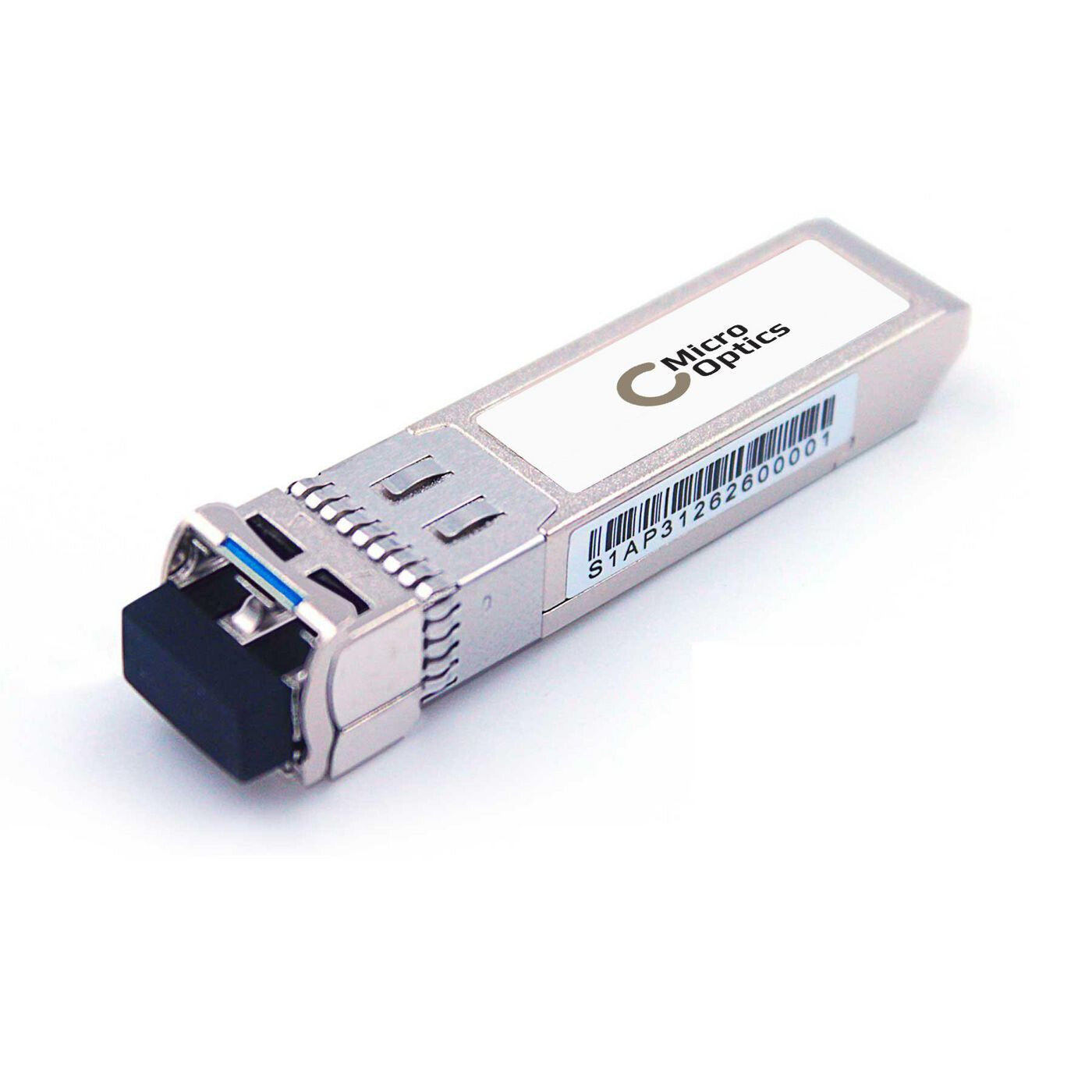

Lanview MO-MGB-LX network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
Lanview MO-MGB-LX network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm
Regular price
£14.78 GBP
Regular price
Sale price
£14.78 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MO-MGB-LX
81 in stock
- **100% Planet Compatible**
SFP 1 Gbps, SMF, 20 km, LC, Compatible with Planet MGB-LX
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.
| Performance | |
|---|---|
| Fiber ports quantity | 1 |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Duplex system | Full |
| Link budget | 15 dB |
| Wavelength | 1310 nm |
| Maximum transfer distance (Single-mode) | 20000 m |
| Maximum transfer distance | 20000 m |
| SFP transceiver standard | LX |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | No |
| Single-mode fiber (SMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | MSA |
| Compatible products | Planet MGB-LX |
| Brand compatibility | Planet |
| Easy to install | Yes |
| Plug and Play | Yes |
| Form factor | SFP |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -45 - 75 °C |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 40 g |
| Height | 23 mm |
| Depth | 65 mm |
| Width | 107 mm |
| Packaging data | |
|---|---|
| Package type | Window box |
| Package weight | 100 g |
| Package height | 23 mm |
| Package depth | 65 mm |
| Package width | 107 mm |
