Lanview

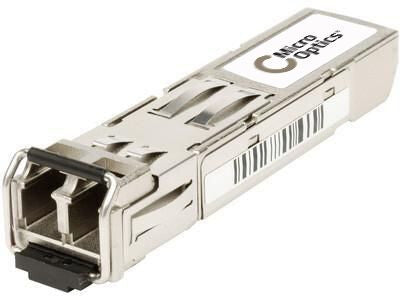

Lanview MO-G-SFP-1G-SX network transceiver module Fiber optic 1000 Mbit/s LC 850 nm
Lanview MO-G-SFP-1G-SX network transceiver module Fiber optic 1000 Mbit/s LC 850 nm
SKU:MO-G-SFP-1G-SX
Regular price
£18.56 GBP£15.47 GBP
Regular price
£0.00 GBP
Sale price
£18.56 GBP£15.47 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
67 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- **100% Generic Compatible**
SFP 1.25 Gbps, MMF, 550 m, LC, DDMI, Compatible with Generic SFP-1G-SX
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | LC |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | 4 dBmW |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber ports quantity | 1 |
| Features | |
|---|---|
| Form factor | SFP |
| Plug and Play | Yes |
| Easy to install | Yes |
| Compatible products | Generic SFP-1G-SX |
| Certification | MSA |
| Operational conditions | |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 60 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 40 g |
| Packaging data | |
|---|---|
| Package width | 60 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 50 g |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| RX sensitivity | -18 dB |
