Lanview LVR300728 rack cabinet 3U Wall mounted rack Black
Lanview LVR300728 rack cabinet 3U Wall mounted rack Black
Couldn't load pickup availability
SKU:LVR300728
Low stock: 4 left
- 3U Wall mounted rack
- Frame type: Closed
- Black

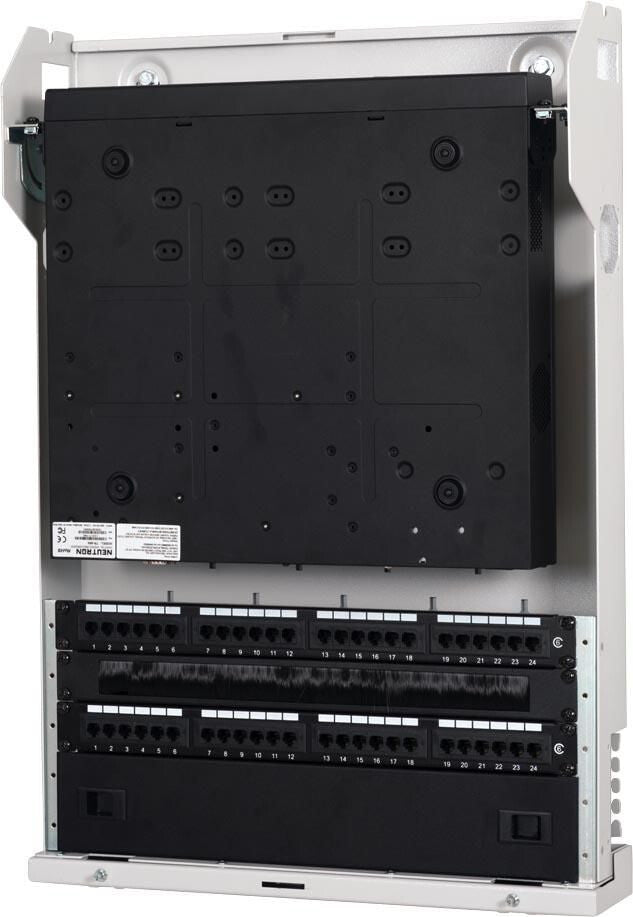

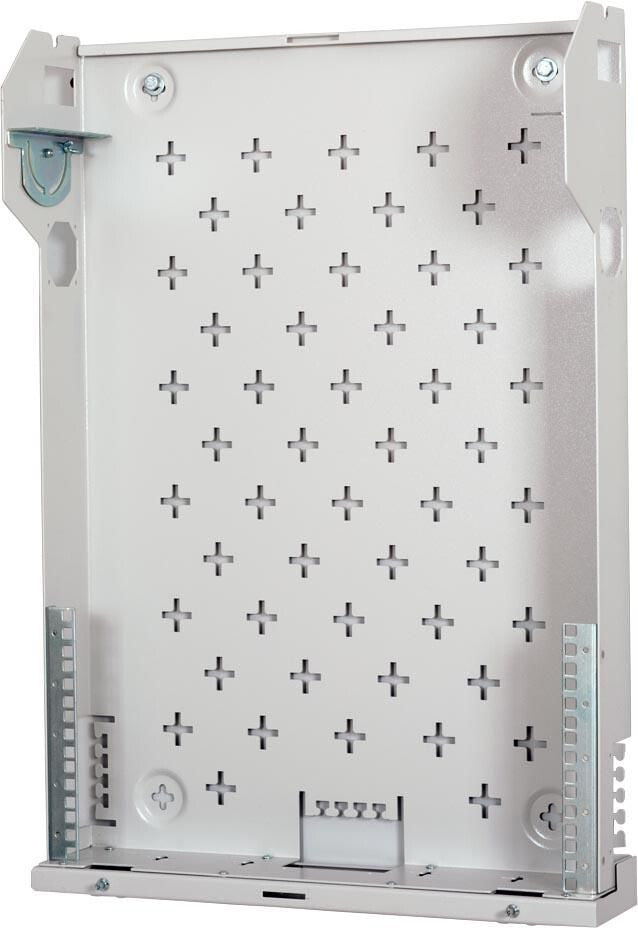

Wall-mounted slim design 760mm deep rack cabinet designed for the installation of both cabling and equipment. Suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of surveillance and audio visual equipment. It's compact size and unique design gives you the possibility to have a functional rack in even small spaces that usually wouldn't fit a standard rack.
The product range is designed for small offices, homes offices, where a smaller network housing performed.
As well decoratively fit product would also be used in horizontal segments of applications, for hotels, hospitals, laboratories where a Slim wall application is needed.
| Features | |
|---|---|
| Rack capacity | 3U |
| Type | Wall mounted rack |
| Product colour | Black |
| Frame type | Closed |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Rack rails | Yes |
| Cooling type | Passive |
| Soundproof | No |
| International Protection (IP) code | IP20 |
| Preassembled | Yes |
| Weight & dimensions | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Width | 500 mm |
| Depth | 155 mm |
| Height | 760 mm |
| Weight | 16 kg |
| Width (imperial) | 48.3 cm (19") |
| Packaging data | |
|---|---|
| Package width | 520 mm |
| Package depth | 200 mm |
| Package height | 800 mm |
| Package weight | 17 kg |
| Other features | |
|---|---|
| Chassis type | Rack cabinet |
| Compliance industry standards | Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric, ETSI and 19’ international standard |
| Dimensions (WxDxH) | 500 x 155 x 760 mm |
