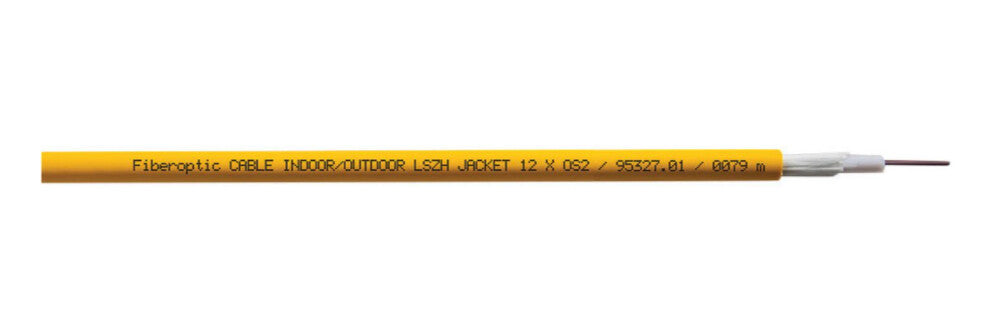

Lanview LVO232550-100 InfiniBand/fibre optic cable 100 m Yellow
Lanview LVO232550-100 InfiniBand/fibre optic cable 100 m Yellow
Regular price
£115.40 GBP
Regular price
Sale price
£115.40 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVO232550-100
Low stock: 2 left
- Number of fibers: 12
- Fibre size: 9μm
- Color: Yellow
- Usage: Indoor/Outdoor
Fibre cable 12 x 9/125 OS2 LSZH indoor/outdoor
Mainly used in data installations as backbone cabling or by long distances where large bandwidth is desired. This cable is suitable for indoor and outdoor installations. For outdoor installations conduit have to be used
| Features | |
|---|---|
| Cable length | 100 m |
| Fibre optic type | OS2 |
| Connector 1 | No |
| Connector 2 | No |
| Connector polish type | PC |
| Product colour | Yellow |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1310 nm |
| Compressive strength | 1500 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27 |
| Technical details | |
|---|---|
| Doesn't contain | Halogen |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 6 mm |
| Cable weight | 40 kg/km |
| Weight | 3.9 kg |
| Bending radius | 6 cm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 4 kg |
| Other features | |
|---|---|
| Tube diameter | 2.8 mm |
| Number of optical fibres | 12 |
