Lanview

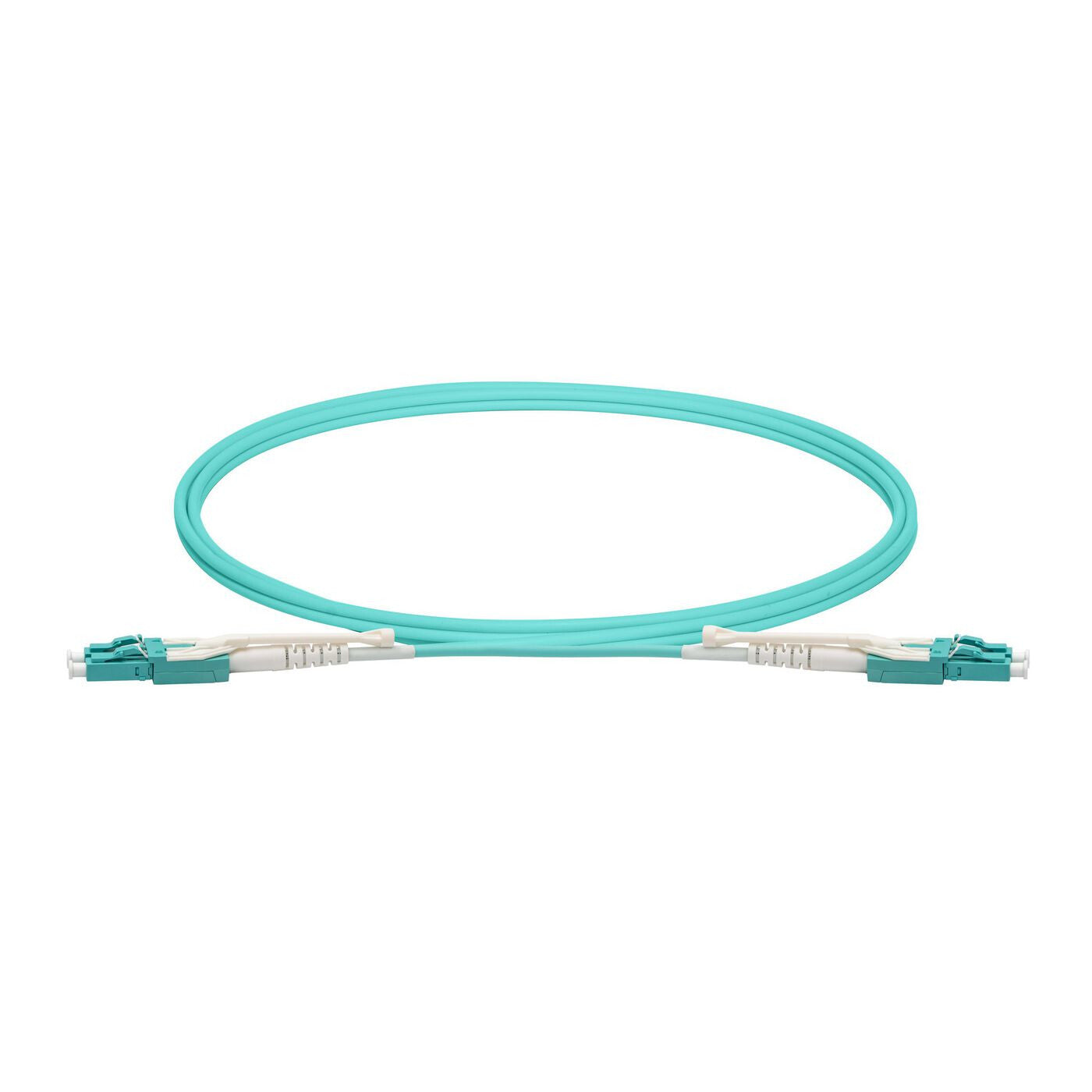

Lanview LVO231510 InfiniBand/fibre optic cable 10 m LC Blue

Lanview LVO231510 InfiniBand/fibre optic cable 10 m LC Blue

Regular price £16.13 GBP
Regular price Sale price £16.13 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:LVO231510

Low stock: 4 left

  • UniBoot to minimize insertionloss
  • Easy to handle
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Pre tested with test report
  • Reverse Polarity—with a few simple steps, the connectors polarity of the LC
  • Uniboot fiber patch cables can be reversed without need of connector re-termination.
  • Quick Release Latch—the latch of LC Uniboot fiber patch cable allows for the quick and easy release of this connector from the adapter panel, which makes great sense in the growing trend of high density applications.
Fiber patch cords LC Uniboot to LC Uniboot duplex OM3 10m 3.0mm LSZH (Grade C)

This Uniboot cable comes with a lot of great features to take your networking setup to the next level, Uniboot cables comes with both the fibre leads coated in a single jacket, meaning there is more room for airflow in the rack. This also means the insertion loss is low.
Another special feature of the Uniboot cable is the option to switch polarities, simply remove the top cover and you can swap the connectors to change the polarity, no need to swap to another cable with Uniboot.
This cable lives up to the OM3 fibre standard to connect to high speed and legacy networks like 10/40/100 gigabit. This cable standard is ideal for for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc.
The cable is made of LSZH material to live up to Telecordia, EIA TIA or IEC standards.

Features
Certification Rohs
Plug and Play Yes
Jacket material Low smoke zero halogen (LSZH)
Insertion loss 0.14 dB
Return loss 38.42 dB
Ethernet interface type 10 Gigabit Ethernet
Wavelengths supported 850 nm
Fiber mode structure Multi-mode
Cladding diameter 150 µm
Full duplex Yes
Product colour Blue
Connector 1 gender Male
Connector 2 gender Male
Connector gender Male/Male
Connector 2 LC
Connector 1 LC
Fibre optic type OM3
Cable length 10 m
Technical details
Sustainability compliance Yes
Compliance certificates REACH
Doesn't contain Halogen
Weight & dimensions
Weight 46 g
Cable diameter 3 mm
Packaging data
Package weight 47 g
Quantity per pack 1 pc(s)
