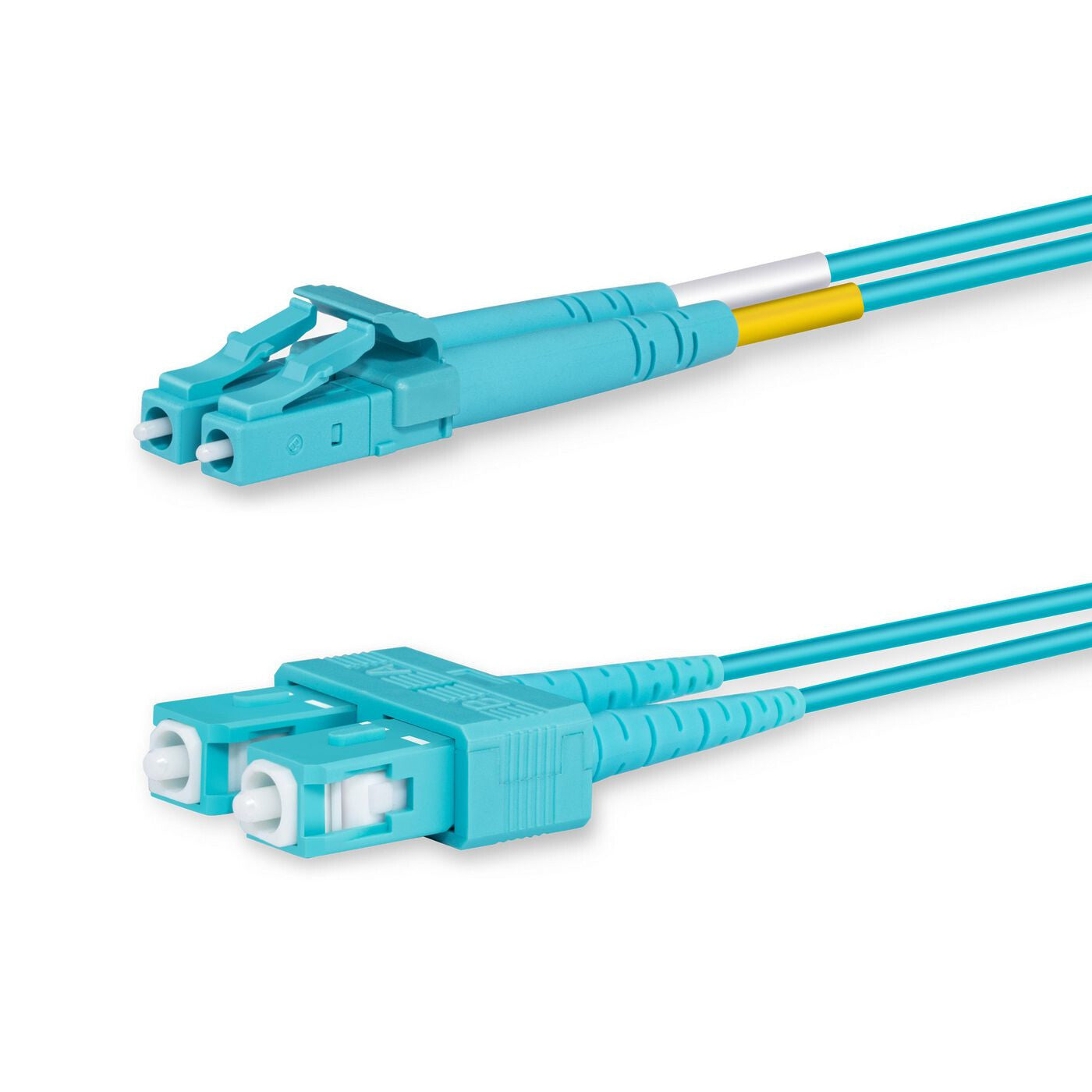

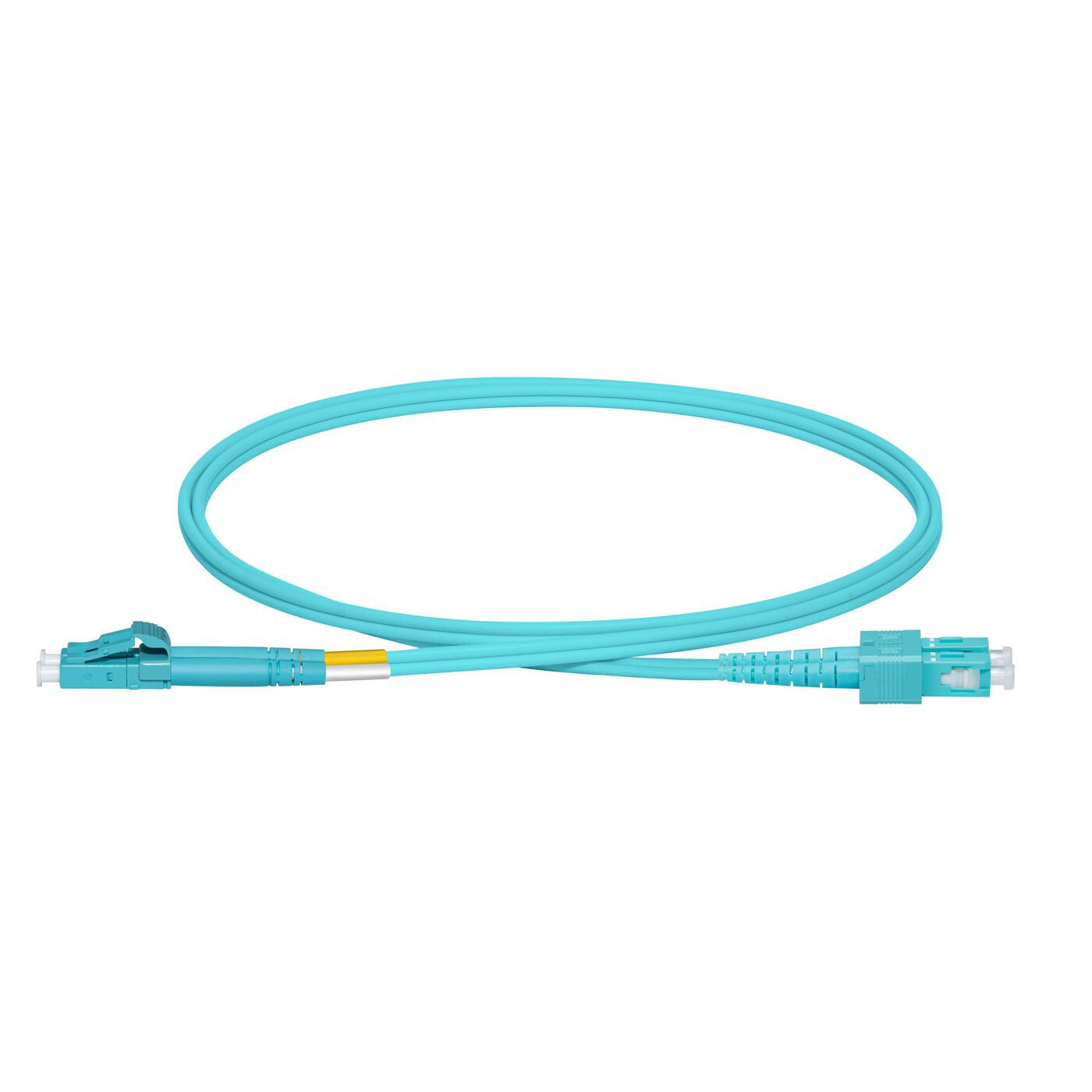

Lanview LVO231479 InfiniBand/fibre optic cable 5 m LC SC Aqua colour
Lanview LVO231479 InfiniBand/fibre optic cable 5 m LC SC Aqua colour
SKU:LVO231479
35 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Aqua
- Length: 5 meter
- pre tested with test report
- Fibre Standard G.652.D
The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Cable length | 5 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Ethernet interface type | 40 Gigabit Ethernet |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | IEC, EIA, TIA, Telcordia |
| Technical details | |
|---|---|
| Doesn't contain | Halogen |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 40 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 42 g |
| Other features | |
|---|---|
| Connector(s) | LC - SC |
