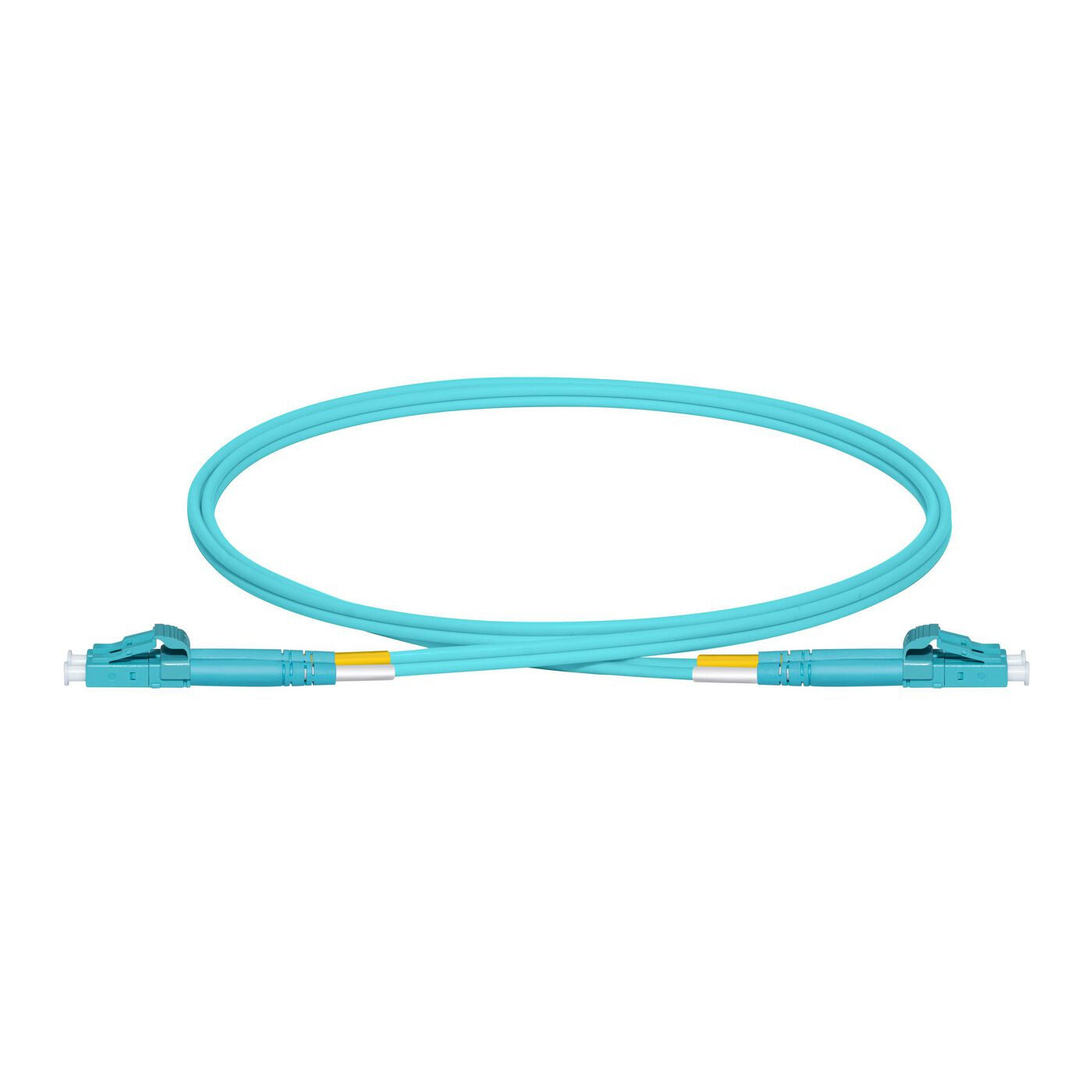

Lanview LVO231469 InfiniBand/fibre optic cable 1 m LC Aqua colour
Lanview LVO231469 InfiniBand/fibre optic cable 1 m LC Aqua colour
Regular price
£6.13 GBP
Regular price
Sale price
£6.13 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVO231469
273 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Aqua
- Length: 1 meter
- pre tested with test report
- Fibre Standard G.652.D

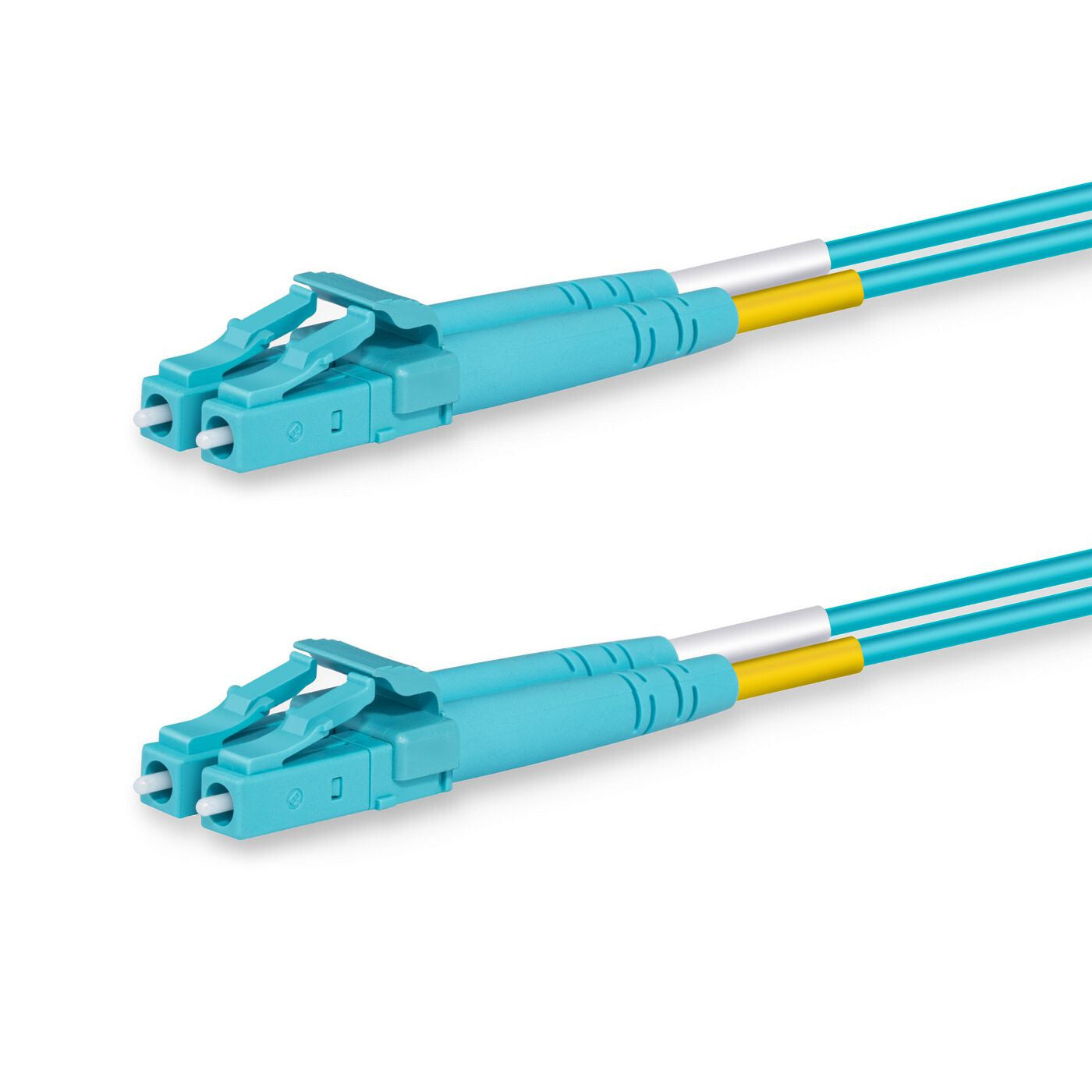

LC-LC Multimode fibre cable duplex 1m OM3 50/125 LSZH
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
| Features | |
|---|---|
| Cable length | 1 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Ethernet interface type | 10 Gigabit Ethernet |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | IEC, EIA, TIA, Telcordia |
| Technical details | |
|---|---|
| Doesn't contain | Halogen |
| Weight & dimensions | |
|---|---|
| Cable diameter | 3 mm |
| Weight | 21 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 163 mm |
| Package depth | 60 mm |
| Package height | 150 mm |
| Package weight | 25 g |
| Other features | |
|---|---|
| Connector(s) | LC - LC |
