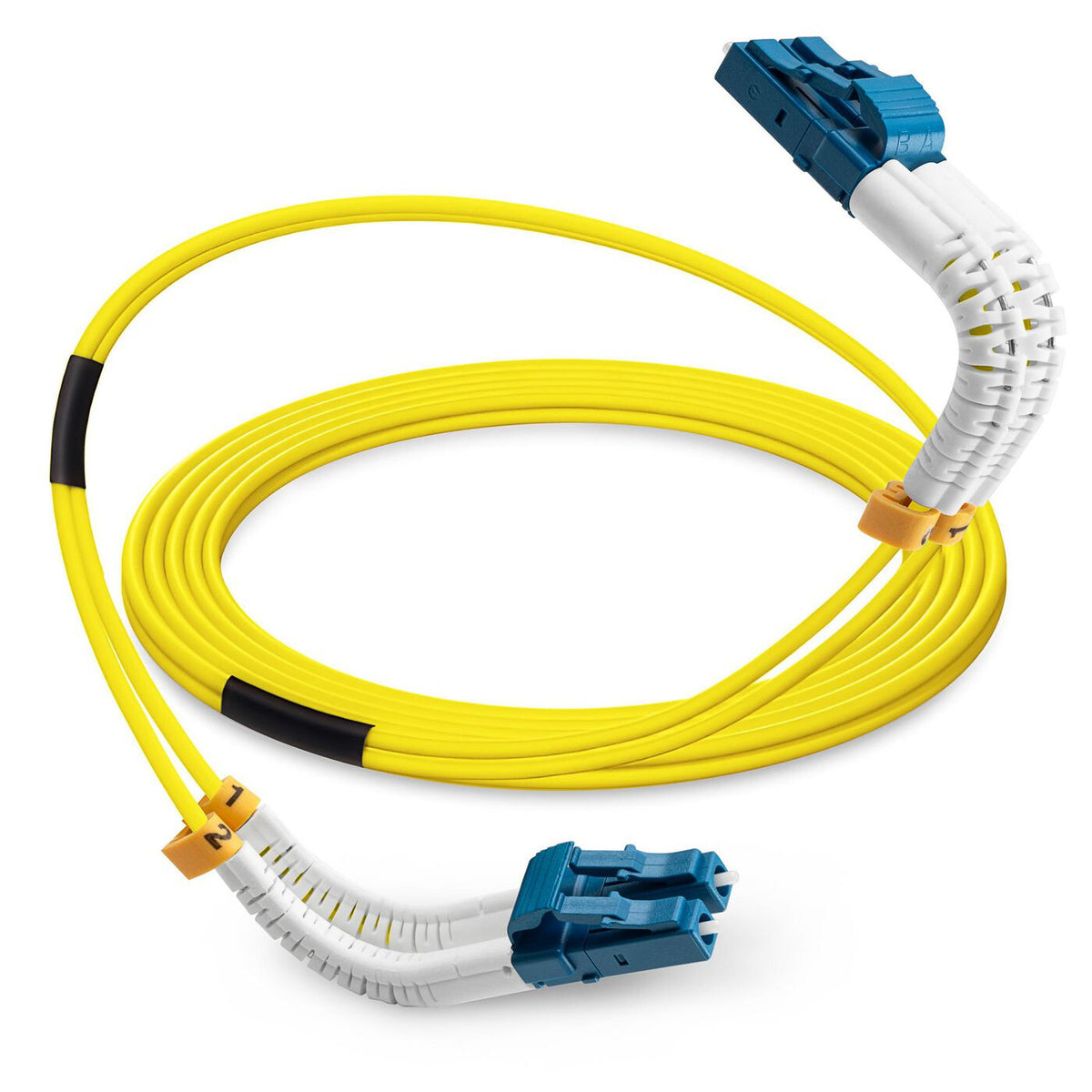

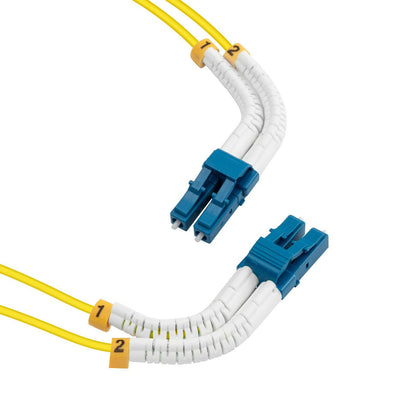

Lanview LVO231410-FLEX InfiniBand/fibre optic cable 10 m LC Yellow
Lanview LVO231410-FLEX InfiniBand/fibre optic cable 10 m LC Yellow
Regular price
£12.96 GBP
Regular price
Sale price
£12.96 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVO231410-FLEX
15 in stock
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Color: Yellow
- Bending radius: 30 mm
- LC/UPC Connector
- Cable Diameter 2.0mm
- Fibre Standard G.652.D
Bendable LC-LC Singlemode fibre cable duplex 10m OS2 LSZH

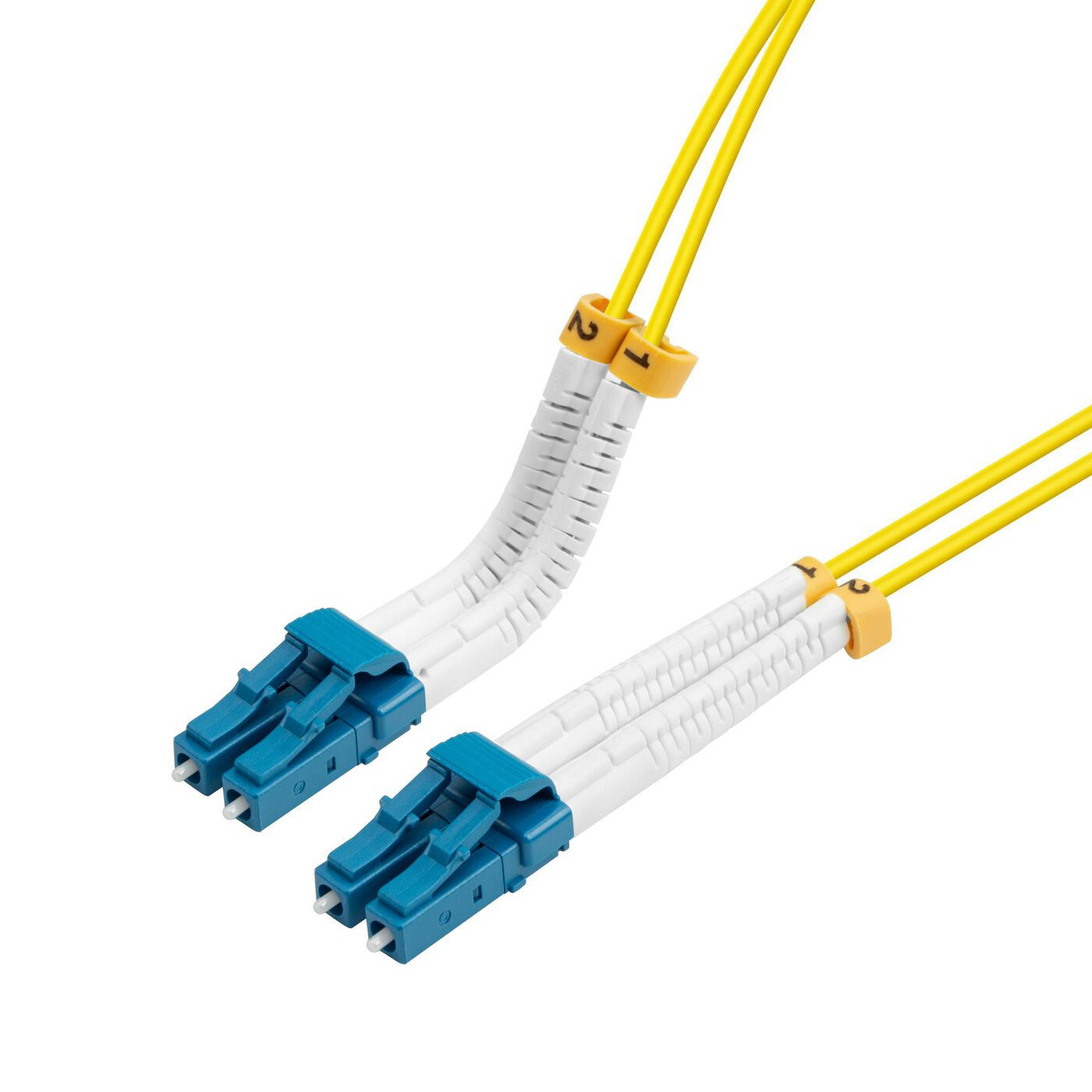

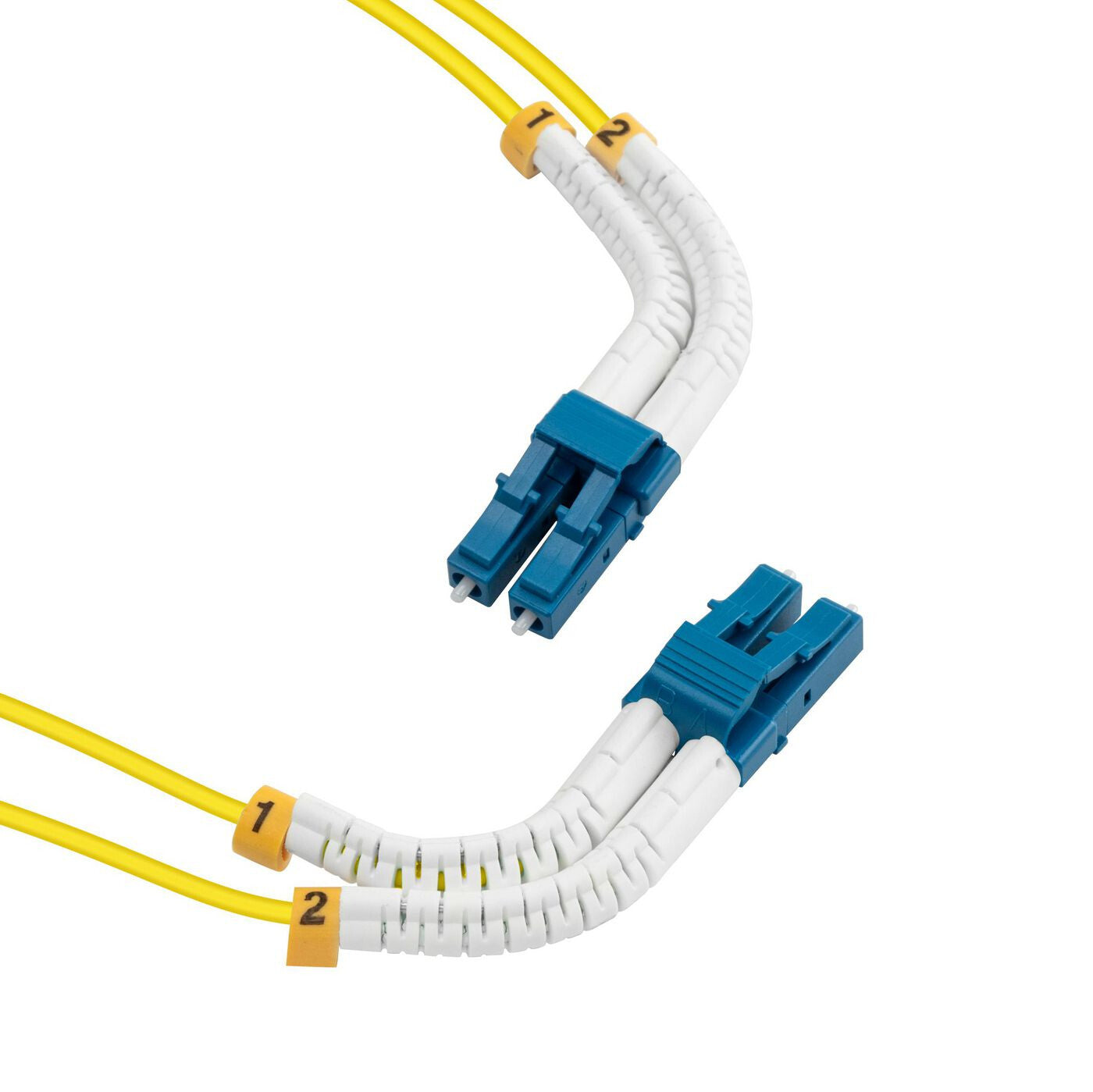

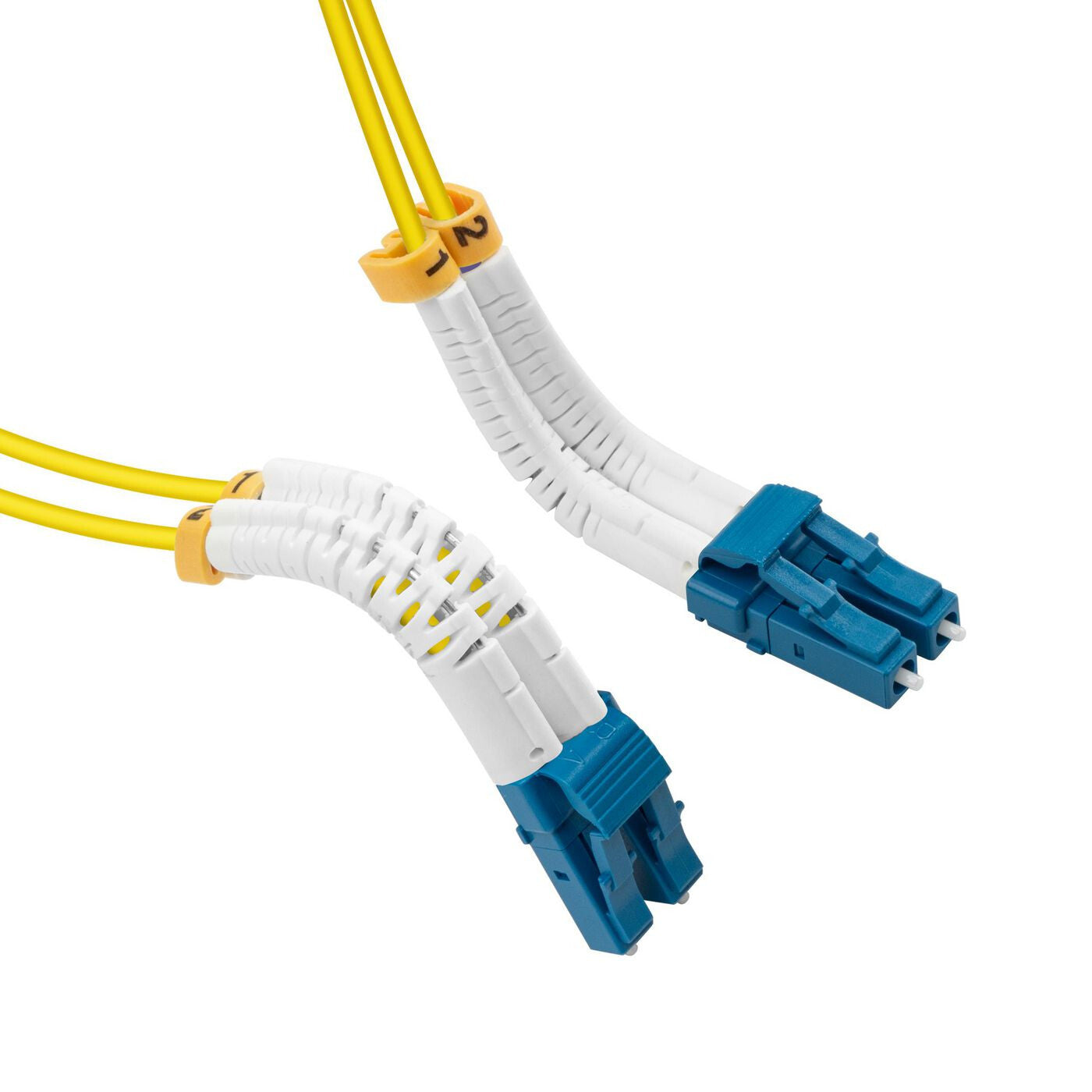

The Lanview Bendable series are designed for versatile cable management, capable of bending and maintaining any angle from straight to 90 degrees. The boot, molded over a single stainless-steel wire, can be easily positioned by hand, with the internal wire ensuring it holds the desired angle or direction.
| Features | |
|---|---|
| Cable length | 10 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector gender | Male/Male |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1310 nm |
| Return loss | 50 dB |
| Insertion loss | 0.3 dB |
| Compressive strength | 10 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Plug and Play | Yes |
| Technical details | |
|---|---|
| Doesn't contain | Halogen |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 180 g |
| Bending radius | 3 cm |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package depth | 40 mm |
| Package height | 200 mm |
| Package weight | 180 g |
| Other features | |
|---|---|
| Core / cladding diameter | 9/125 µm |
