Lanview LVO231408-FLEX InfiniBand/fibre optic cable 3 m LC Yellow

Lanview LVO231408-FLEX InfiniBand/fibre optic cable 3 m LC Yellow

£10.07 GBP
£10.07 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO231408-FLEX

30 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Yellow
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Cable Diameter 2.0mm
  • Fibre Standard G.652.D

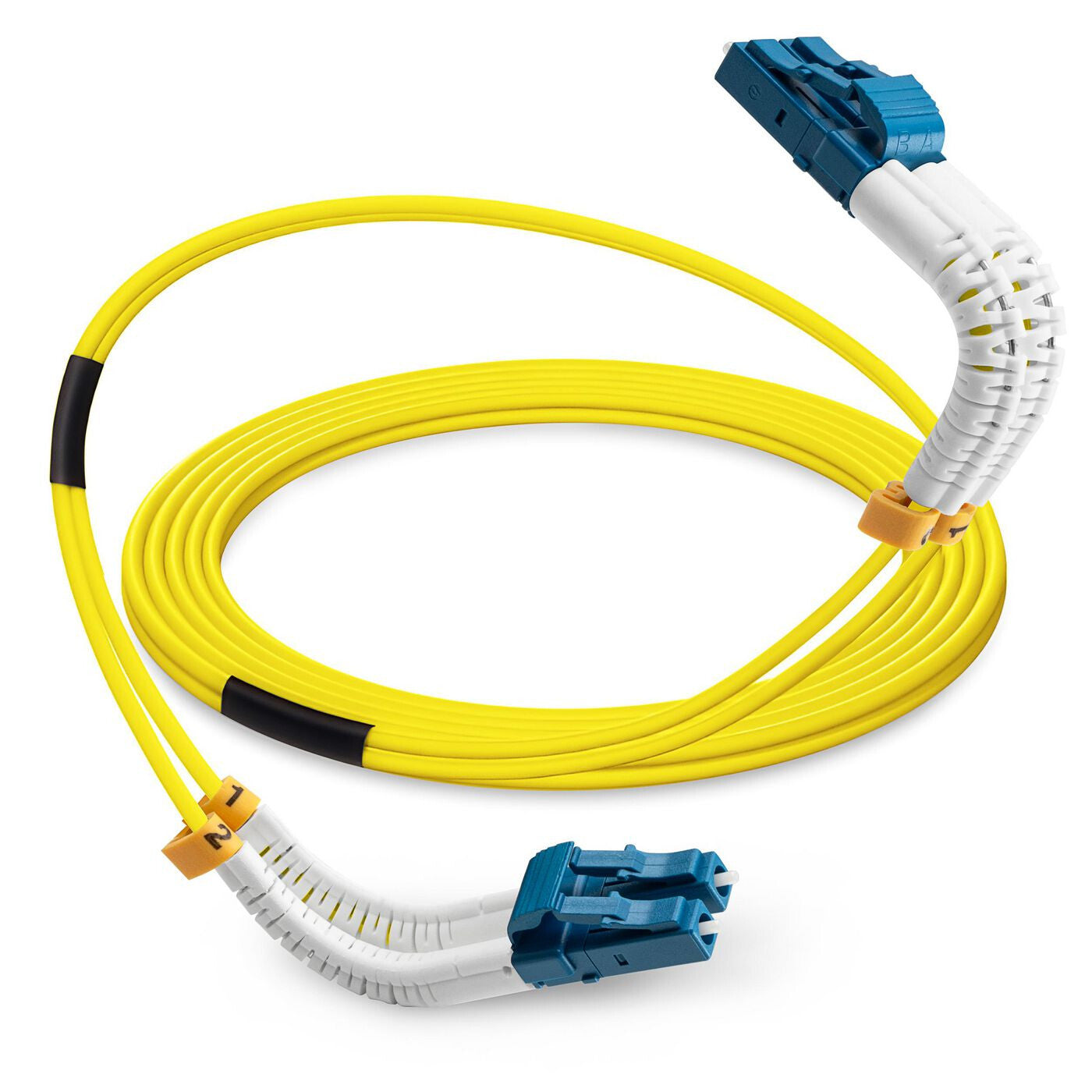

Bendable LC-LC Singlemode fibre cable duplex 3m OS2 LSZH

The Lanview Bendable series is engineered for flexible cable management, able to bend and hold any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.
The design of the boot allows for repositioning at any time or straightening for disconnecting connectors. This adaptability ensures optimal connector placement in challenging conditions, such as tight spaces or high-density environments.

Features
Cable length 3 m
Fibre optic type OS2
Connector 1 LC
Connector 2 LC
Connector gender Male/Male
Connector 2 gender Male
Connector 1 gender Male
Connector polish type UPC
Product colour Yellow
Full duplex Yes
Cladding diameter 125 µm
Fiber mode structure Single-mode
Return loss 50 dB
Insertion loss 0.3 dB
Compressive strength 10
Technical details
Doesn't contain Halogen
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 80 g
Bending radius 3 cm
Packaging data
Package width 180 mm
Package depth 40 mm
Package height 200 mm
Package weight 80 g
Other features
Core / cladding diameter 9/125 µm
