Lanview

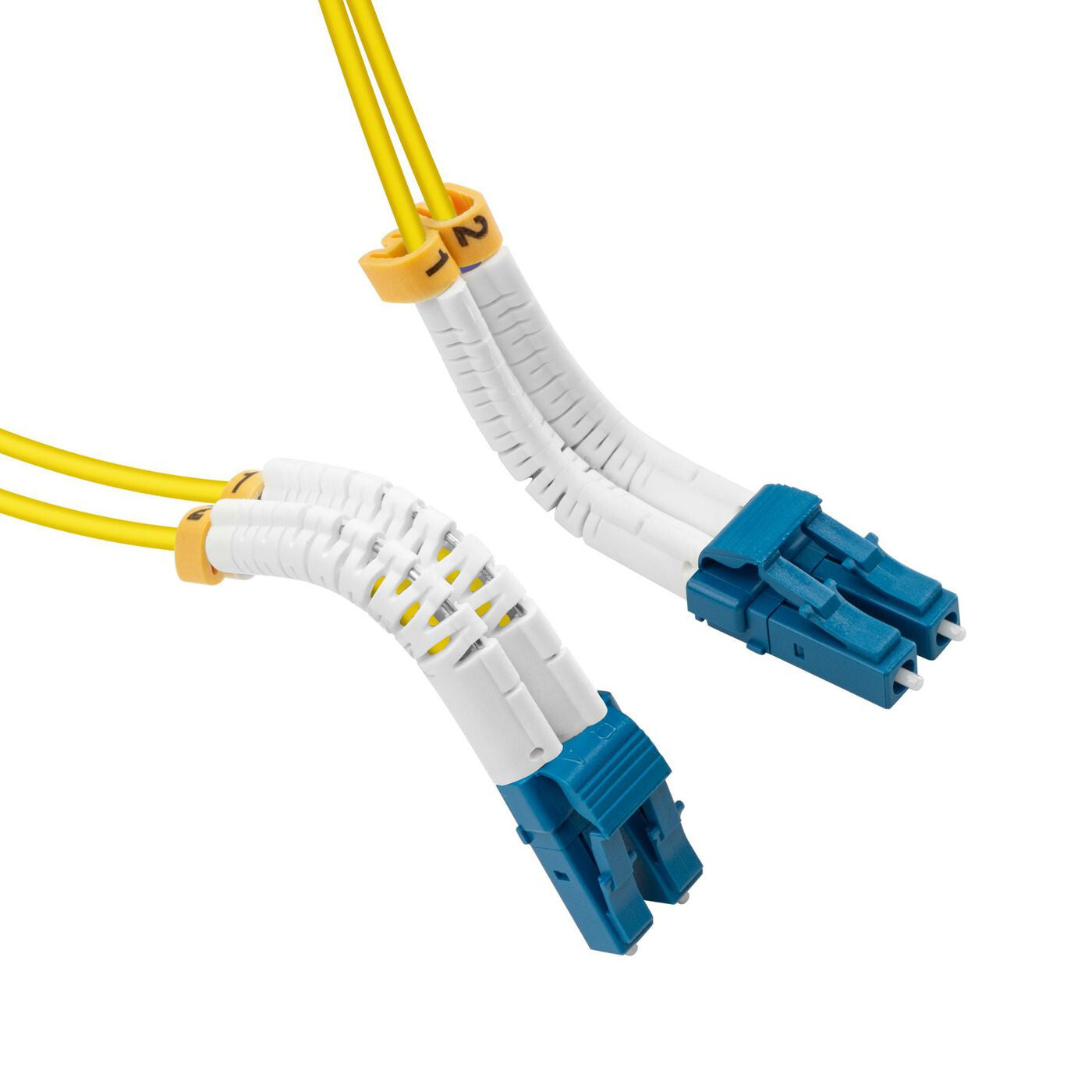

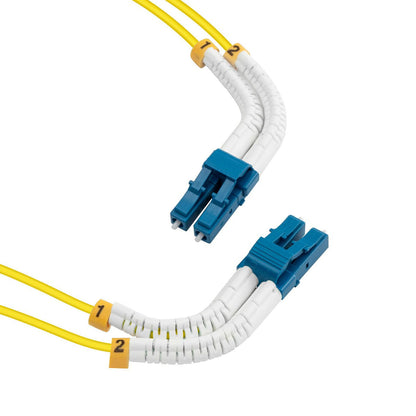

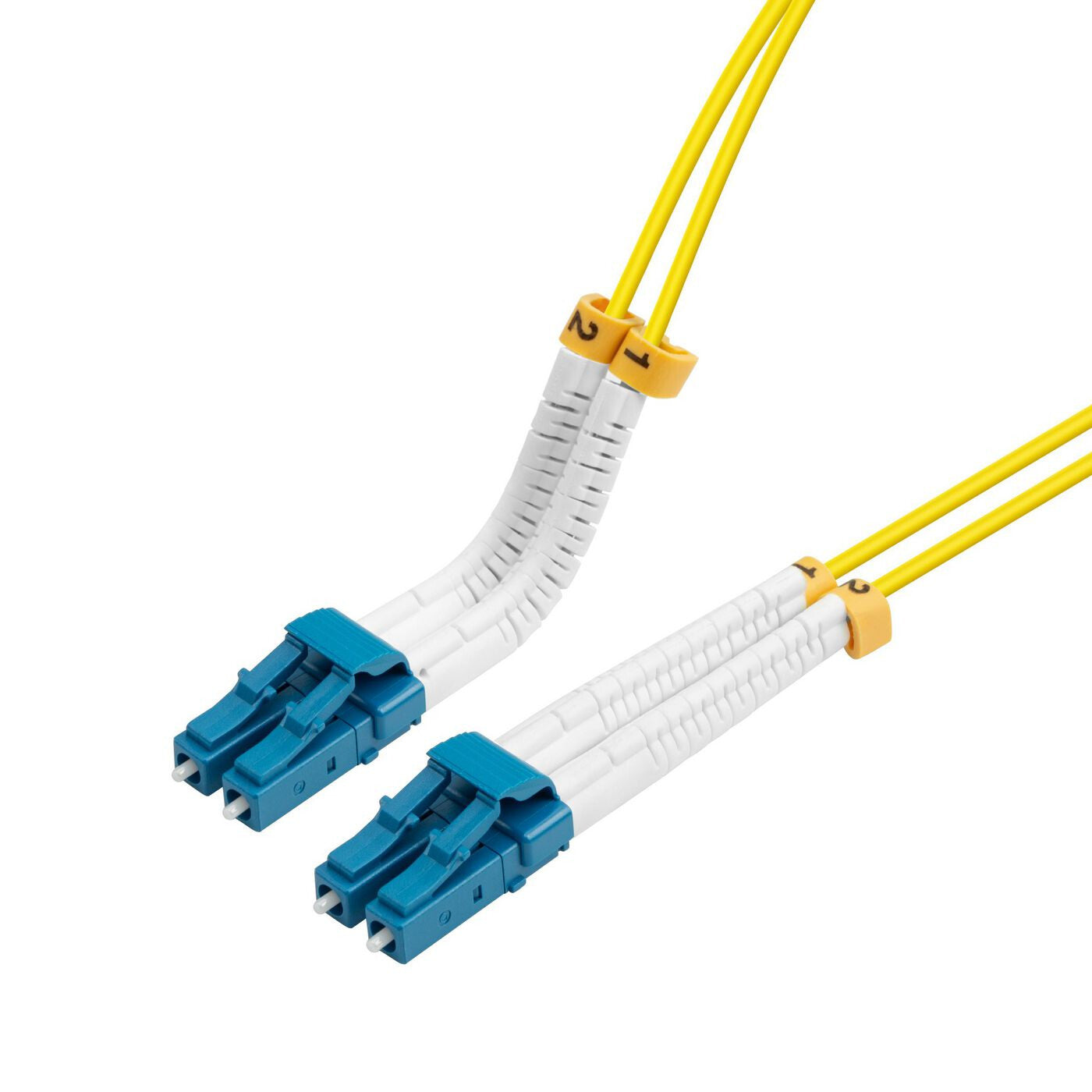

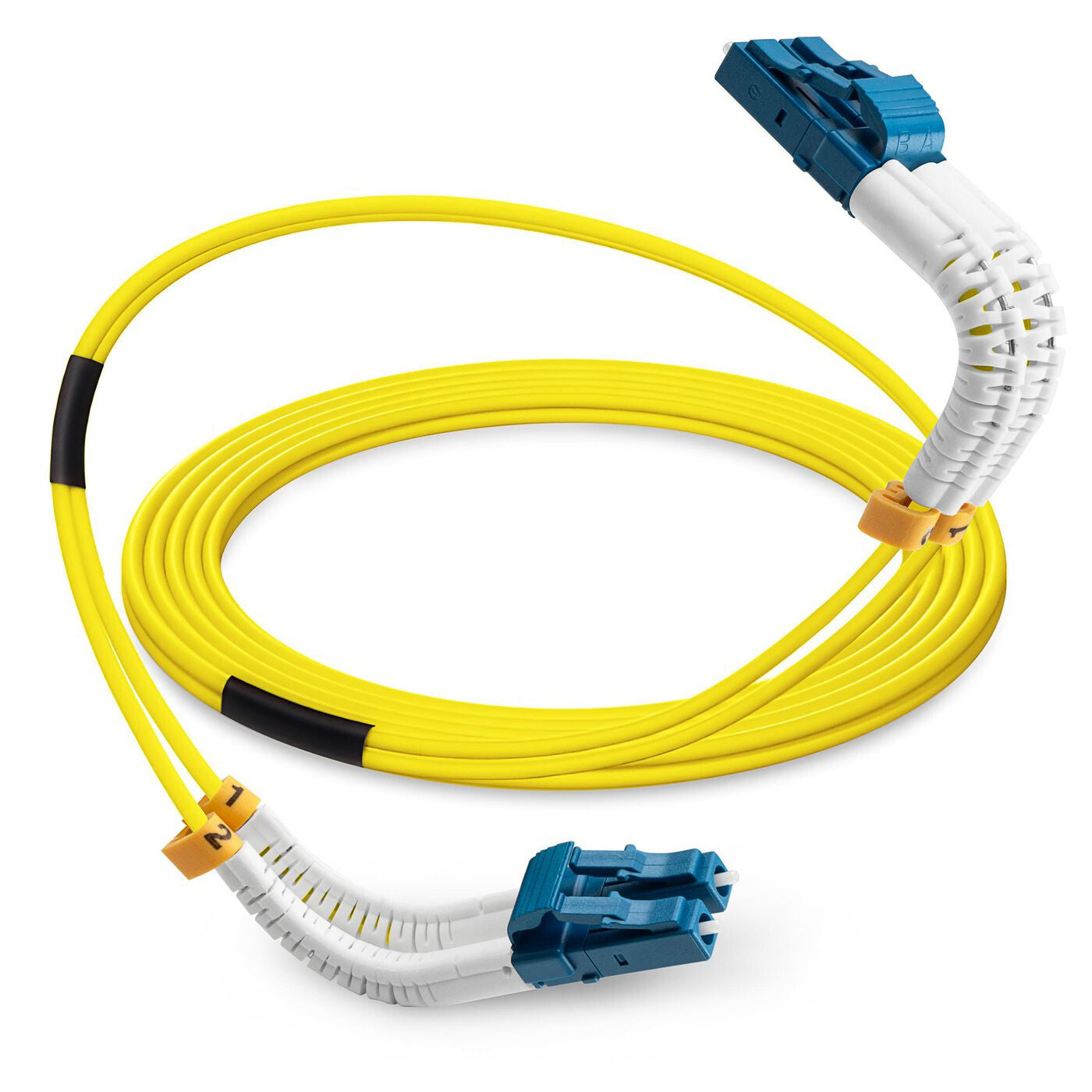

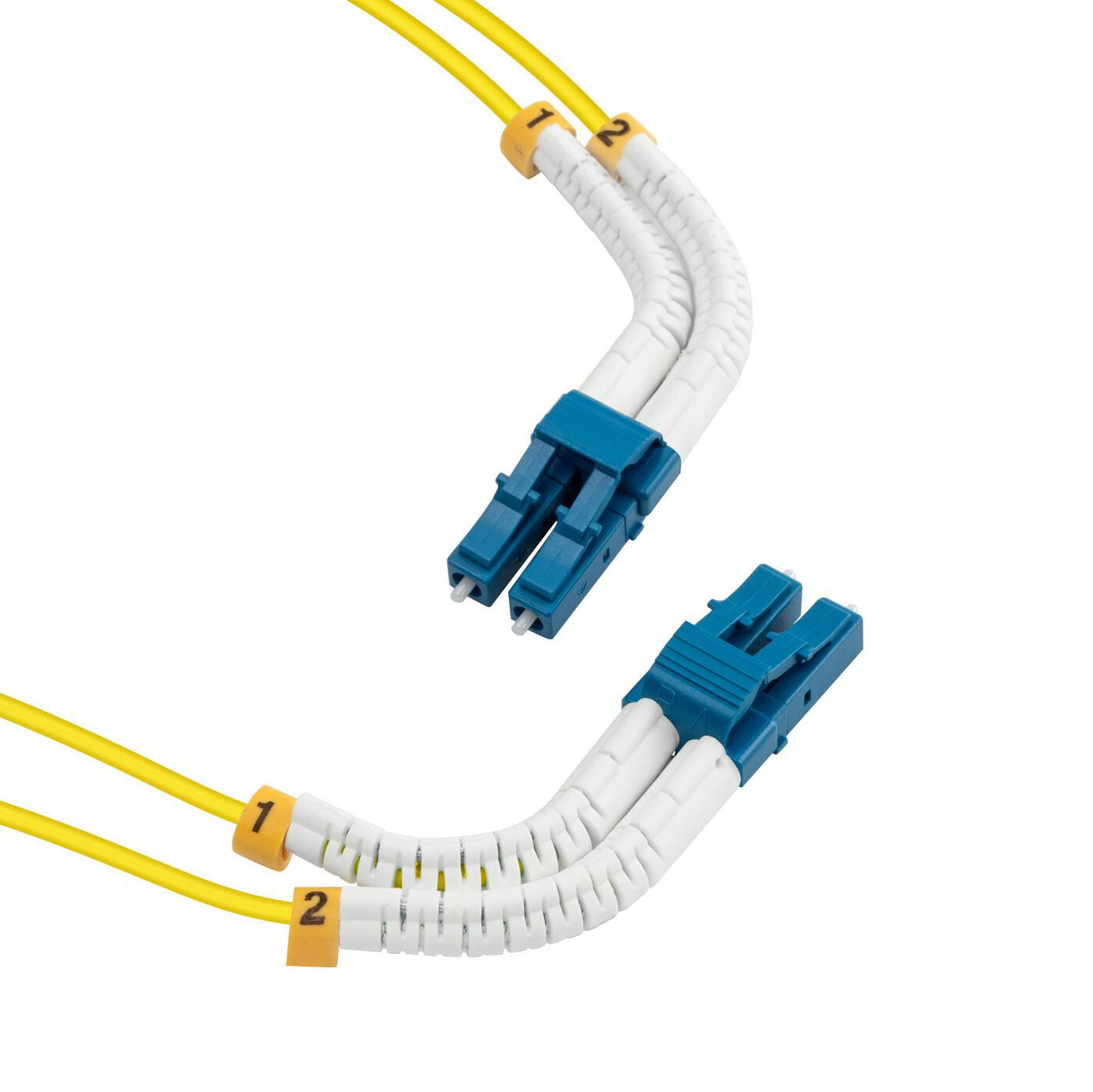

Lanview LVO231408-FLEX InfiniBand/fibre optic cable 3 m LC LC/LC Yellow

Lanview LVO231408-FLEX InfiniBand/fibre optic cable 3 m LC LC/LC Yellow

£10.39 GBP
£10.39 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO231408-FLEX

19 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Yellow
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Cable Diameter 2.0mm
Bendable LC-LC Singlemode fibre cable duplex 3m OS2 LSZH

The Lanview Bendable series is engineered for flexible cable management, able to bend and hold any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.
The design of the boot allows for repositioning at any time or straightening for disconnecting connectors. This adaptability ensures optimal connector placement in challenging conditions, such as tight spaces or high-density environments.

Features
Plug and Play Yes
Jacket material Low smoke zero halogen (LSZH)
Compressive strength 10
Insertion loss 0.3 dB
Return loss 50 dB
Fiber mode structure Single-mode
Cladding diameter 125 µm
Core diameter 9 µm
Full duplex Yes
Product colour Yellow
Connector polish type UPC
Connector 1 gender Male
Connector 2 gender Male
Connector 2 LC
Connector 1 LC
Cable shape Round
Fibre optic type OS2
Cable type LC/LC
Cable length 3 m
Technical details
Compliance certificates REACH, RoHS
Doesn't contain Halogen
Warranty period 25 year(s)
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Bending radius 3 cm
Weight 80 g
Cable diameter 2 mm
Packaging data
Package weight 80 g
Package height 200 mm
Package depth 40 mm
Package width 180 mm
View full details
