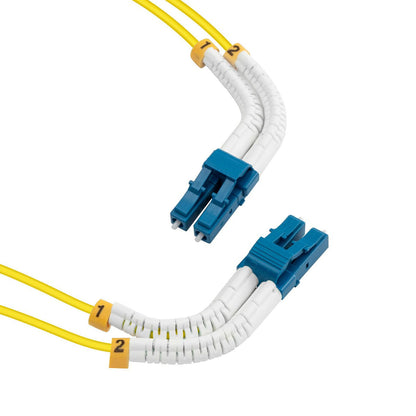

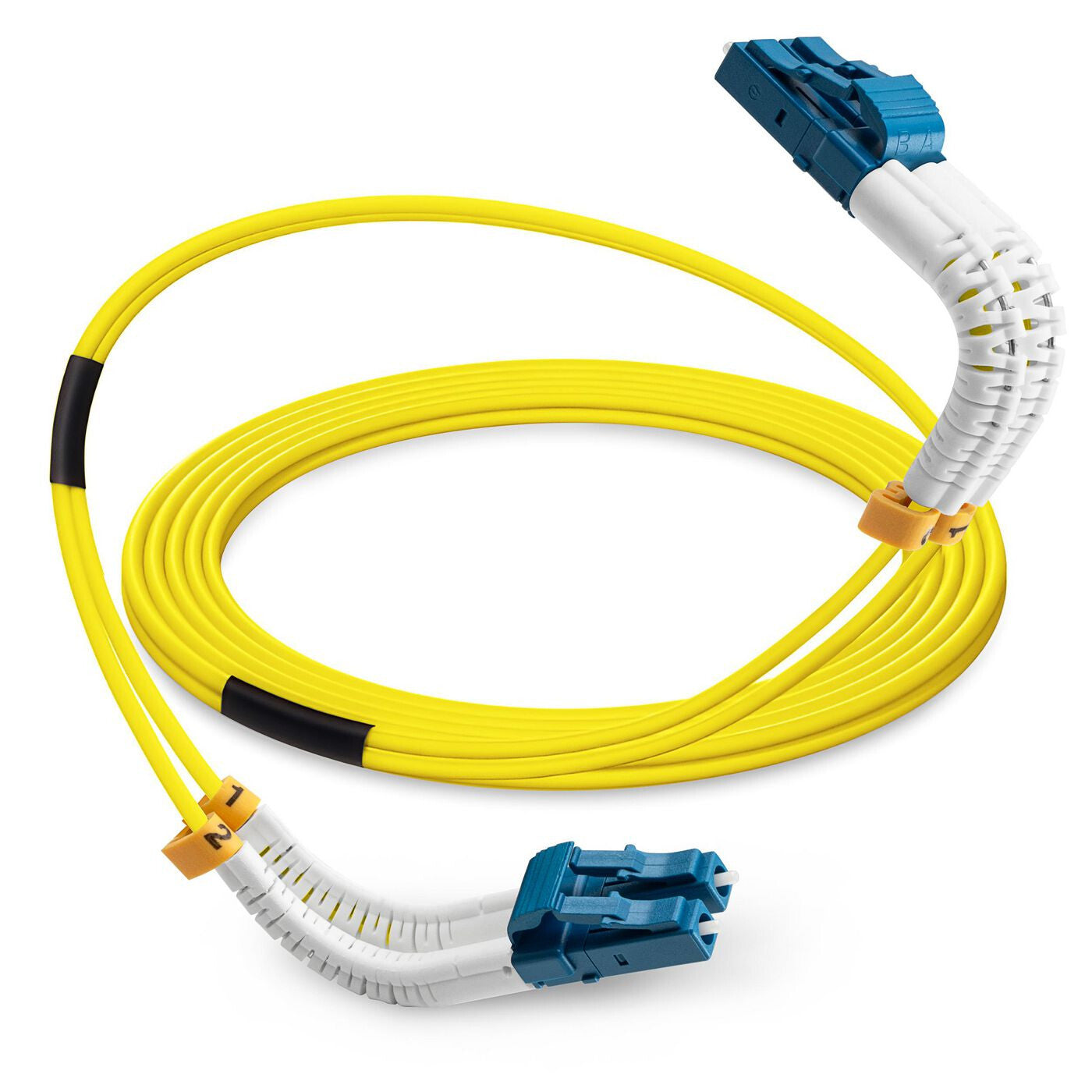

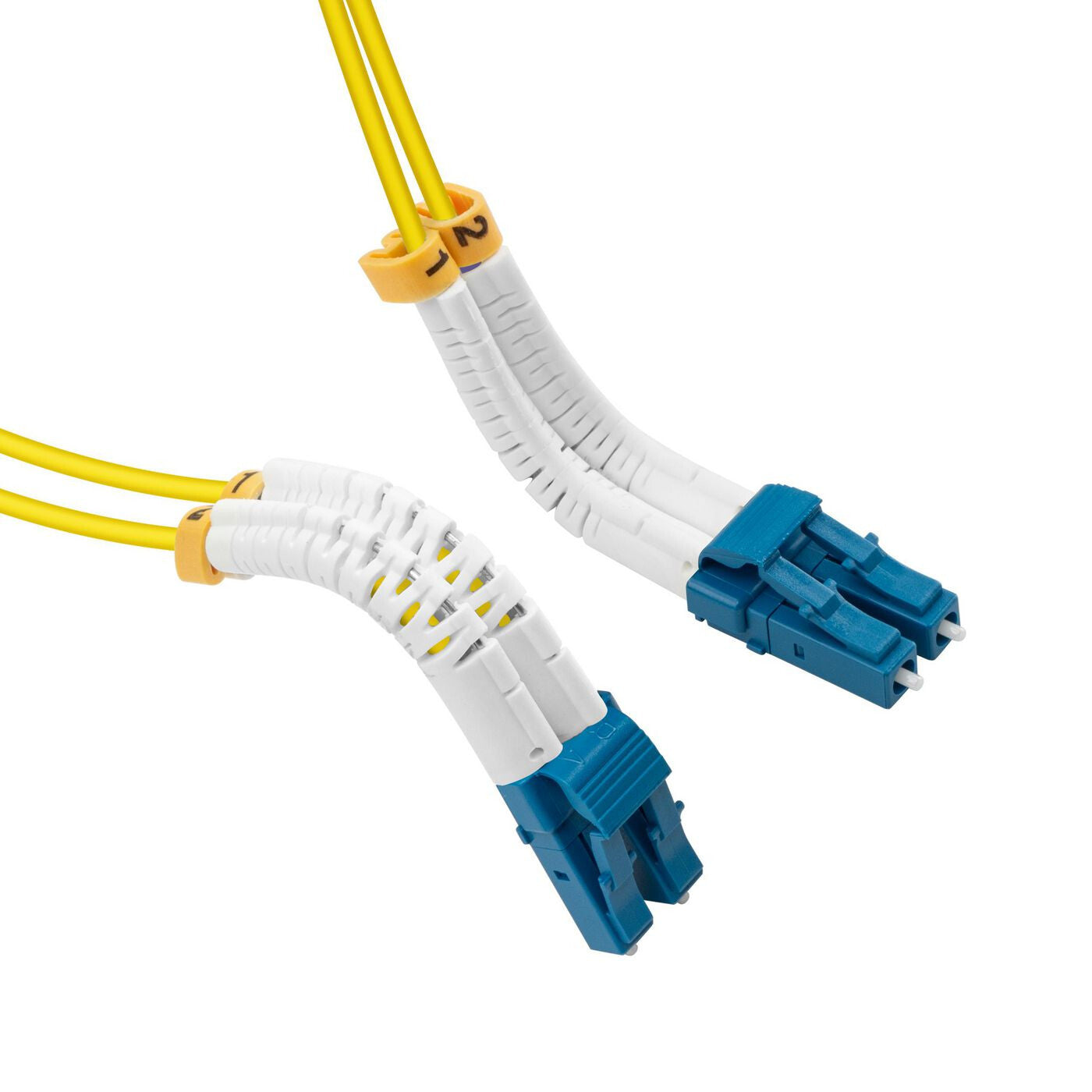

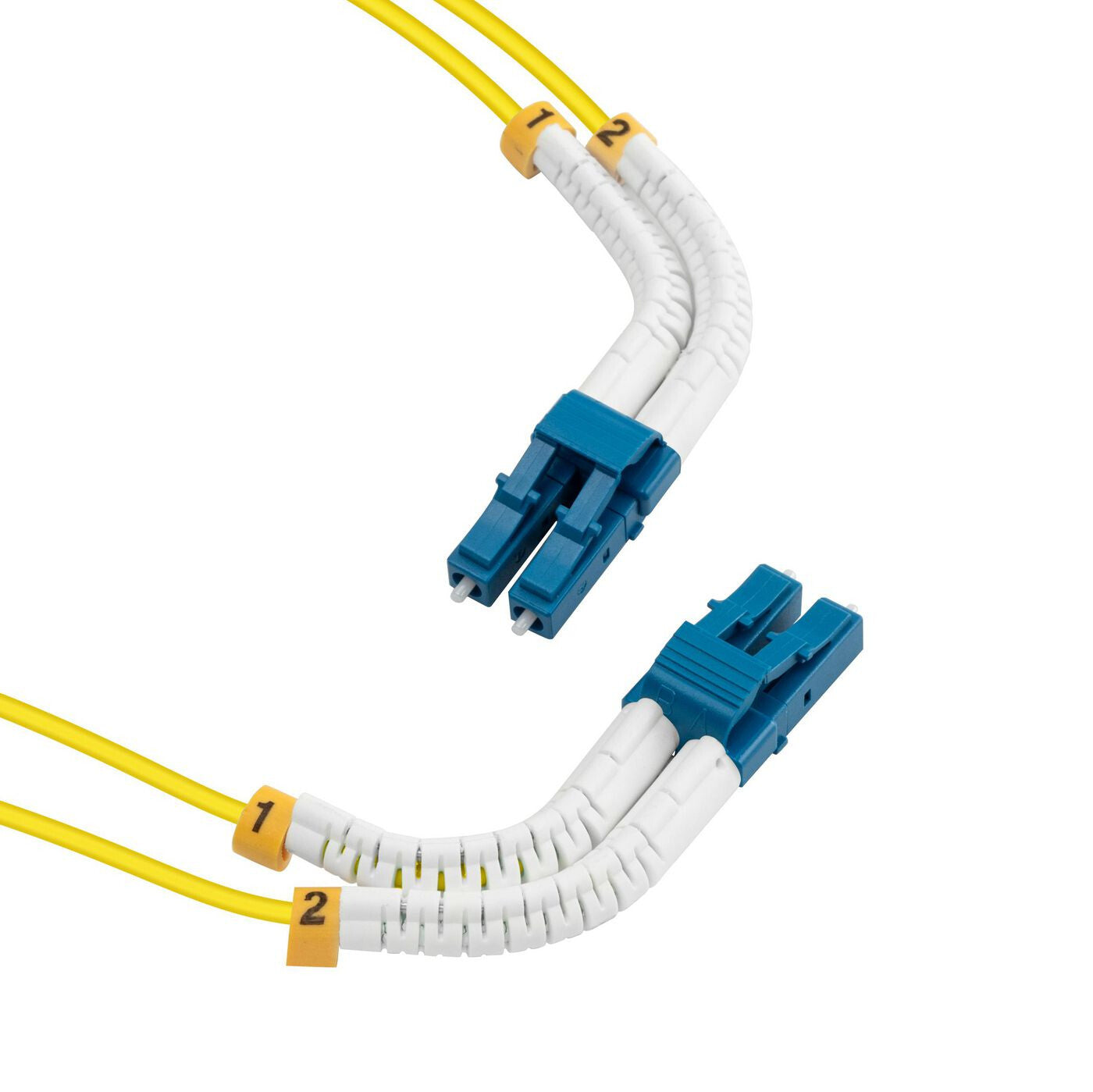

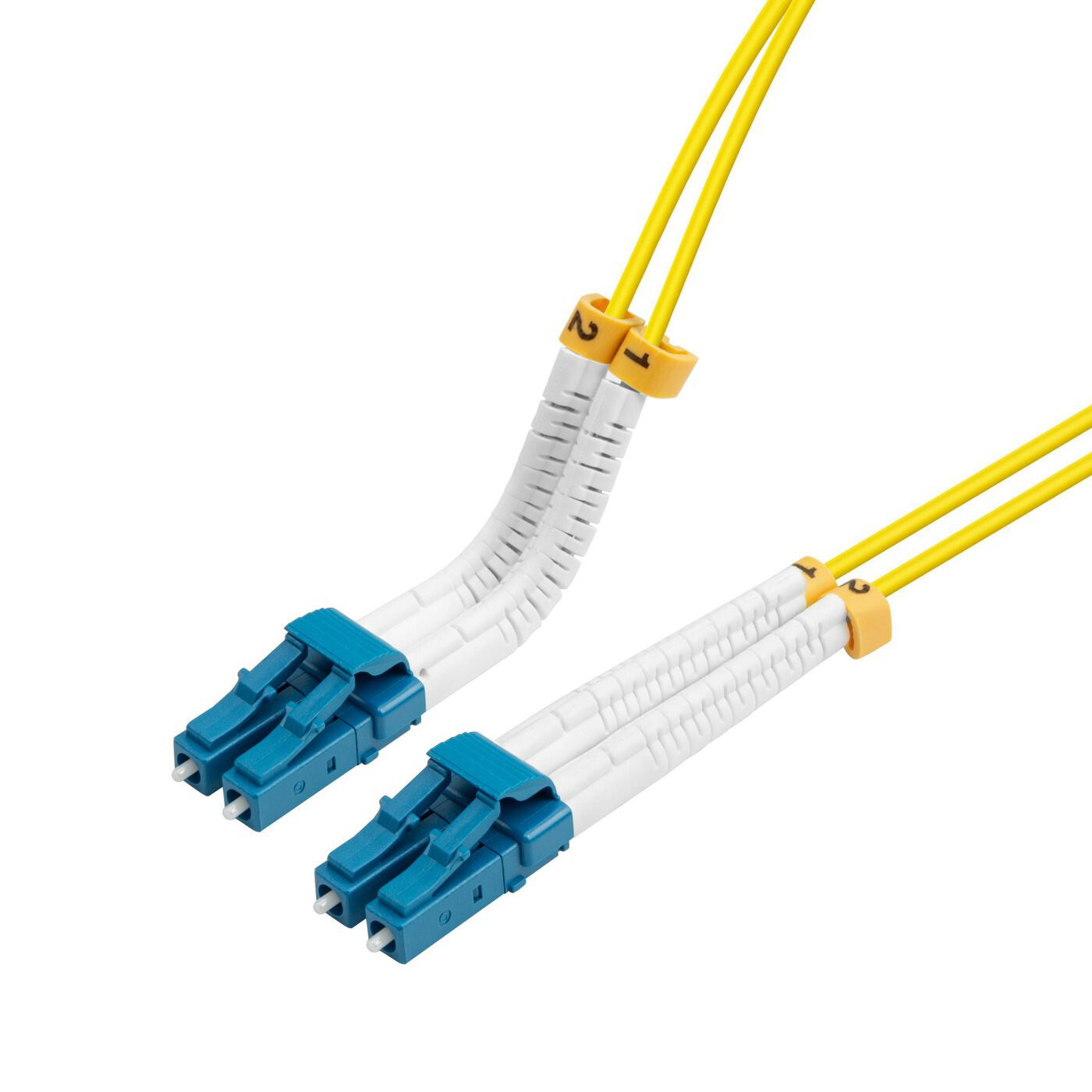

Lanview LVO231407-FLEX InfiniBand/fibre optic cable 2 m LC Yellow

Lanview LVO231407-FLEX InfiniBand/fibre optic cable 2 m LC Yellow

£9.66 GBP
£9.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO231407-FLEX

99 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Yellow
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Diameter 2.0mm
  • Fibre Standard G.652.D
Bendable LC-LC Singlemode fibre cable duplex 2m OS2 LSZH

The Lanview Bendable series offers a versatile solution for cable management, capable of bending and sustaining any angle from a straight line up to 90 degrees. Its boot, molded around a single stainless-steel wire, is manually adjustable, allowing the internal wire to preserve the chosen angle or direction.
The boot's design permits reshaping at any moment or straightening for the disconnection of connectors. This flexibility guarantees ideal connector installation in unique circumstances, like areas with restricted space or within high-density settings.

Features
Cable length 2 m
Fibre optic type OS2
Connector 1 LC
Connector 2 LC
Connector gender Male/Male
Connector 2 gender Male
Connector 1 gender Male
Connector polish type UPC
Product colour Yellow
Full duplex Yes
Core diameter 9 µm
Cladding diameter 125 µm
Fiber mode structure Single-mode
Return loss 50 dB
Insertion loss 0.3 dB
Compressive strength 10
Plug and Play Yes
Technical details
Doesn't contain Halogen
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 40 g
Bending radius 3 cm
Packaging data
Package width 180 mm
Package depth 40 mm
Package height 200 mm
Package weight 40 g
Other features
Core / cladding diameter 9/125 µm
