Lanview

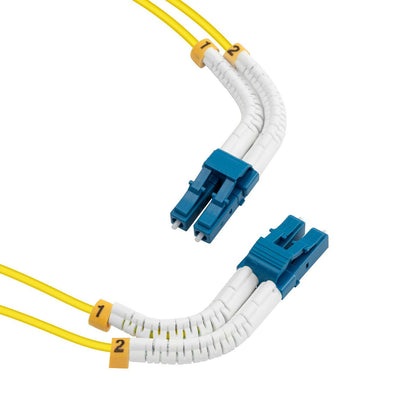

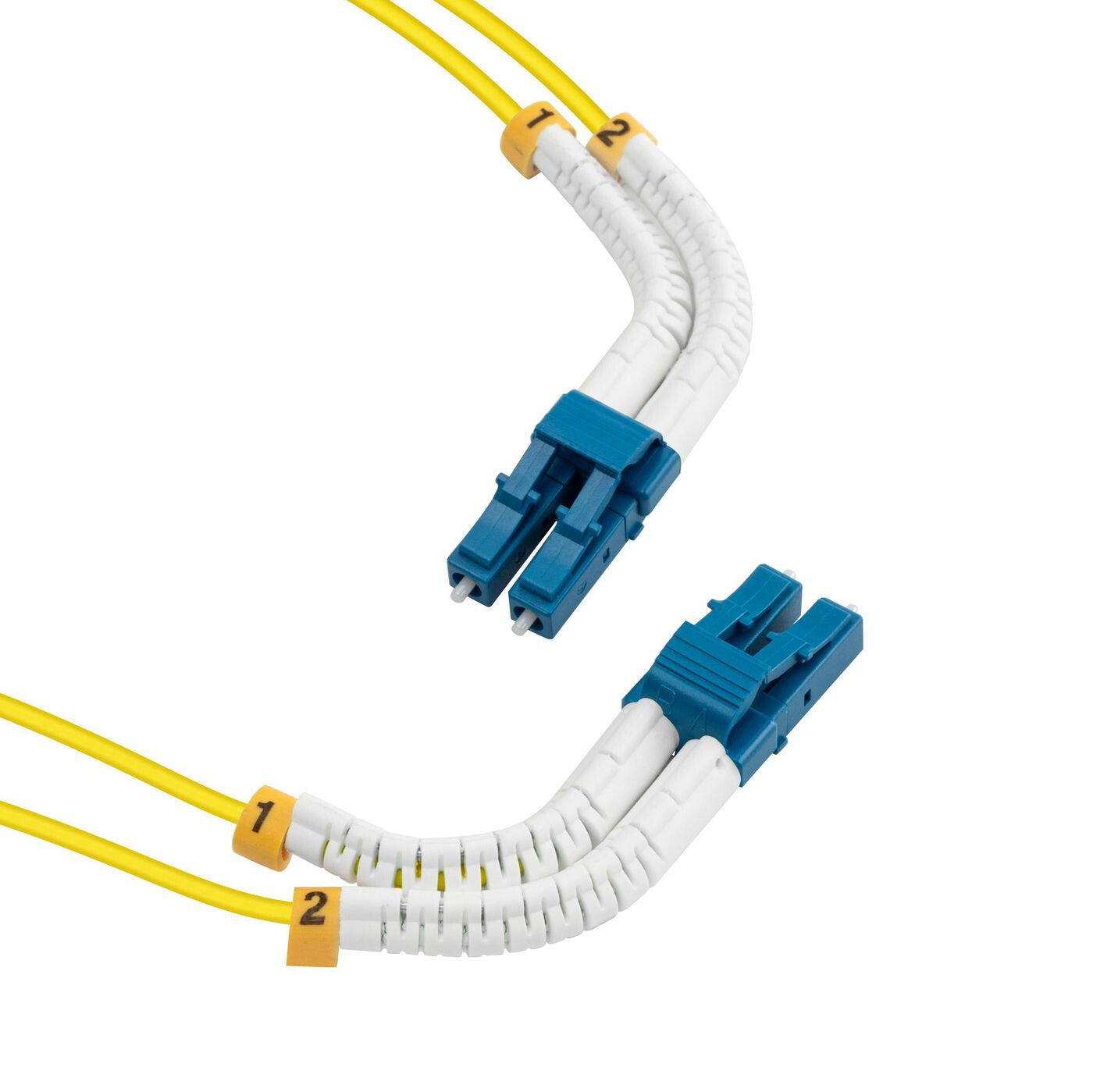

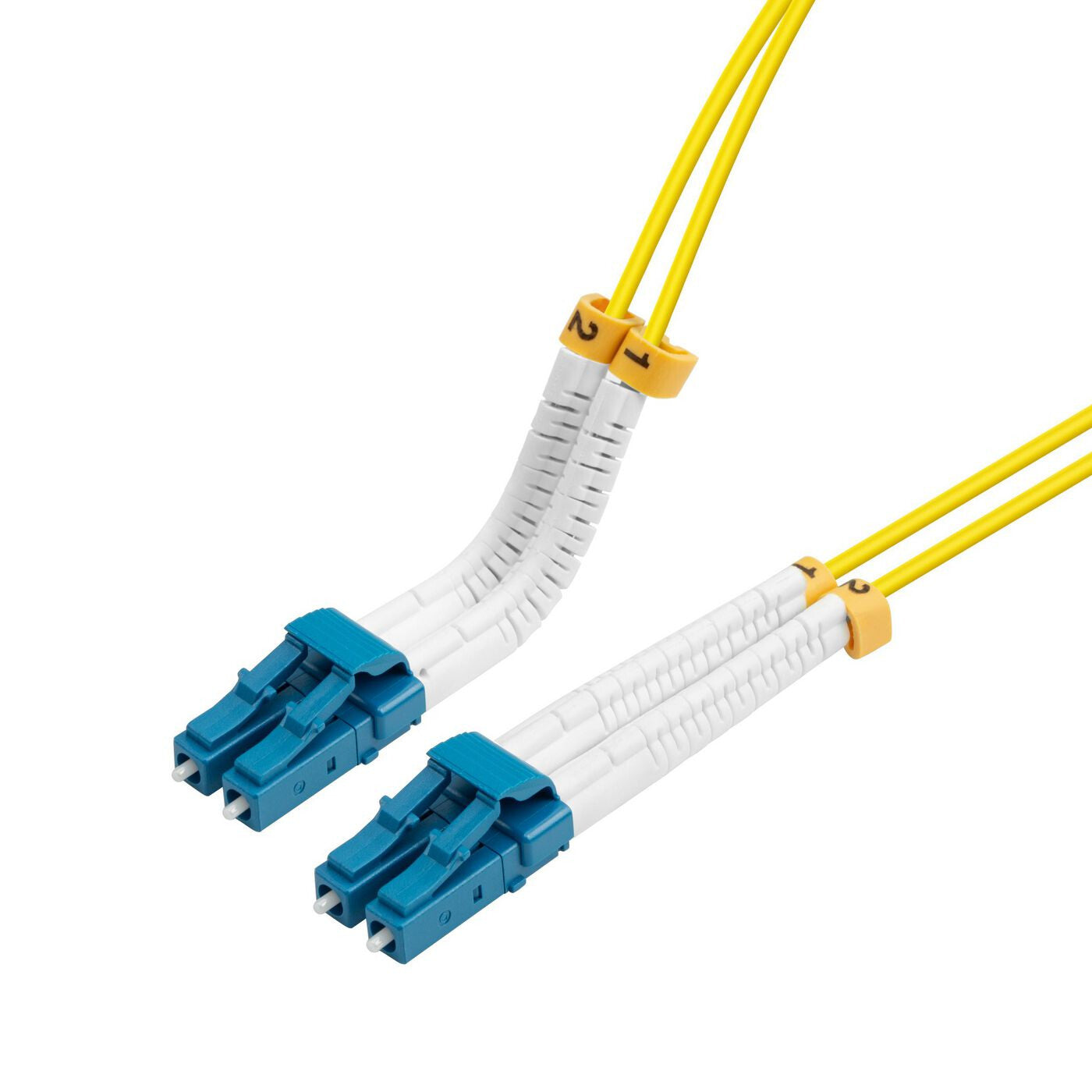

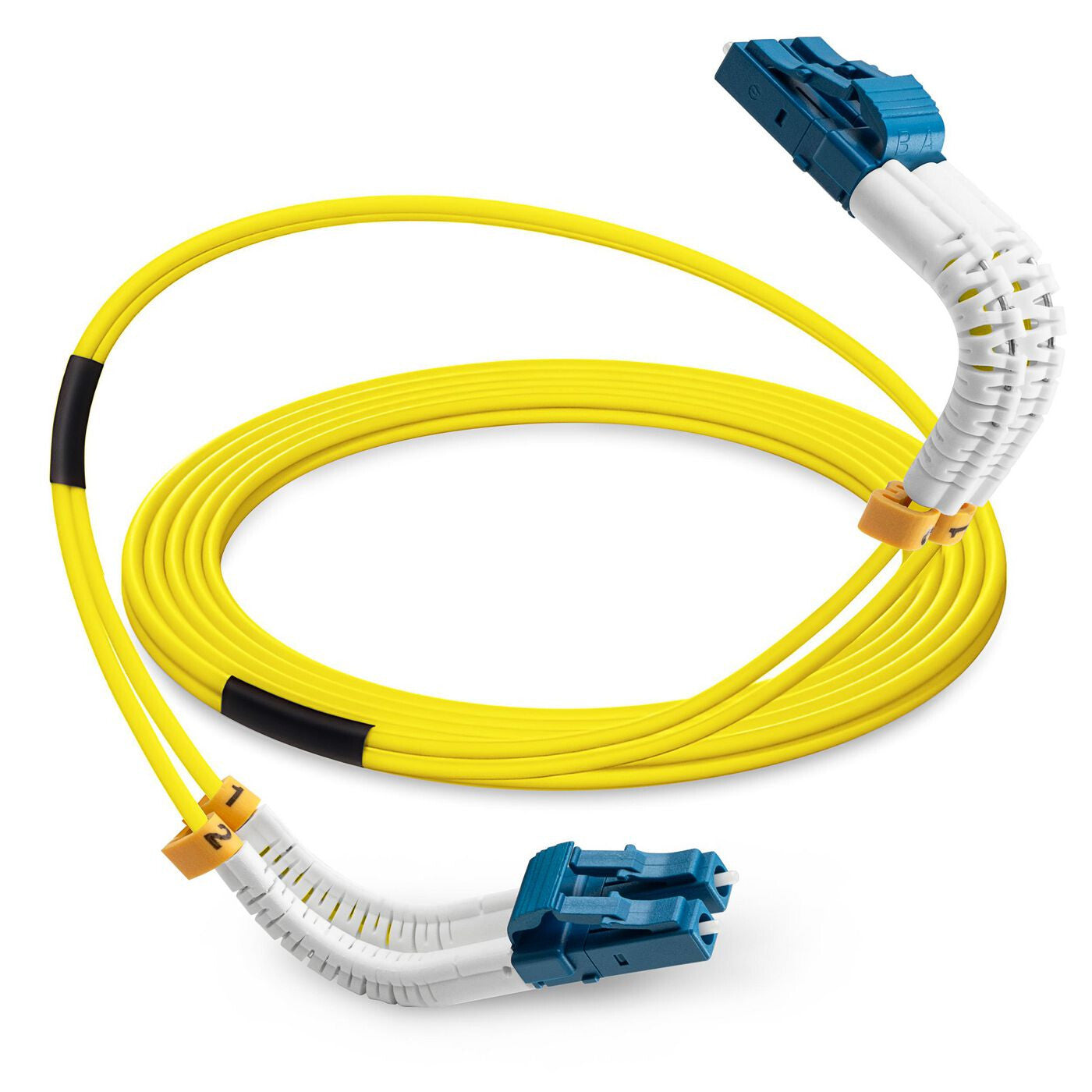

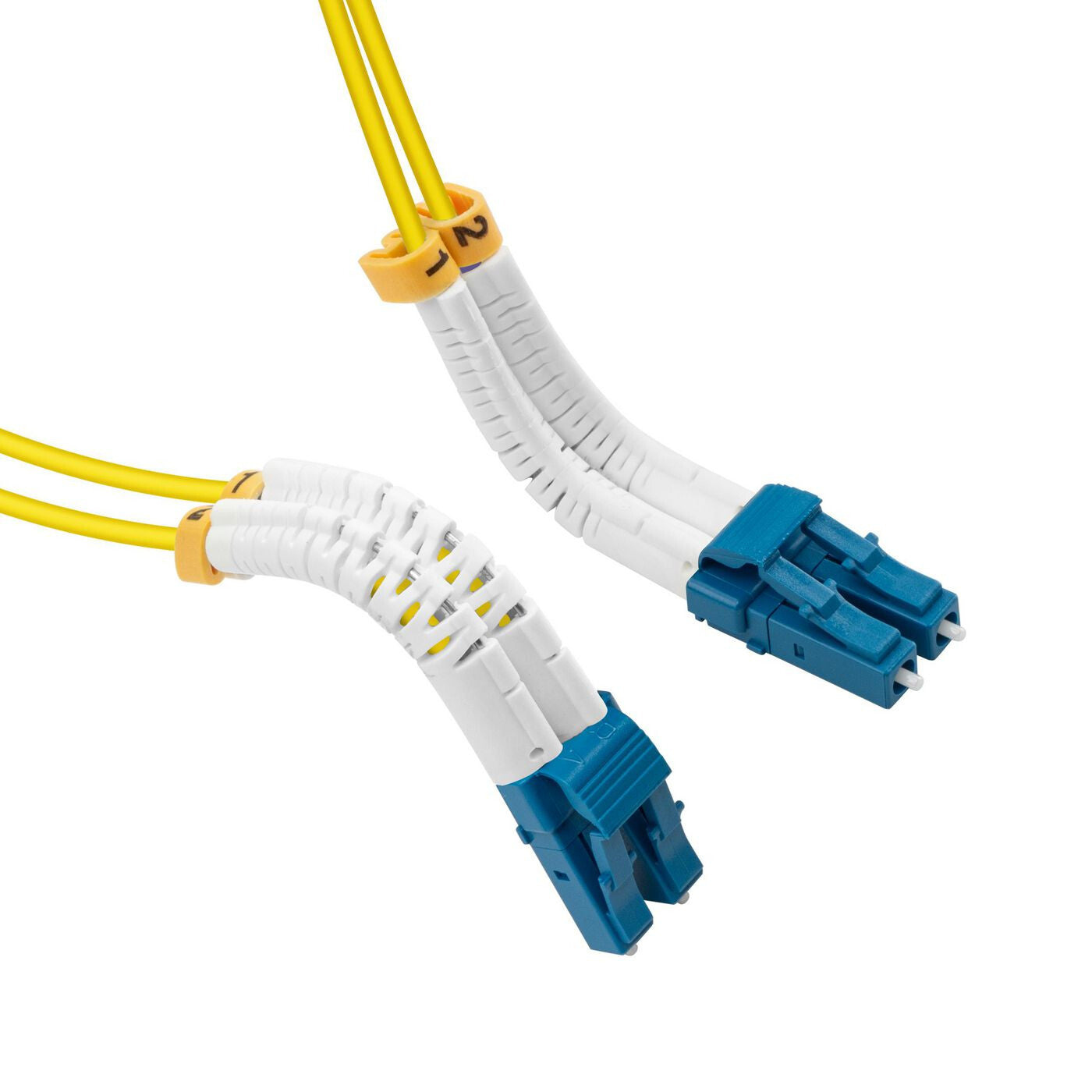

Lanview LVO231406-FLEX InfiniBand/fibre optic cable 1 m LC Yellow

Lanview LVO231406-FLEX InfiniBand/fibre optic cable 1 m LC Yellow

LVO231406-FLEX

£9.11 GBP£7.59 GBP
£0.00 GBP £9.11 GBP£7.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

90 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Yellow
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Diameter 2.0mm
  • Fibre Standard G.652.D
Bendable LC-LC Singlemode fibre cable duplex 1m OS2 LSZH

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, can be effortlessly positioned by hand, while the internal wire guarantees it retains the chosen angle or direction.
The boot can be reformed at any moment or straightened for disconnecting connectors. This feature allows for optimal installation of the connector in specialized scenarios, including areas with tight constraints or in high-density settings.

Features
Cable length 1 m
Fibre optic type OS2
Connector 1 LC
Connector 2 LC
Connector gender Male/Male
Connector 2 gender Male
Connector 1 gender Male
Connector polish type UPC
Product colour Yellow
Full duplex Yes
Cladding diameter 125 µm
Fiber mode structure Single-mode
Return loss 50 dB
Insertion loss 0.3 dB
Compressive strength 10
Jacket material Low smoke zero halogen (LSZH)
Plug and Play Yes
Technical details
Doesn't contain Halogen
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 20 g
Bending radius 3 cm
Packaging data
Package width 180 mm
Package depth 40 mm
Package height 200 mm
Package weight 20 g
Other features
Core / cladding diameter 9/125 µm
