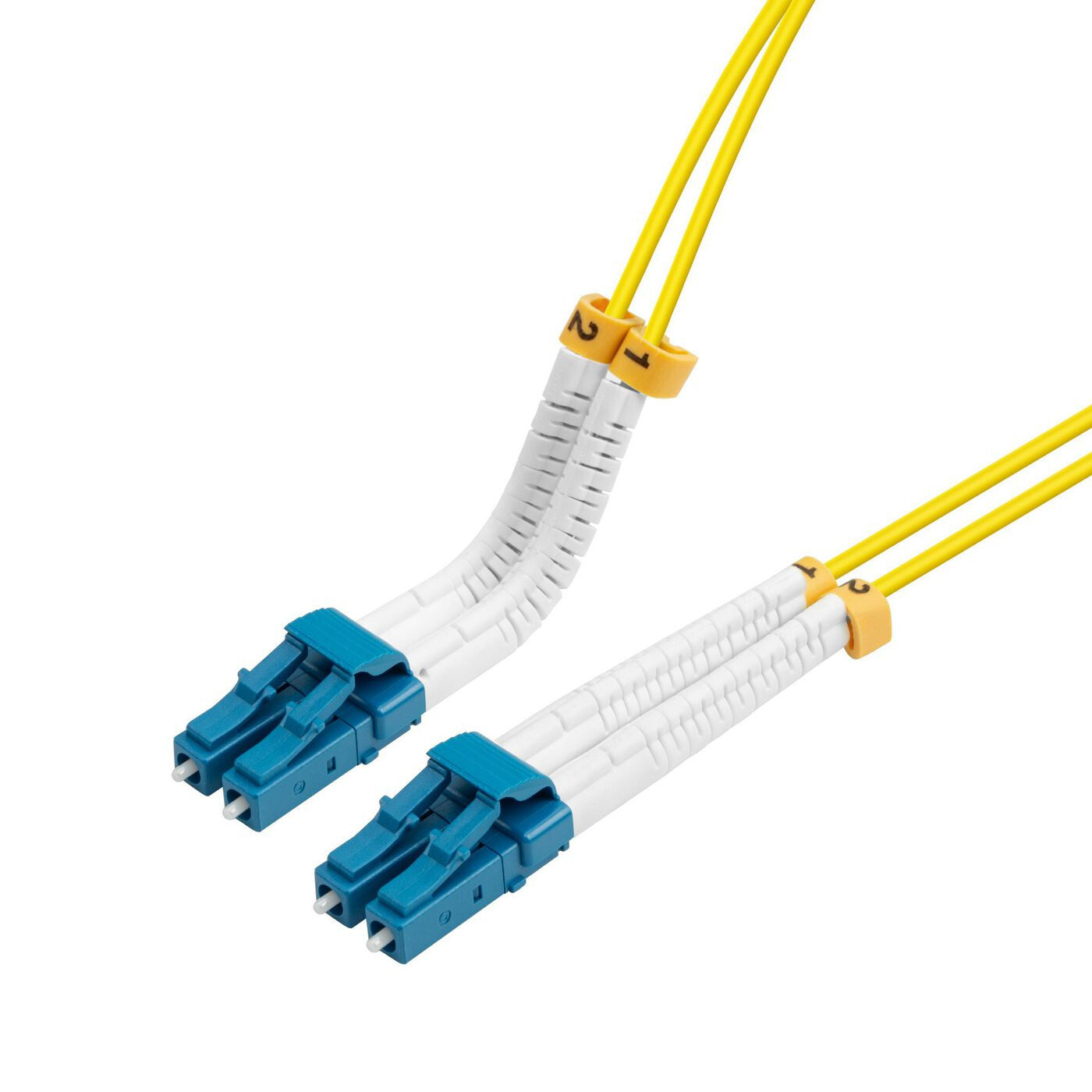

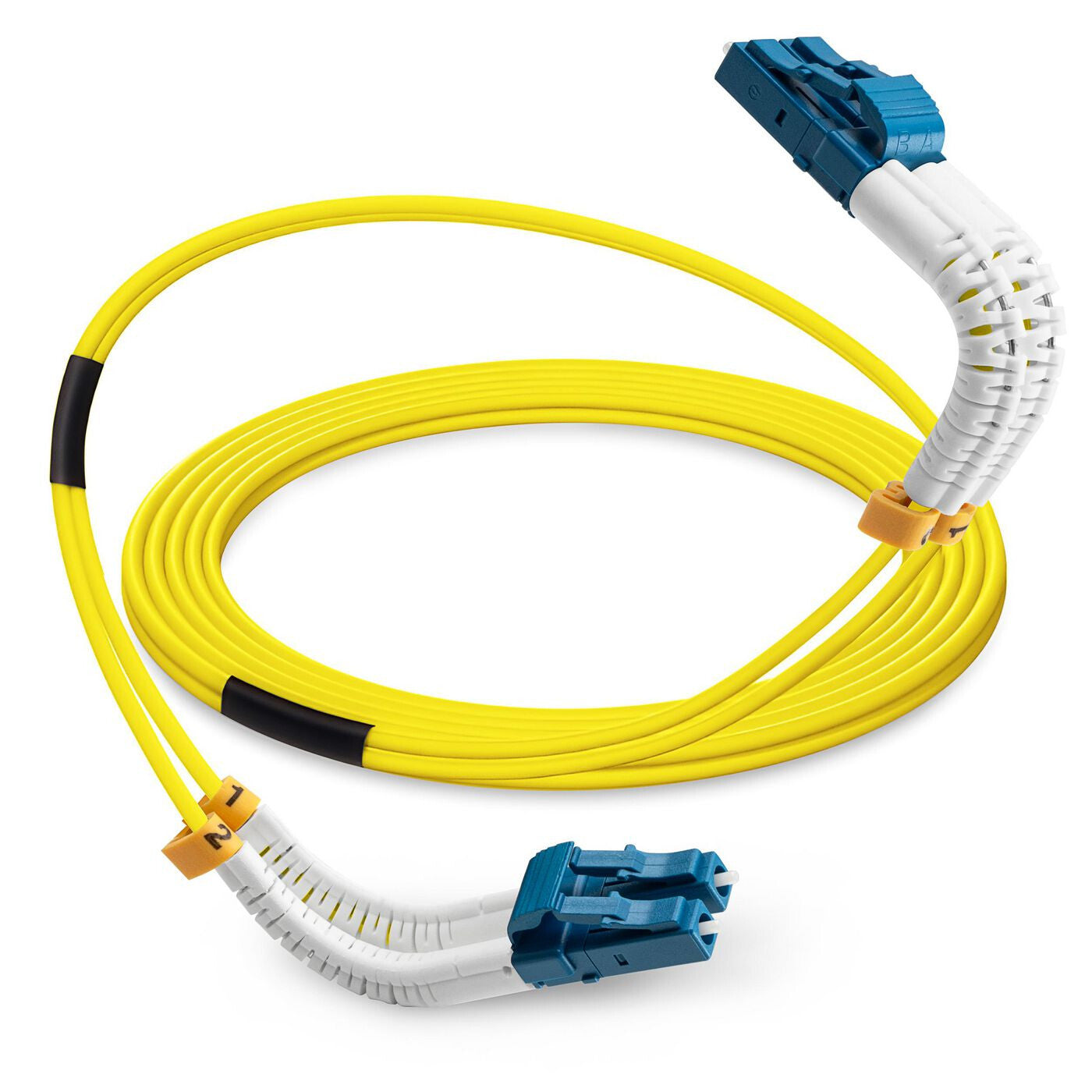

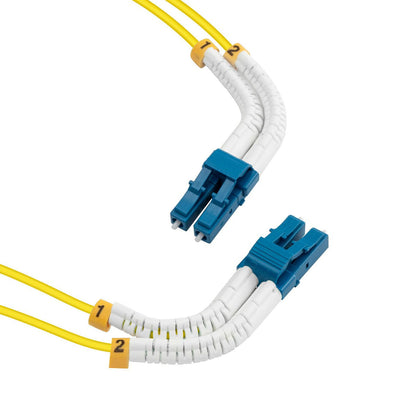

Lanview LVO2314005-FLEX InfiniBand/fibre optic cable 0.5 m LC Yellow

Lanview LVO2314005-FLEX InfiniBand/fibre optic cable 0.5 m LC Yellow

LVO2314005-FLEX

£8.92 GBP£7.43 GBP
£0.00 GBP £8.92 GBP£7.43 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

63 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Yellow
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Diameter 2.0mm
  • Fibre Standard G.652.D
Bendable LC-LC Singlemode fibre cable duplex 0,5m OS2 LSZH

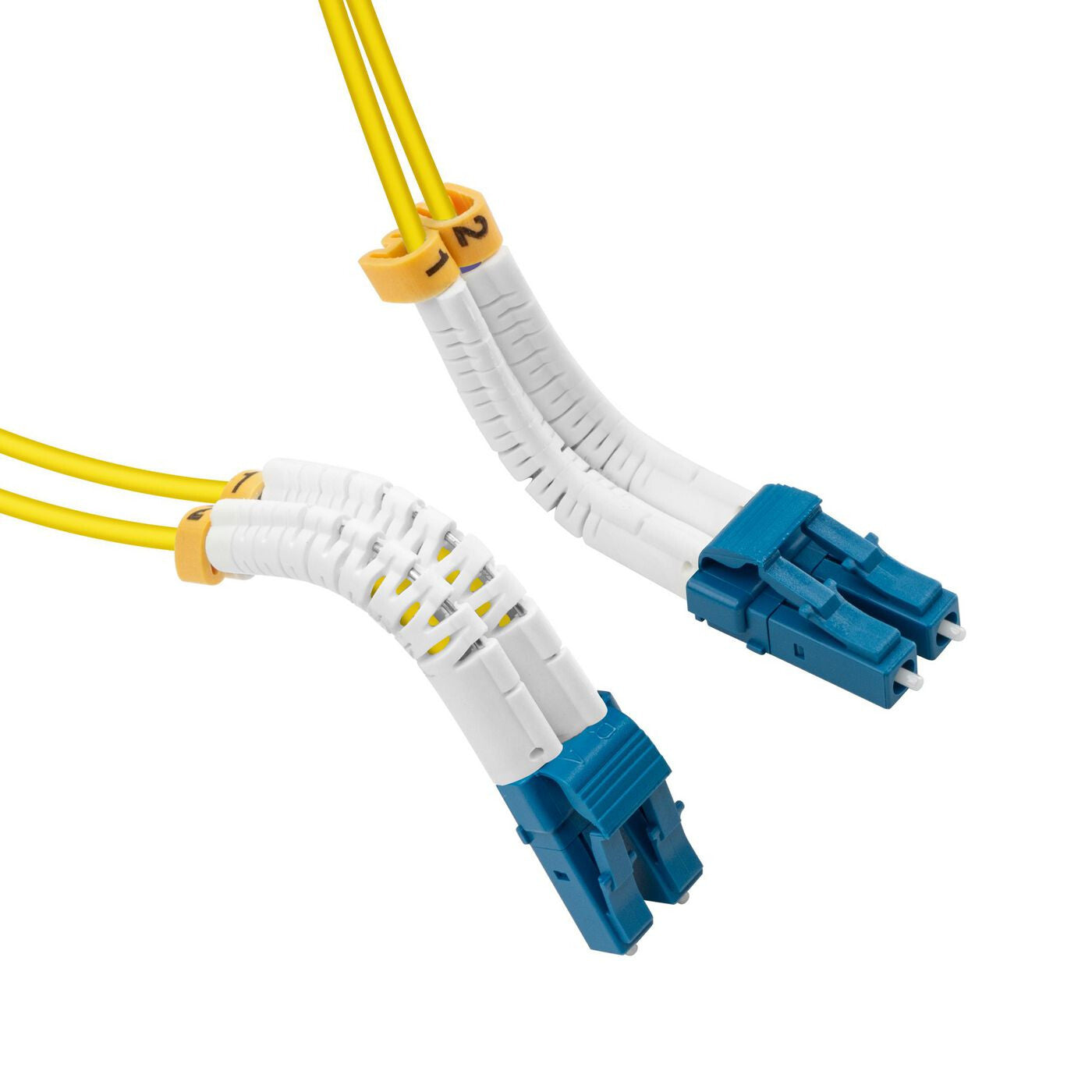

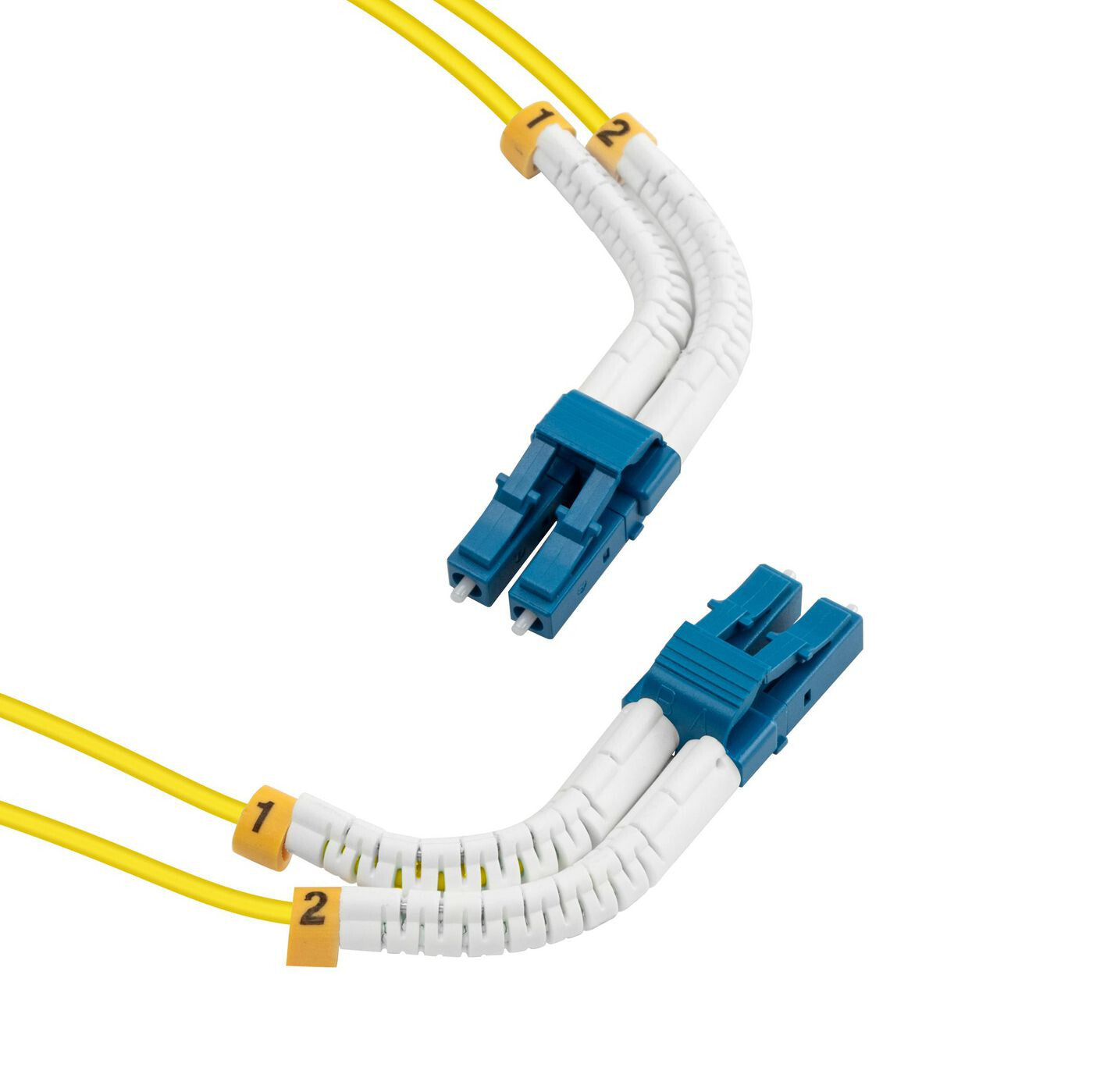

The Lanview Bendable series is designed for flexible cable management, able to bend and hold any angle from a straight line to 90 degrees. The boot, shaped over a single stainless-steel wire, can be effortlessly positioned by hand, while the internal wire guarantees it retains the chosen angle or direction.
the boot can be reshaped at any time or straightened for connector disconnect. This enables perfect installation of the connector in unique applications such as, tight constraint areas or high density environments.

Features
Cable length 0.5 m
Fibre optic type OS2
Connector 1 LC
Connector 2 LC
Connector gender Male/Male
Connector 2 gender Male
Connector 1 gender Male
Connector polish type UPC
Product colour Yellow
Full duplex Yes
Core diameter 9 µm
Cladding diameter 125 µm
Fiber mode structure Single-mode
Return loss 50 dB
Insertion loss 0.3 dB
Compressive strength 10
Jacket material Low smoke zero halogen (LSZH)
Plug and Play Yes
Technical details
Doesn't contain Halogen
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 10 g
Bending radius 3 cm
Packaging data
Package width 180 mm
Package depth 40 mm
Package height 200 mm
Package weight 10 g
Other features
Connector(s) LC
Core / cladding diameter 9/125 µm
