Lanview LVO231301-FLEX InfiniBand/fibre optic cable 2 m LC Aqua colour

Lanview LVO231301-FLEX InfiniBand/fibre optic cable 2 m LC Aqua colour

£10.60 GBP
£10.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO231301-FLEX

41 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Aqua
  • Bending radius: 30mm
  • LC/UPC Connector
  • Cable Diameter 2.0mm
  • Fibre Standard G.652.D

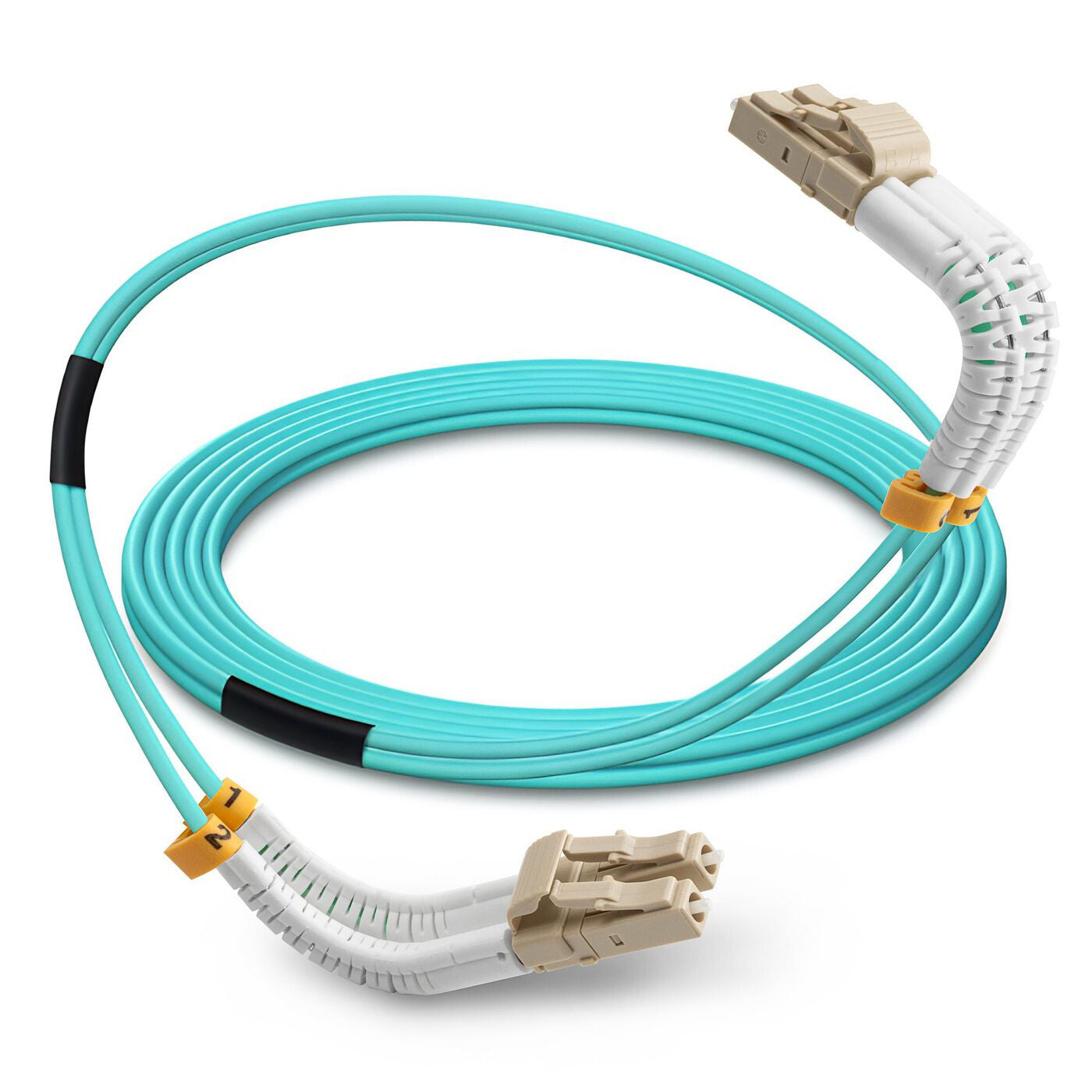

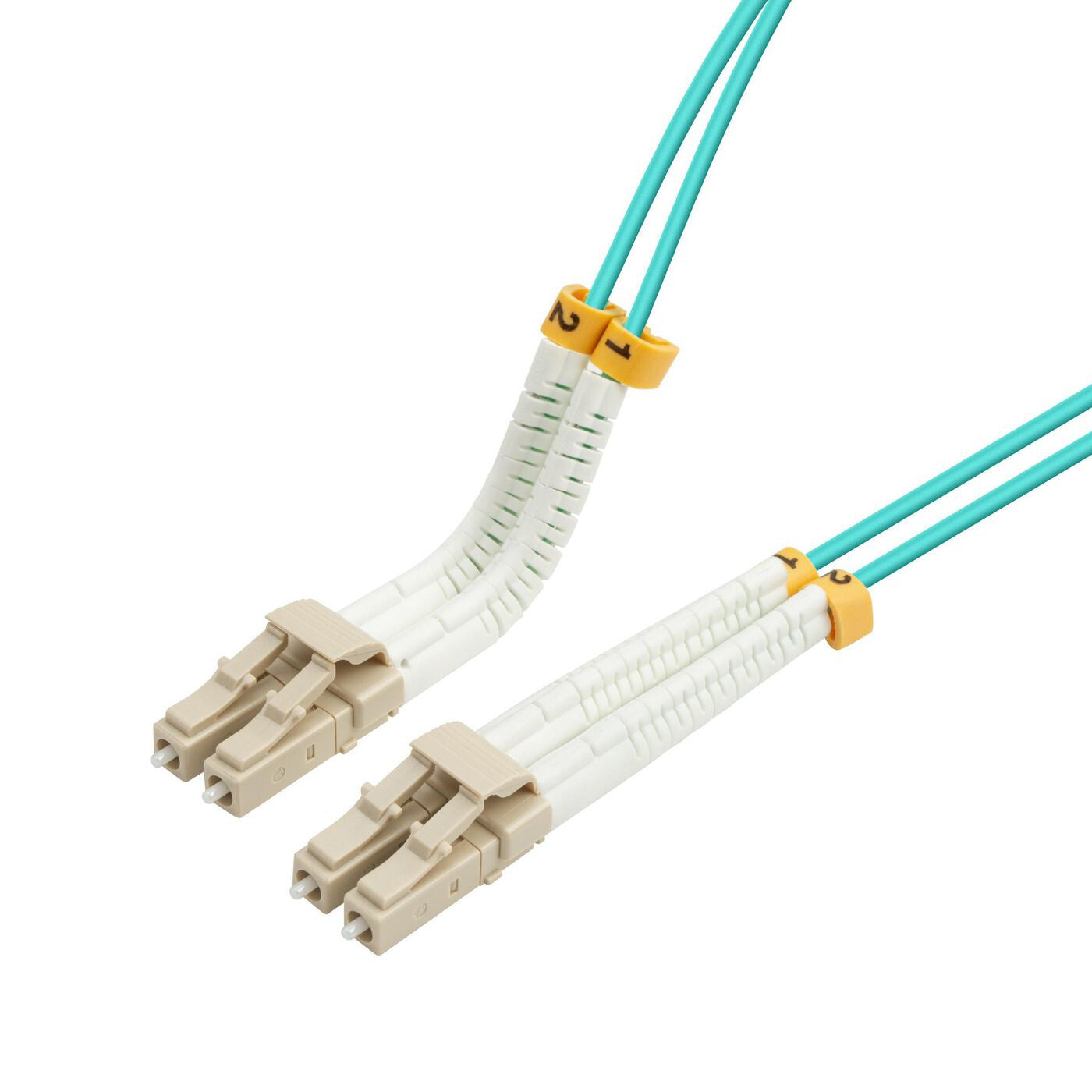

Bendable LC-LC Multimode fibre cable duplex 2m OM3 LSZH

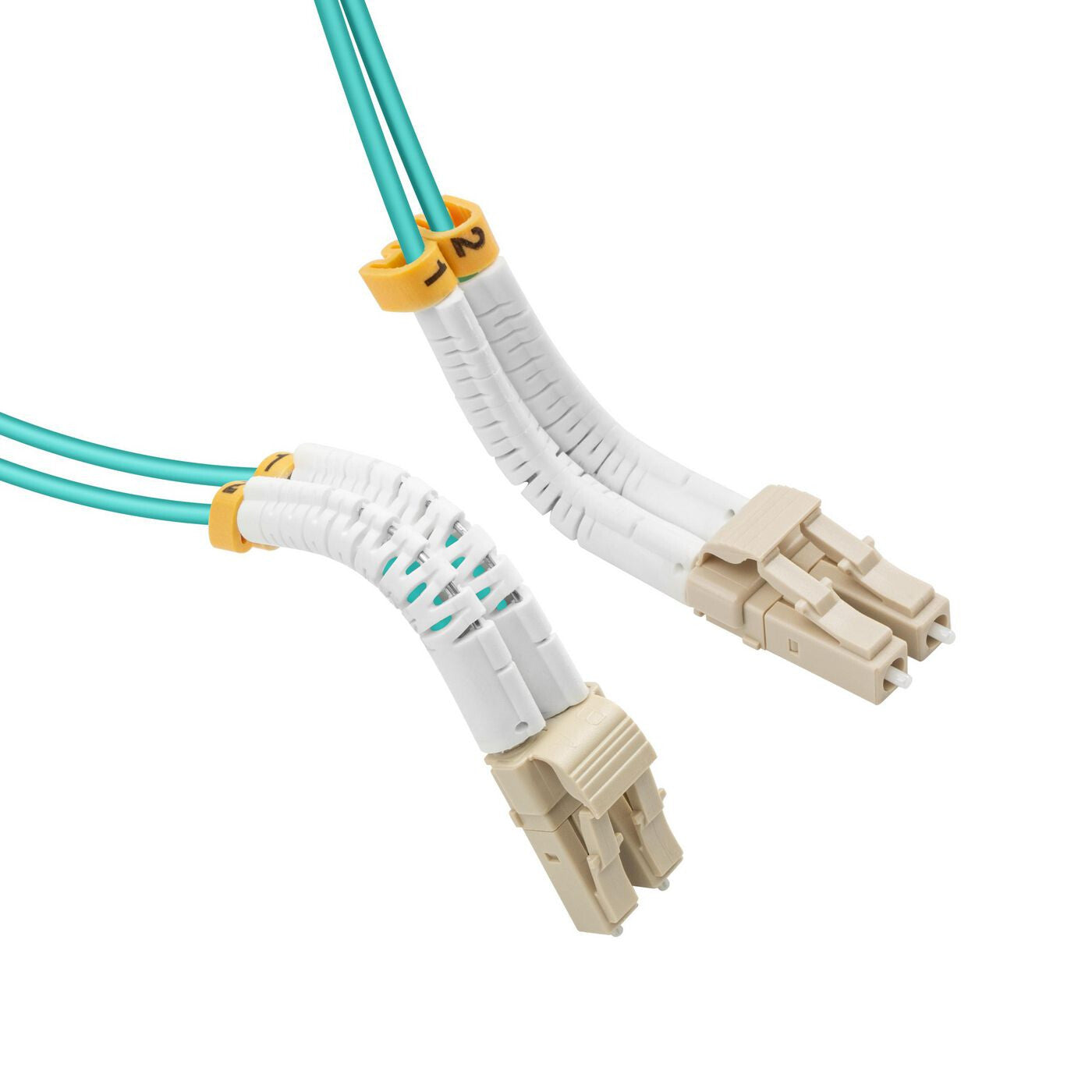

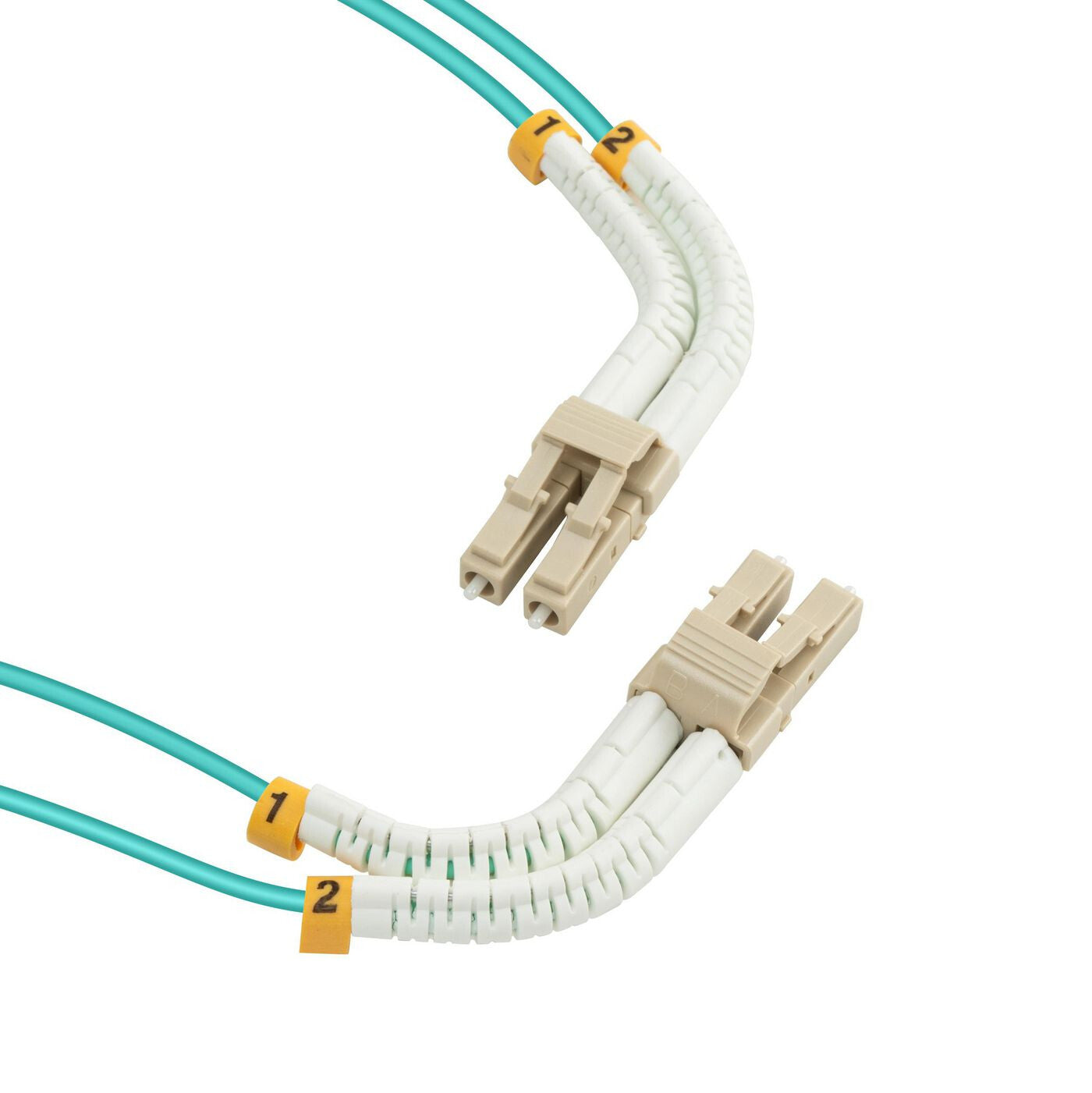

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.
The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.

Features
Cable length 2 m
Fibre optic type OM3
Connector 1 LC
Connector 2 LC
Connector gender Male/Male
Connector 2 gender Male
Connector 1 gender Male
Connector polish type UPC
Product colour Aqua colour
Full duplex Yes
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Wavelengths supported 850 nm
Return loss 50 dB
Insertion loss 0.3 dB
Compressive strength 10
Jacket material Low smoke zero halogen (LSZH)
Plug and Play Yes
Technical details
Doesn't contain Halogen
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Cable diameter 2 mm
Weight 40 g
Bending radius 3 cm
Packaging data
Package width 150 mm
Package depth 50 mm
Package height 200 mm
Package weight 40 g
Other features
Core / cladding diameter 50/125 µm
