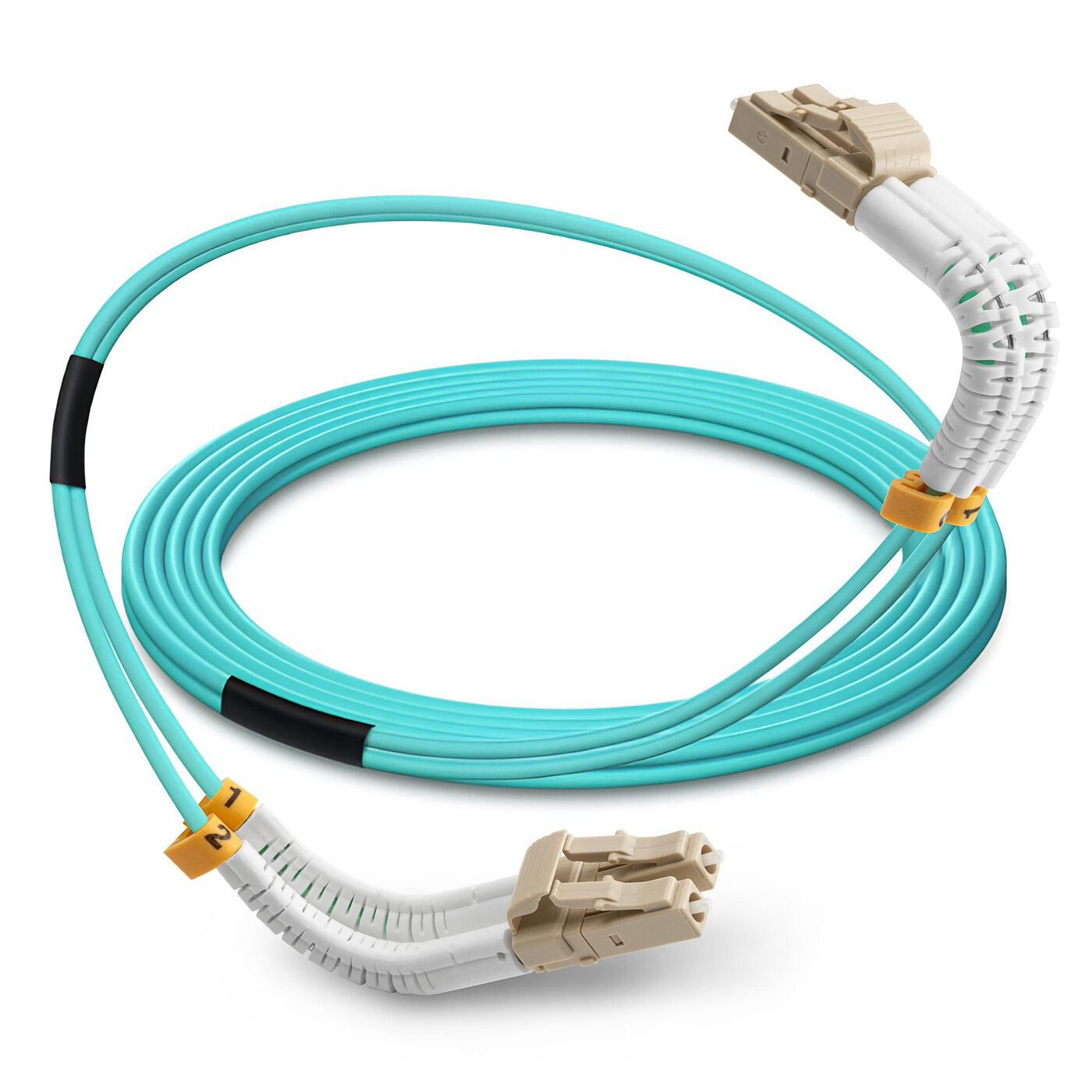

Lanview LVO231205-FLEX InfiniBand/fibre optic cable 5 m LC LC/LC Aqua colour

Lanview LVO231205-FLEX InfiniBand/fibre optic cable 5 m LC LC/LC Aqua colour

£13.39 GBP
£13.39 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO231205-FLEX

20 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • Color: Aqua
  • Bending radius: 30 mm
  • LC/UPC Connector
  • Cable Diameter 2.0mm
Bendable LC-LC Multimode fibre cable duplex 5m OM3 LSZH

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.
The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.

Features
Plug and Play Yes
Jacket material Low smoke zero halogen (LSZH)
Compressive strength 10
Insertion loss 0.3 dB
Return loss 35 dB
Wavelengths supported 850,953,1260,1280,1300 nm
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Full duplex Yes
Product colour Aqua colour
Connector polish type UPC
Connector 1 gender Male
Connector 2 gender Male
Connector 2 LC
Connector 1 LC
Cable shape Round
Fibre optic type OM3
Cable type LC/LC
Cable length 5 m
Technical details
Compliance certificates REACH, RoHS
Doesn't contain Halogen
Warranty period 25 year(s)
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Bending radius 3 cm
Weight 100 g
Cable diameter 2 mm
Packaging data
Package weight 100 g
Package height 200 mm
Package depth 50 mm
Package width 180 mm
