Lanview

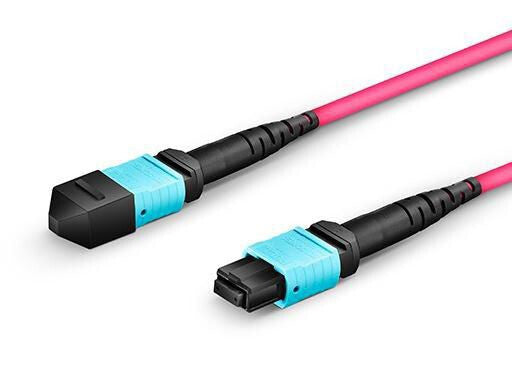

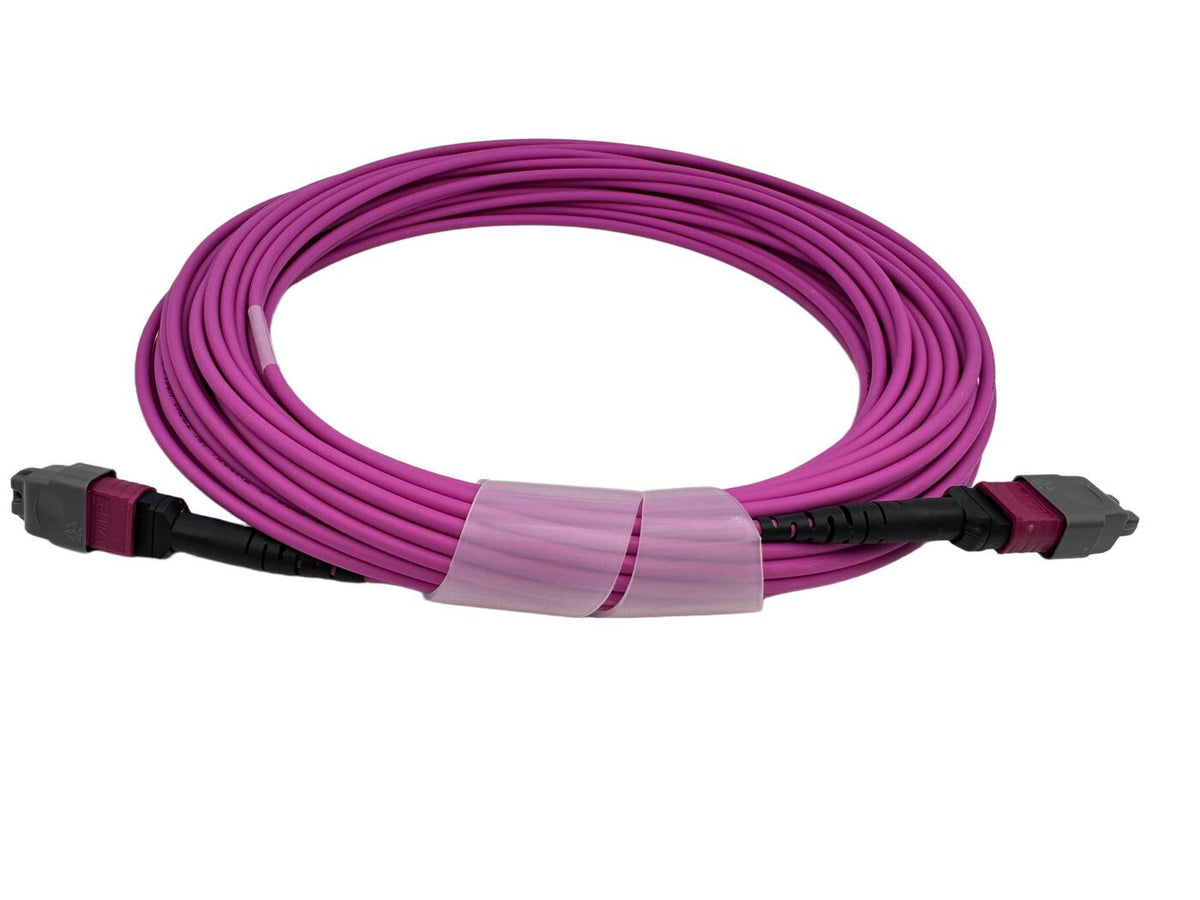

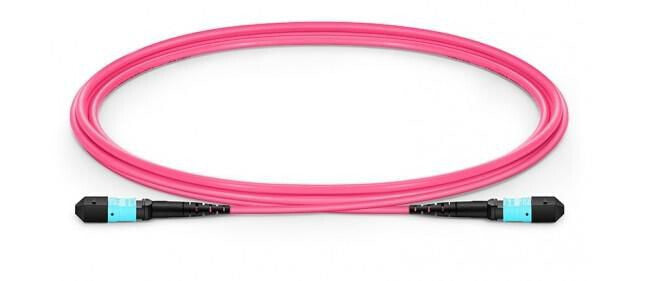

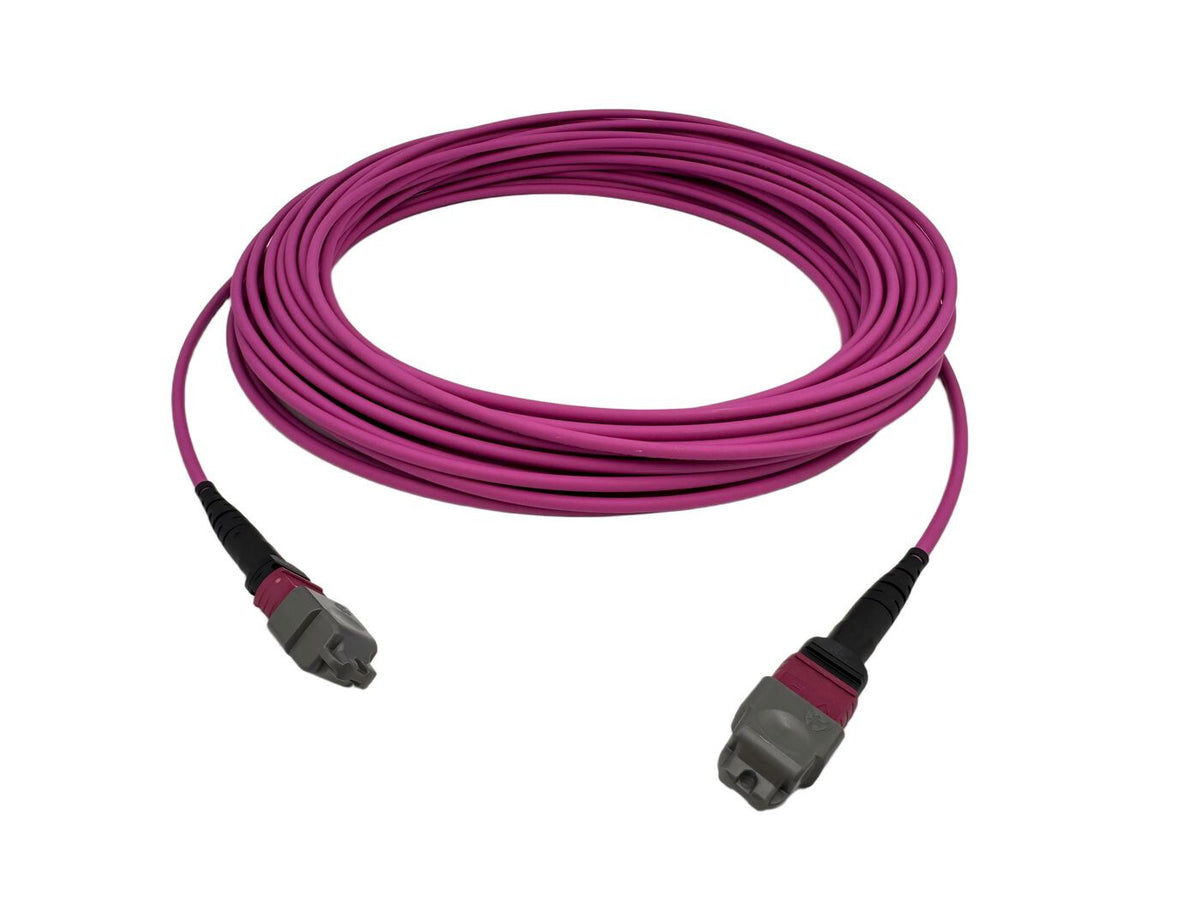

Lanview LVO230415-MTP InfiniBand/fibre optic cable 15 m Violet

Lanview LVO230415-MTP InfiniBand/fibre optic cable 15 m Violet

£130.88 GBP
£130.88 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO230415-MTP

Low stock: 4 left

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant
  • Reduces the amount of insertion loss
  • Ability to route dozens of individual fiber strands

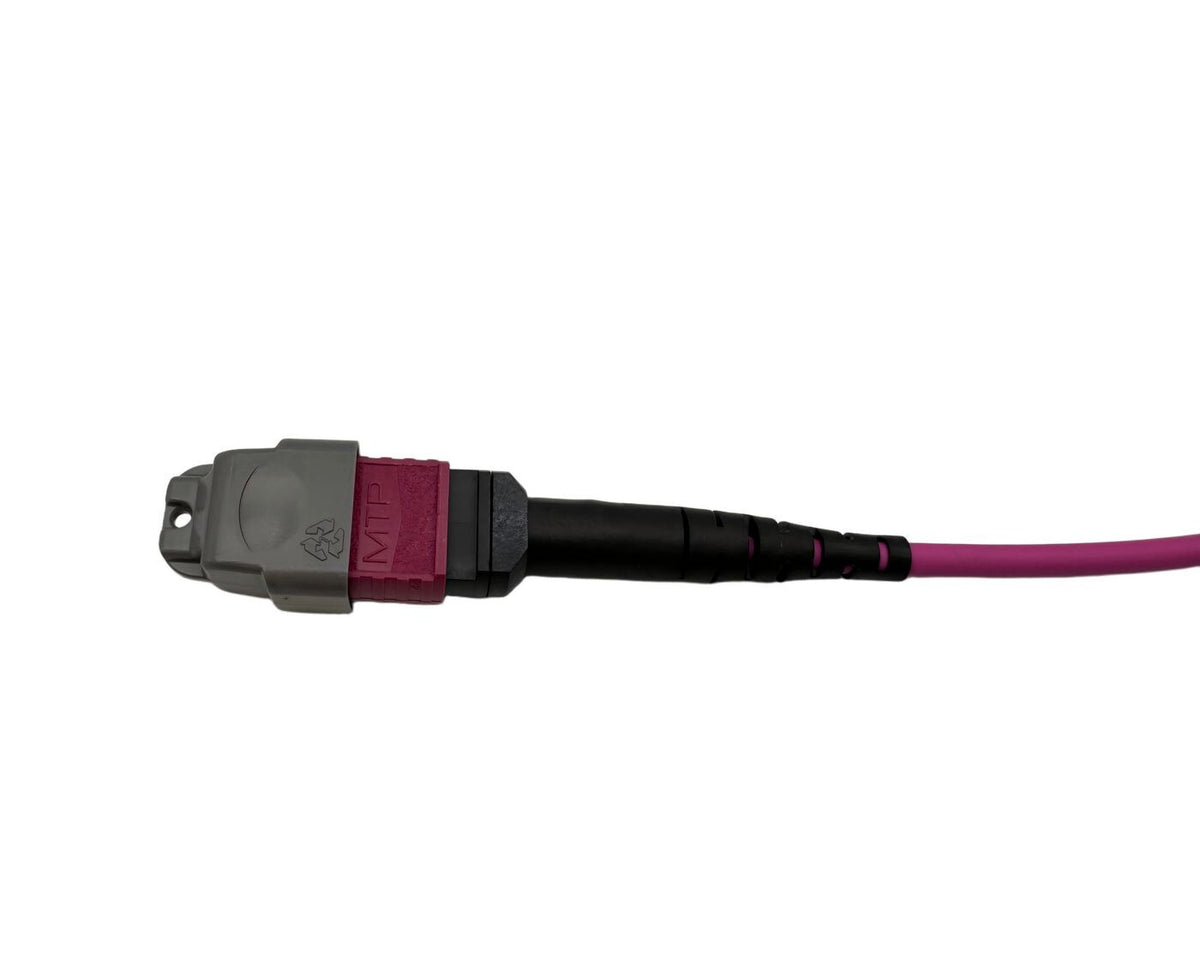

Optical Fibre Cable, MTP Female - MTP Female, Multimode, Polarity B, OM4 (Erica Violet), 15 m

OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.

Features
Country of origin China
Polarity B
Jacket material Low smoke zero halogen (LSZH)
Insertion loss 0.3 dB
Ethernet interface type 10 Gigabit Ethernet
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Full duplex Yes
Product colour Violet
Connector 1 gender Female
Connector 2 gender Female
Connector 2 MTP
Connector 1 MTP
Fibre optic type OM4
Cable length 15 m
Technical details
Sustainability compliance Yes
Compliance certificates RoHS
Doesn't contain Halogen
Operational conditions
Storage temperature (T-T) -40 - 80 °C
Operating temperature (T-T) -40 - 80 °C
Weight & dimensions
Weight 44 g
Packaging data
Package weight 56 g
Quantity per pack 1 pc(s)
