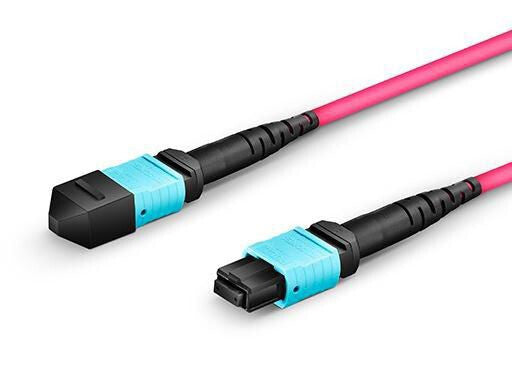

Lanview LVO230402-MTP InfiniBand/fibre optic cable 2 m Violet

Lanview LVO230402-MTP InfiniBand/fibre optic cable 2 m Violet

£68.40 GBP
£68.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVO230402-MTP

16 in stock

  • Designed for Data Centers, Industry and Computer Centers
  • LSZH (Low Smoke Zero Halogen) and flame retardant
  • RoHS compliant
  • Reduces the amount of insertion loss
  • Ability to route dozens of individual fiber strands
Optical Fibre Cable, MTP Female - MTP Female, Multimode, Polarity B, OM4 (Erica Violet), 2m

OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.

Features
Cable length 2 m
Fibre optic type OM4
Connector 1 MTP
Connector 2 MTP
Connector 2 gender Female
Connector 1 gender Female
Product colour Violet
Full duplex Yes
Core diameter 50 µm
Cladding diameter 125 µm
Fiber mode structure Multi-mode
Ethernet interface type 10 Gigabit Ethernet
Insertion loss 0.3 dB
Jacket material Low smoke zero halogen (LSZH)
Polarity B
Technical details
Compliance certificates RoHS
Sustainability compliance Yes
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 25 g
Packaging data
Quantity per pack 1 pc(s)
Package width 200 mm
Package depth 60 mm
Package height 180 mm
Package weight 33 g
