Lanview LVN125311 wire connector
Lanview LVN125311 wire connector
Regular price
£56.90 GBP
Regular price
Sale price
£56.90 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVN125311
265 in stock
- Inner Wire Diameter Range = 1.3~1.35MM
- Diameter Range for Cable = 7.6~8.3MM
- Easy-Connect
- 25 pcs in the Box

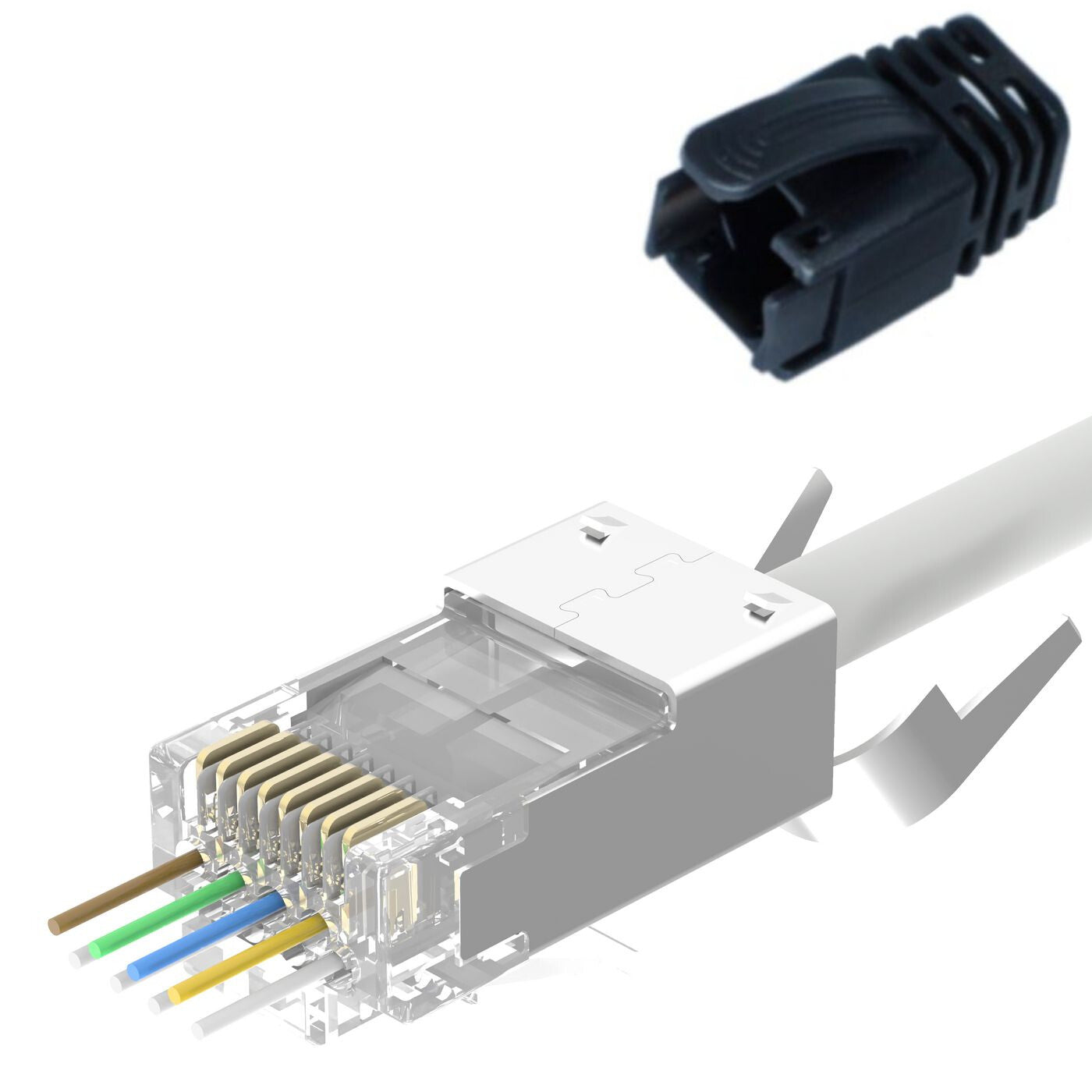

RJ45 STP plug Cat6A/Cat7 for big diameter cable AWG22-24 stranded/solid conductor for.
Designed to terminate Cat.6A or Cat.7 cable with large diameter. The maximum diameter is 1.45mm so the 23AWG/24AWG cables can go through swiftly and smoothly these ends.
NOTE: Only works with Crimping tool W126364535.
| Features | |
|---|---|
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Connector contacts plating | Gold |
| AWG wire size | 22/24 |
| Cable shielding | S/UTP (STP) |
| Weight & dimensions | |
|---|---|
| Width | 12 mm |
| Depth | 21 mm |
| Height | 8 mm |
| Weight | 198 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging data | |
|---|---|
| Package weight | 281 g |
| Package height | 180 mm |
| Package depth | 60 mm |
| Package width | 140 mm |
| Packaging content | |
|---|---|
| Quantity per bag | 25 |
