Lanview

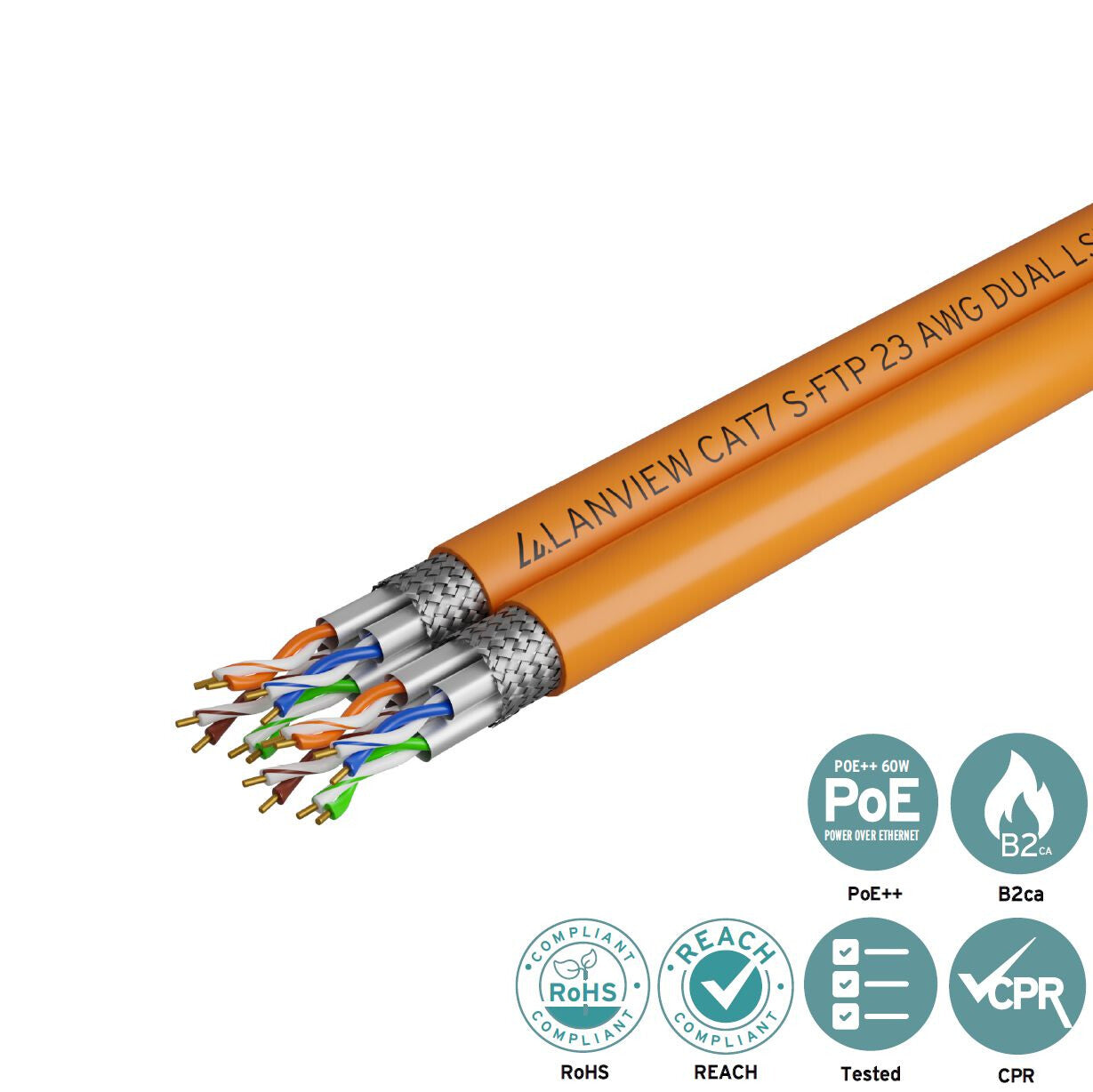

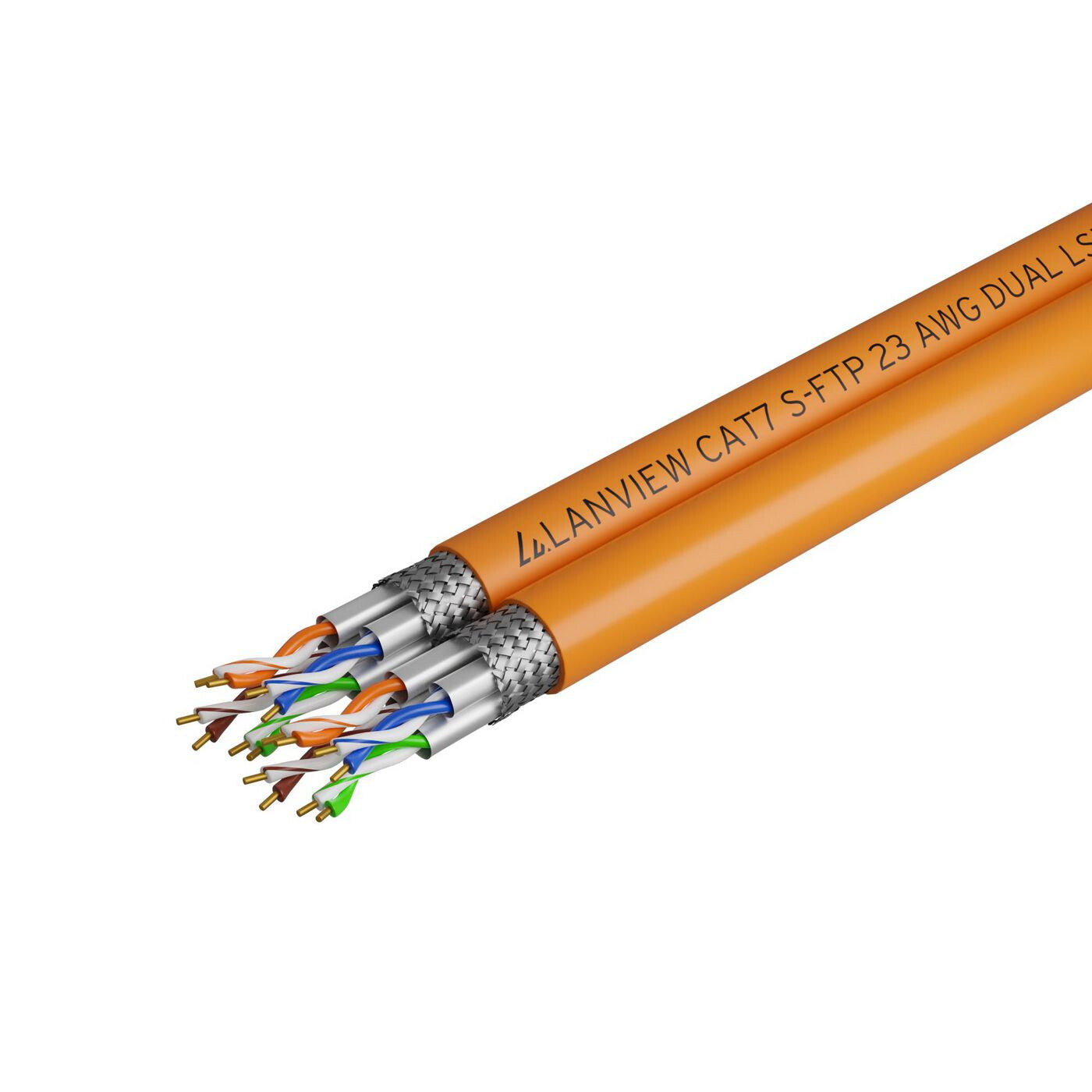

Lanview LVN122510 networking cable Orange 500 m Cat7 S/FTP (S-STP)
Lanview LVN122510 networking cable Orange 500 m Cat7 S/FTP (S-STP)
Regular price
£630.72 GBP
Regular price
Sale price
£630.72 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVN122510
21 in stock
- B2ca-s1a,d1,a1
- Shield: Foil/Braid
- AWG 23 solid copper

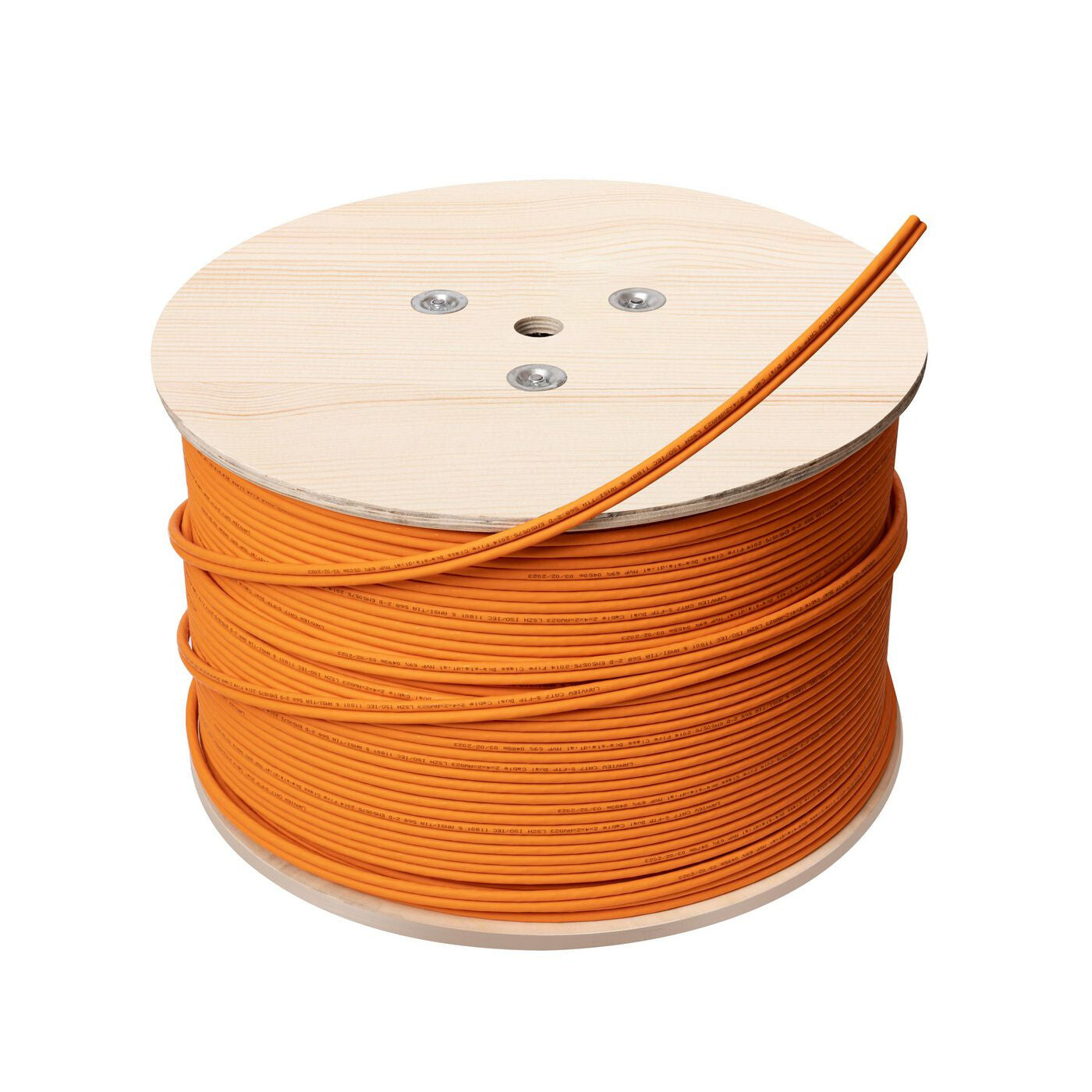

- 500 m reel
- Meter marked cable
- 600 MHz
- NVP Value: 74%
500m Cat7 S-FTP cable 2x(4x2xAWG23) LSZH Orange
Used for high speed cabling systems where there is a need for large data traffic.
Offering the maximum protection from RFI/EMI, crosstalk and alien crosstalk, this cable has both an overall braid shield and foil shield, with individually foil tape screened twisted pairs. This type of cable provides the best level of protection from interference and better grounding due to the braid.
Lanview Cat7 S-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 2x4x2 color coded PE insulated conductors.
Especially suited for noisy environments or where there is limited space in the cable routes.
| Features | |
|---|---|
| Cable length | 500 m |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Product colour | Orange |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Copper |
| Cable type | Cable on reel |
| Cable class | D |
| Cable fire class | Dca |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 23 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 1000 MHz |
| Weight & dimensions | |
|---|---|
| Weight | 60 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package height | 400 mm |
| Package weight | 61 kg |
| Logistics data | |
|---|---|
| Products per pallet (sea) | 12 pc(s) |
