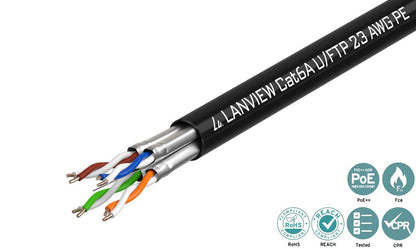

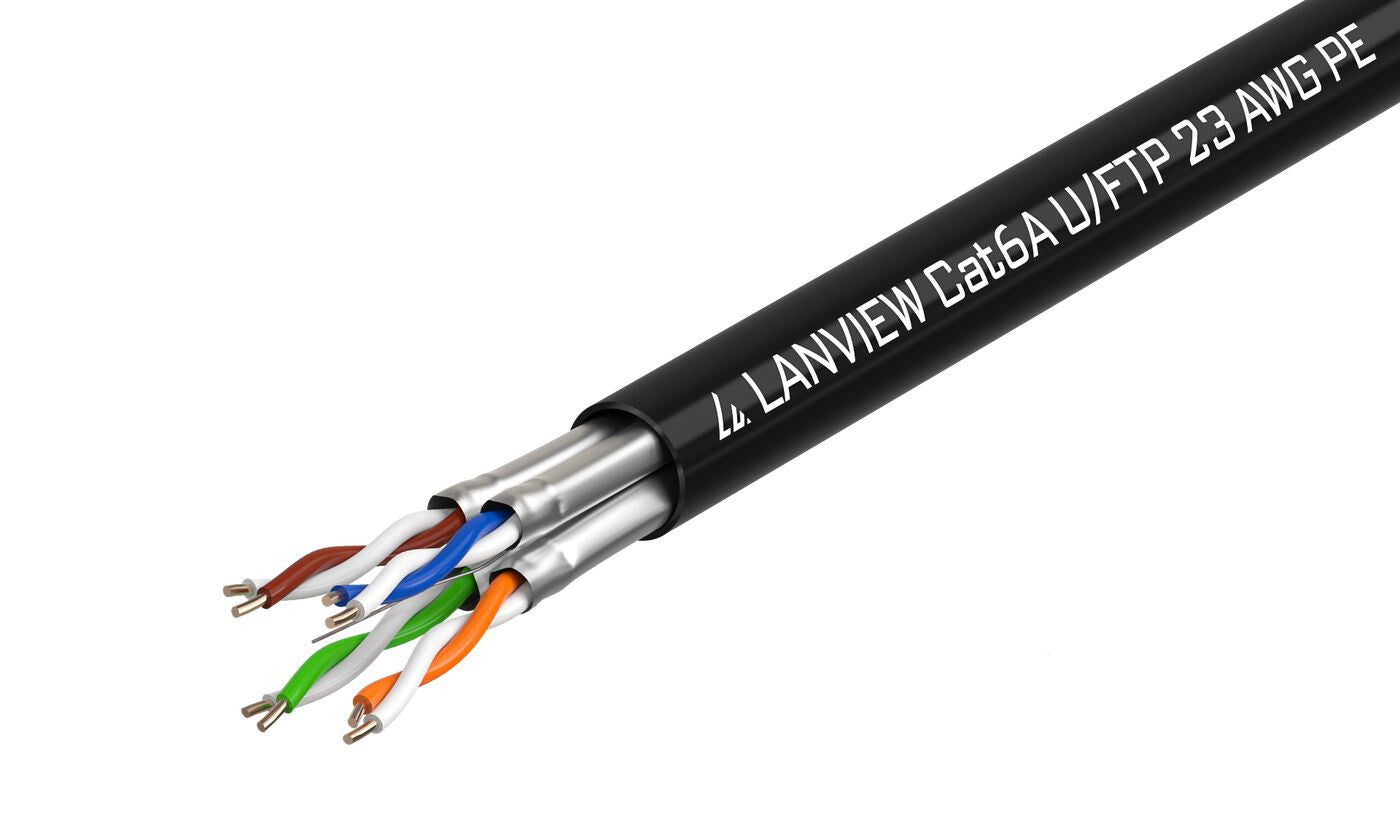

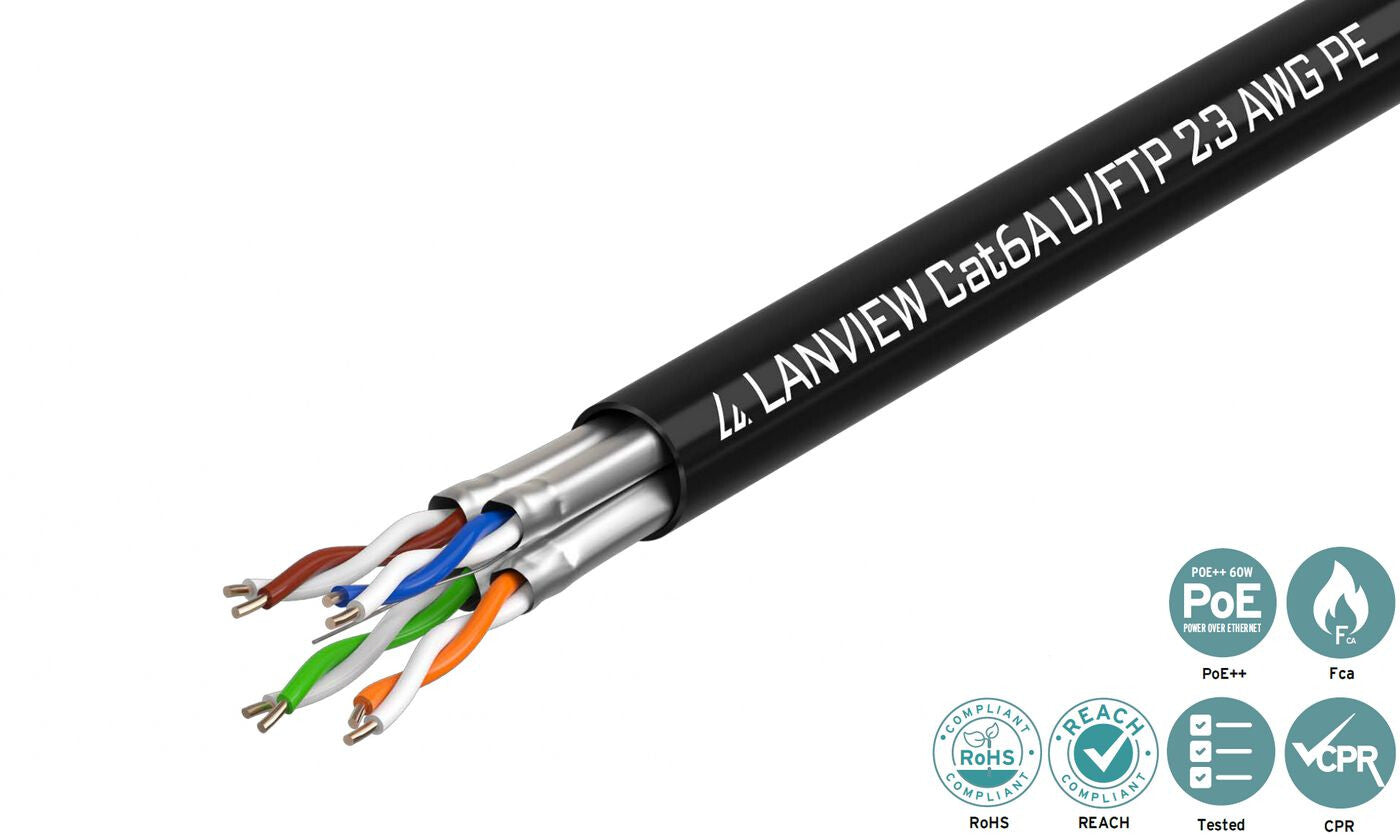

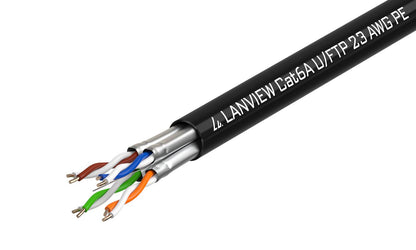

Lanview LVN122445 networking cable Black 500 m Cat6a U/FTP (STP) Round
Lanview LVN122445 networking cable Black 500 m Cat6a U/FTP (STP) Round
SKU:LVN122445
57 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- UV resistant
- HD-Base T application
- AWG: 23 solid copper
- 500 m reel
- Meter marked
- Duct grade
- NVP Value: 74%
Used in structured cabling systems outdoor. Typically used as intermediate cabling between buildings as well as outdoor surveillance.
This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.
Lanview Cat6a U-FTP PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors,
| Features | |
|---|---|
| Cable length | 500 m |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Product colour | Black |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyethylene (PE) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Copper |
| Cable type | Cable on reel |
| Cable class | D |
| Cable fire class | Fca |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 23 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 500 MHz |
| Suitable for outdoor use | Yes |
| Weight & dimensions | |
|---|---|
| Width | 350 mm |
| Depth | 350 mm |
| Height | 400 mm |
| Outer diameter | 7.3 mm |
| Weight | 22.5 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package height | 400 mm |
| Package weight | 26.5 kg |
