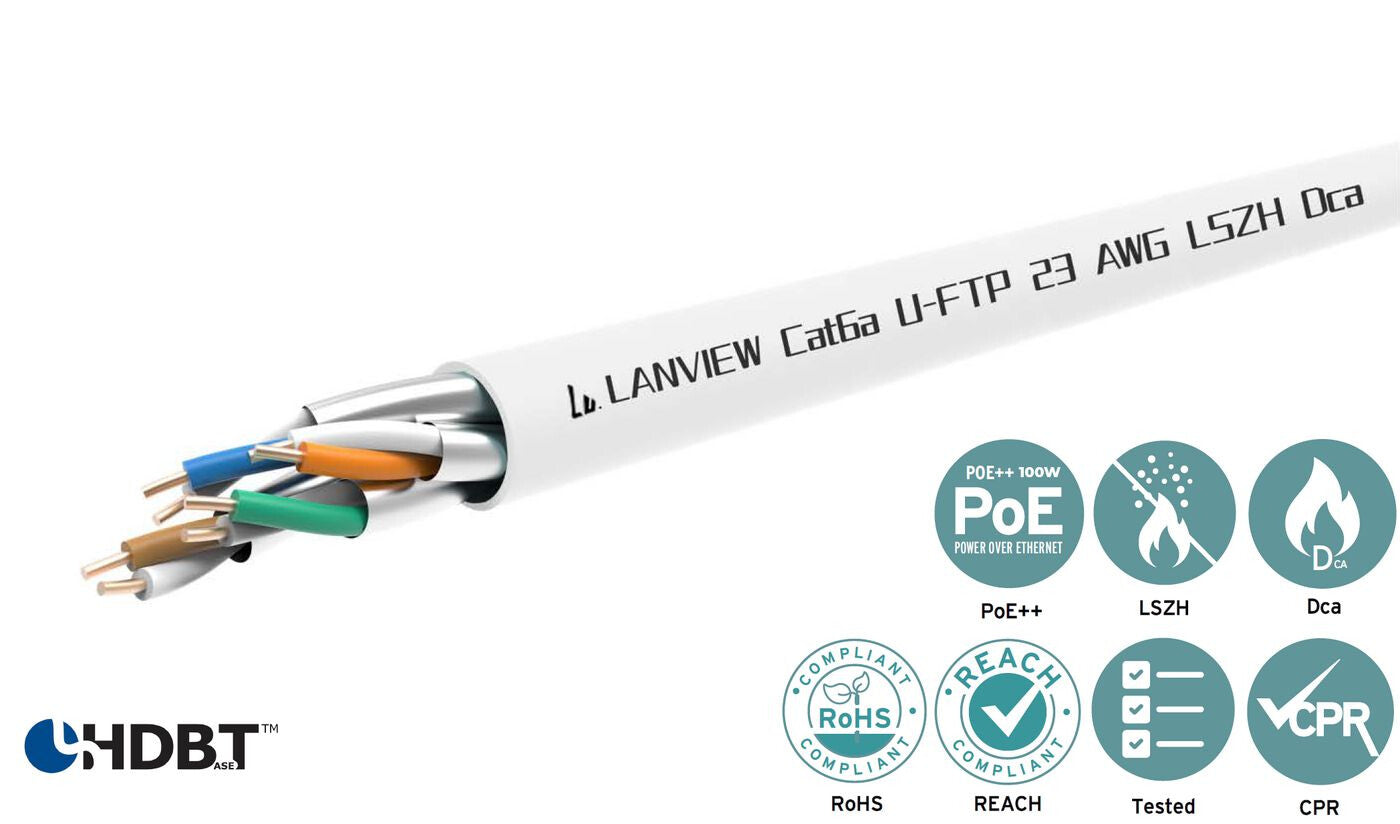

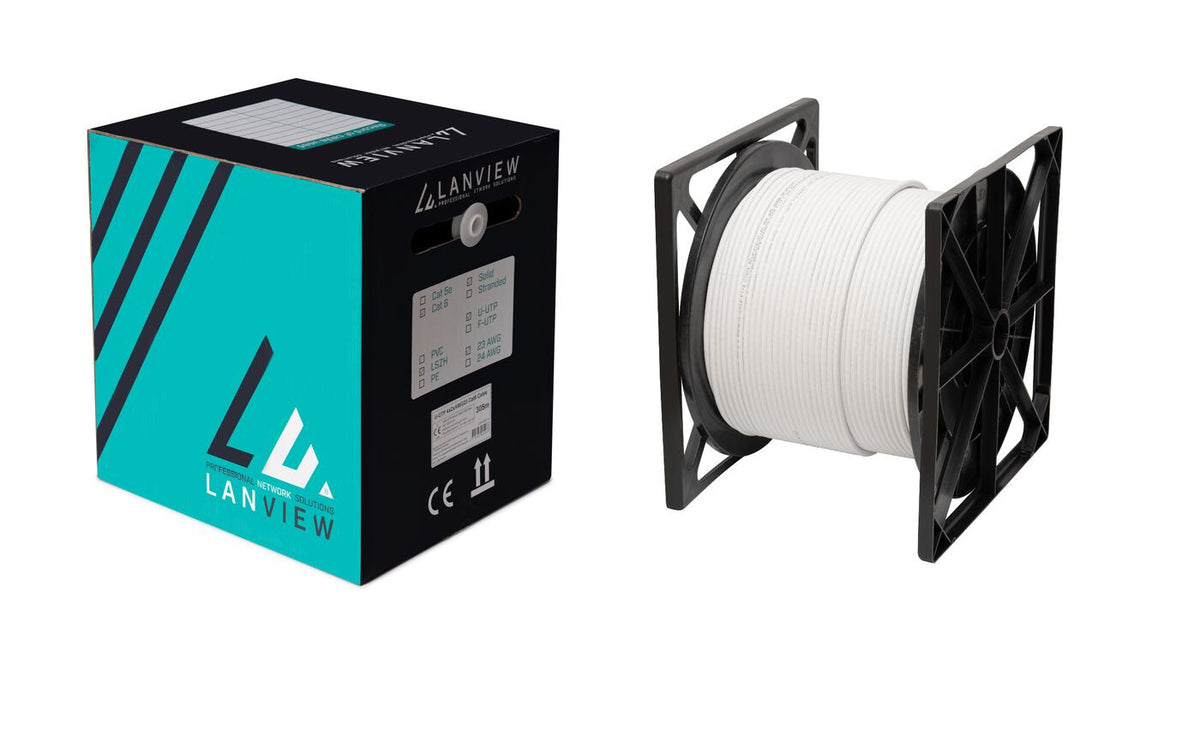

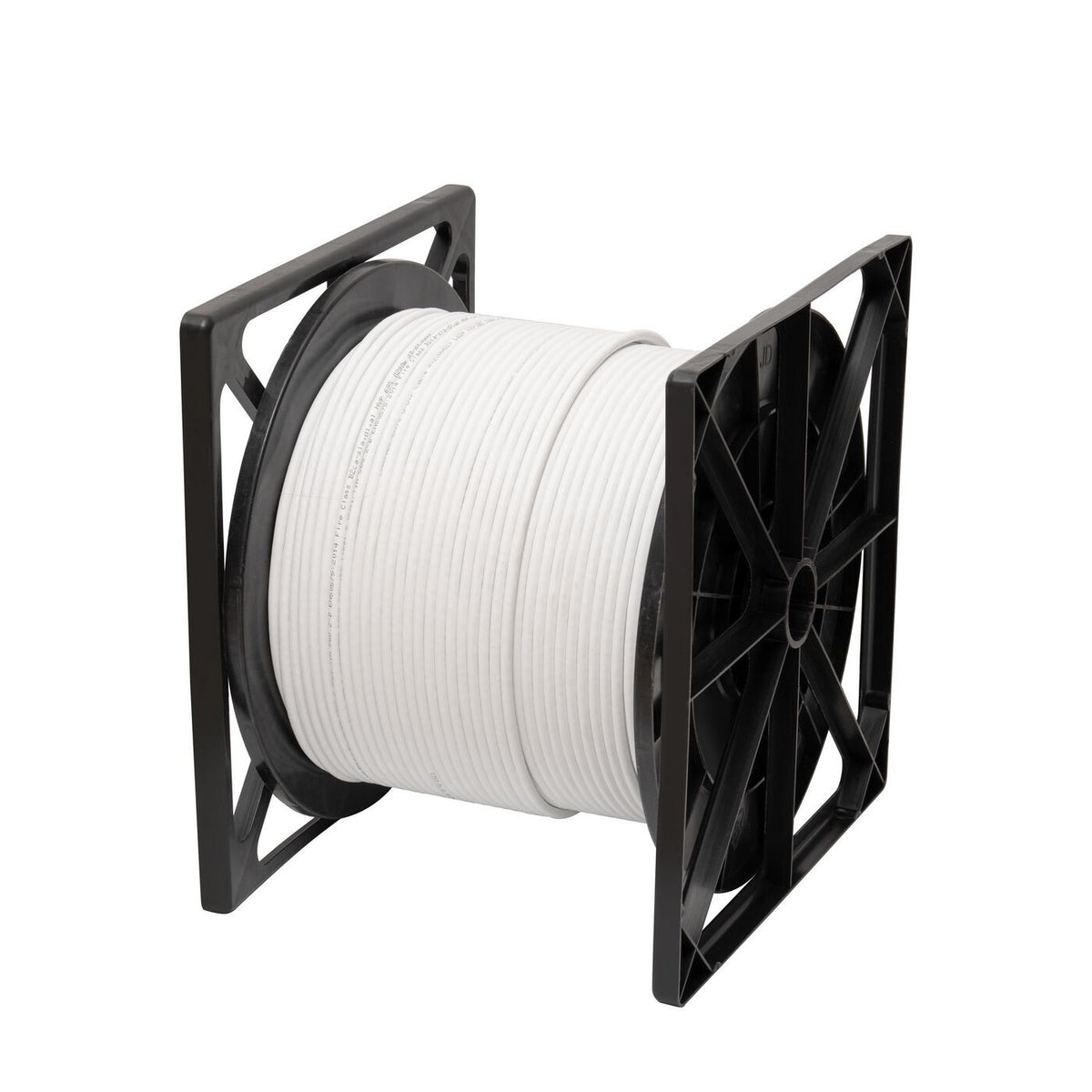

Lanview LVN122432 networking cable White 305 m Cat6a U/FTP (STP)

Lanview LVN122432 networking cable White 305 m Cat6a U/FTP (STP)

£186.20 GBP
£186.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVN122432

33 in stock

  • HD-BaseT recommended
  • Meter marked
  • Resistant-to-fire Class: Dca-s1, d2, a1
  • Outer sheath color: White
  • AWG: 23 solid copper
Cat6a U-FTP HD-BaseT 4x2xAWG23 LSZH white 305m, Dca

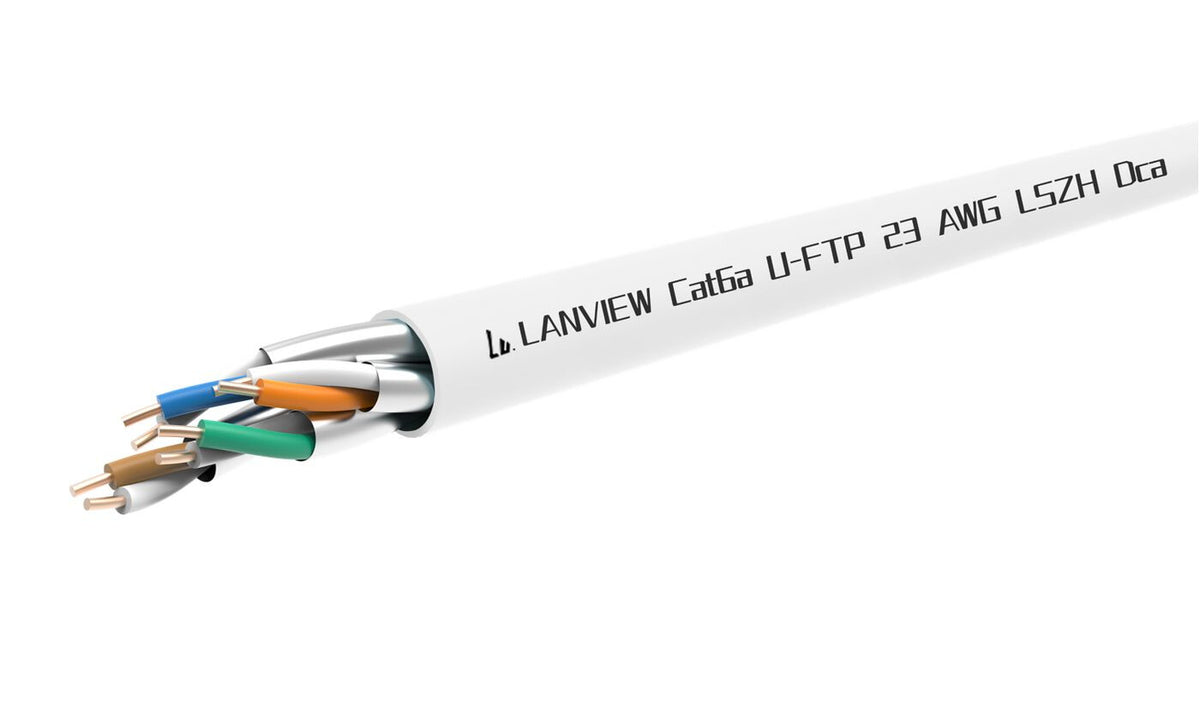

Lanview Cat6a HDbase-T recommended cable U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
This Cat 6A cable has been tested and approved by the HDBaseT Alliance, guaranteeing its quality and network performance. The HDBaseT standard allows for the distribution of full HD video, 2K and 4K uncompressed video, audio, 100BaseT Ethernet, power and control across a single Cat 6A cable.

Features
Frequency 500 MHz
Data transfer rate 10000 Mbit/s
AWG wire size 23
Ethernet interface type 10 Gigabit Ethernet
Cabling technology 10GBase-T
Cable fire class Dca
Cable class D
Conductor material Copper
Conductor type Solid
Cable shape Round
Jacket material Low smoke zero halogen (LSZH)
Connector 1 gender No
Connector 2 gender No
Product colour White
Cable shielding U/FTP (STP)
Cable standard Cat6a
Cable length 305 m
Weight & dimensions
Weight 17 kg
Outer diameter 7.3 mm
Height 270 mm
Depth 390 mm
Width 390 mm
Packaging data
Package weight 17 kg
Package height 270 mm
Package depth 390 mm
Package width 390 mm
Quantity per pack 1 pc(s)
Technical details
Doesn't contain Halogen
Compliance certificates RoHS
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
