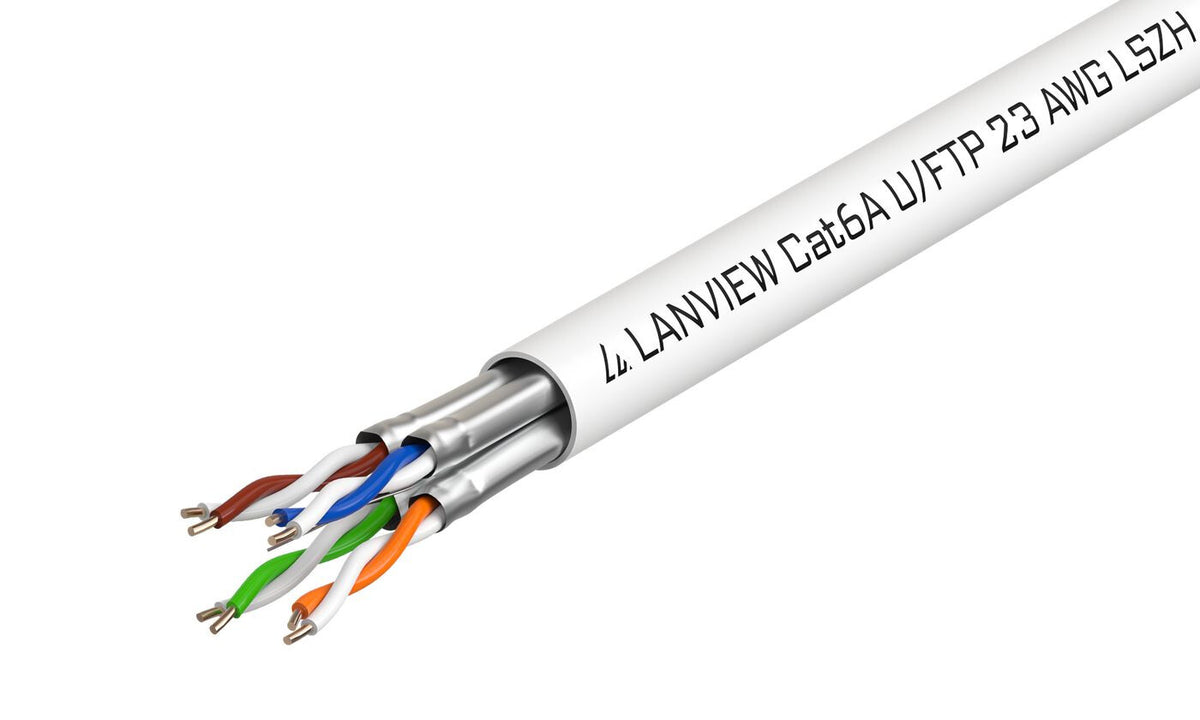

Lanview LVN122430 networking cable White 500 m Cat6a U/FTP (STP) Round

Lanview LVN122430 networking cable White 500 m Cat6a U/FTP (STP) Round

£268.16 GBP
£268.16 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVN122430

21 in stock

  • HDBaseT recommended
  • Meter marked
  • Resistant-to-fire Class: Eca
  • Outer sheath color: White
  • AWG: 23 solid copper
  • NVP Value: 74%
500m Cat6a U-FTP cable 4x2xAWG23 LSZH white

Lanview Cat6a U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.

Features
Cable length 500 m
Cable standard Cat6a
Cable shielding U/FTP (STP)
Product colour White
Connector 1 No
Connector 2 No
Jacket material Low smoke zero halogen (LSZH)
Cable shape Round
Conductor type Solid
Conductor material Copper
Cable type Cable on reel
Cable class D
Cable fire class Eca
Cabling technology 10GBase-T
Ethernet interface type 10 Gigabit Ethernet
AWG wire size 23
Data transfer rate 10000 Mbit/s
Frequency 500 MHz
Weight & dimensions
Width 350 mm
Depth 350 mm
Height 400 mm
Weight 25 kg
Packaging data
Quantity per pack 1 pc(s)
Package width 350 mm
Package depth 350 mm
Package height 400 mm
Package weight 29 kg
