Lanview LVN122163 networking cable White 305 m Cat6a U/FTP (STP)
Lanview LVN122163 networking cable White 305 m Cat6a U/FTP (STP)
Regular price
£317.84 GBP
Regular price
Sale price
£317.84 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVN122163
42 in stock
- Reaction-to-fire class: Cca-s1a,d1,a1
- AWG 23 solid copper
- EMC Class: B

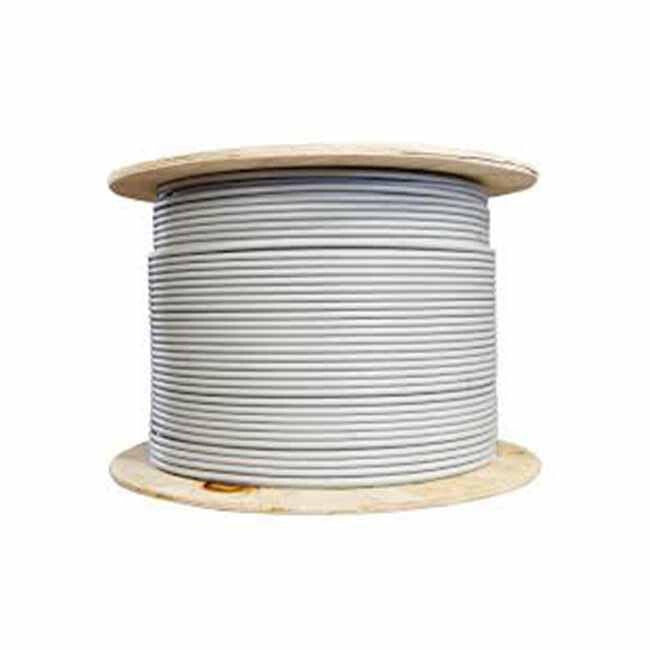

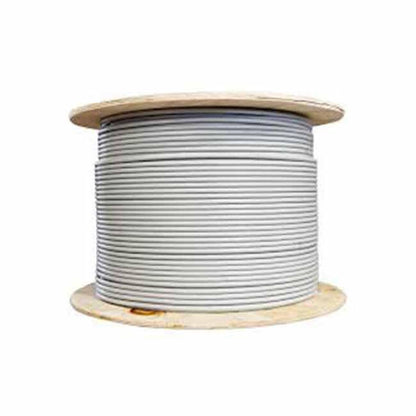

- 305 m REELEX box
- Meter marked cable
- NVP Value: 74%

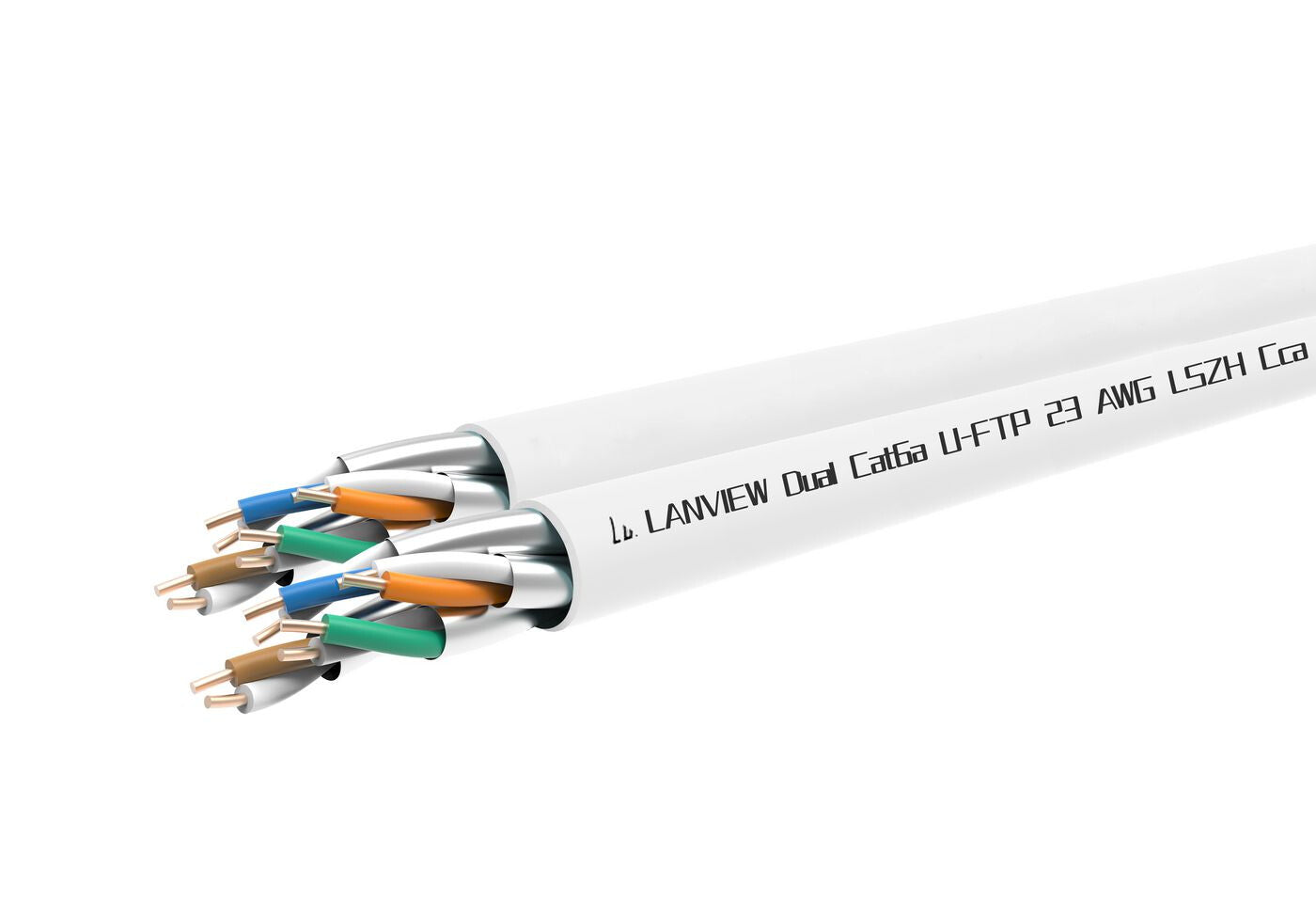

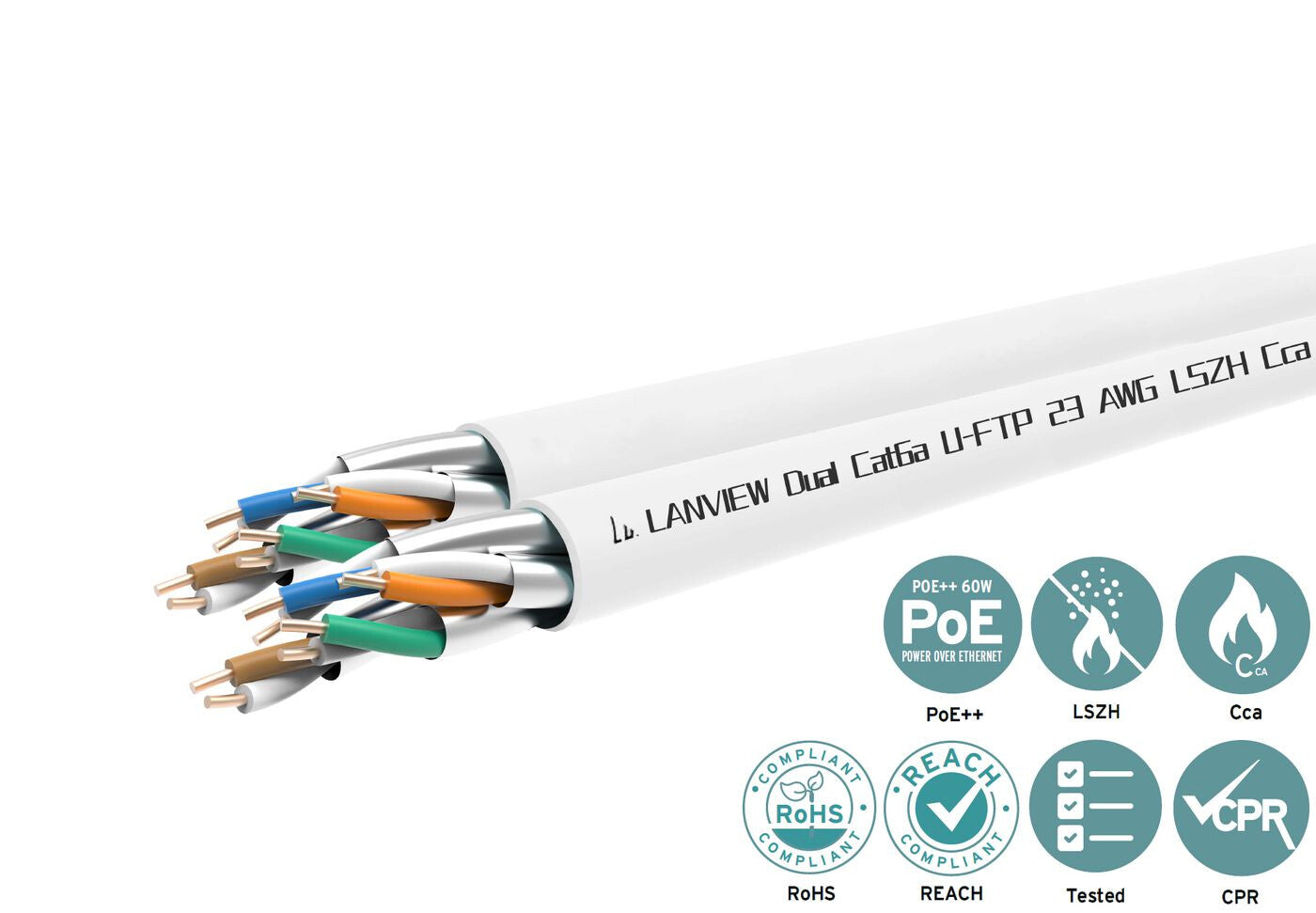

305m Cat6a U-FTP Dual cable 2x(4x2xAWG23) LSZH white, Fire class: Cca
Used in structured cabling systems. For transmission of telecommunications and high speed data.
Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
| Features | |
|---|---|
| Frequency | 500 MHz |
| Data transfer rate | 10000 Mbit/s |
| AWG wire size | 23 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable fire class | Cca |
| Conductor material | Copper |
| Conductor type | Solid |
| Cable shape | Round |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector 2 | No |
| Connector 1 | No |
| Product colour | White |
| Cable shielding | U/FTP (STP) |
| Cable standard | Cat6a |
| Cable length | 305 m |
| Weight & dimensions | |
|---|---|
| Weight | 32 kg |
| Height | 395 mm |
| Depth | 350 mm |
| Width | 350 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 39 kg |
| Package height | 395 mm |
| Package depth | 350 mm |
| Package width | 350 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per pallet (sea) | 50 pc(s) |
