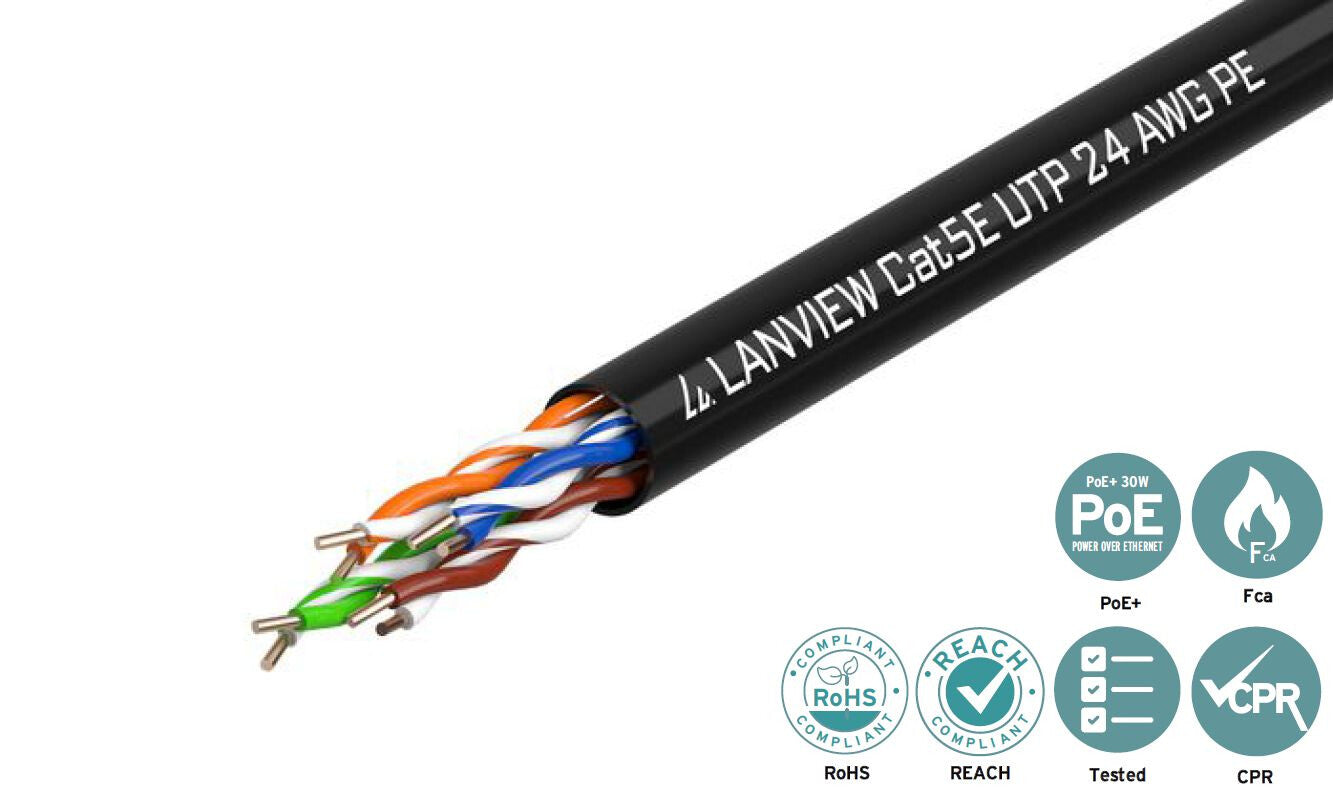

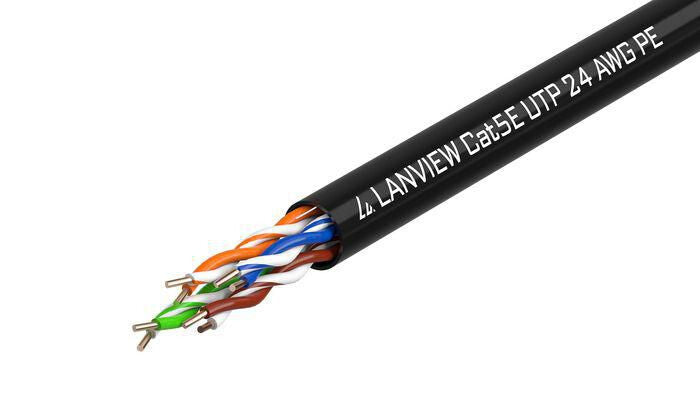

Lanview LVN122149 networking cable Black 305 m Cat5e U/UTP (UTP) Round
Lanview LVN122149 networking cable Black 305 m Cat5e U/UTP (UTP) Round
SKU:LVN122149
729 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Reaction-to-fire class: Fca
- AWG 24 solid copper
- EMC Class B
- 305 m REELEX box
- Meter marked cable
- Duct grade
- NVP Value: 69%
Lanview Cat5e Unshielded PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. and can be used for outdoor installations, Each cable consists of 4x2 color coded PE insulated conductors.
This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.
The cable has no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.
| Features | |
|---|---|
| Cable length | 305 m |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Product colour | Black |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyethylene (PE) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Copper |
| Cable fire class | Fca |
| Ethernet interface type | Gigabit Ethernet |
| AWG wire size | 24 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 100 MHz |
| Weight & dimensions | |
|---|---|
| Width | 195 mm |
| Depth | 345 mm |
| Height | 345 mm |
| Outer diameter | 5 mm |
| Weight | 8.3 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 345 mm |
| Package height | 345 mm |
| Package weight | 9.2 kg |
| Package type | Box |
| Logistics data | |
|---|---|
| Products per pallet (sea) | 90 pc(s) |
