Lanview

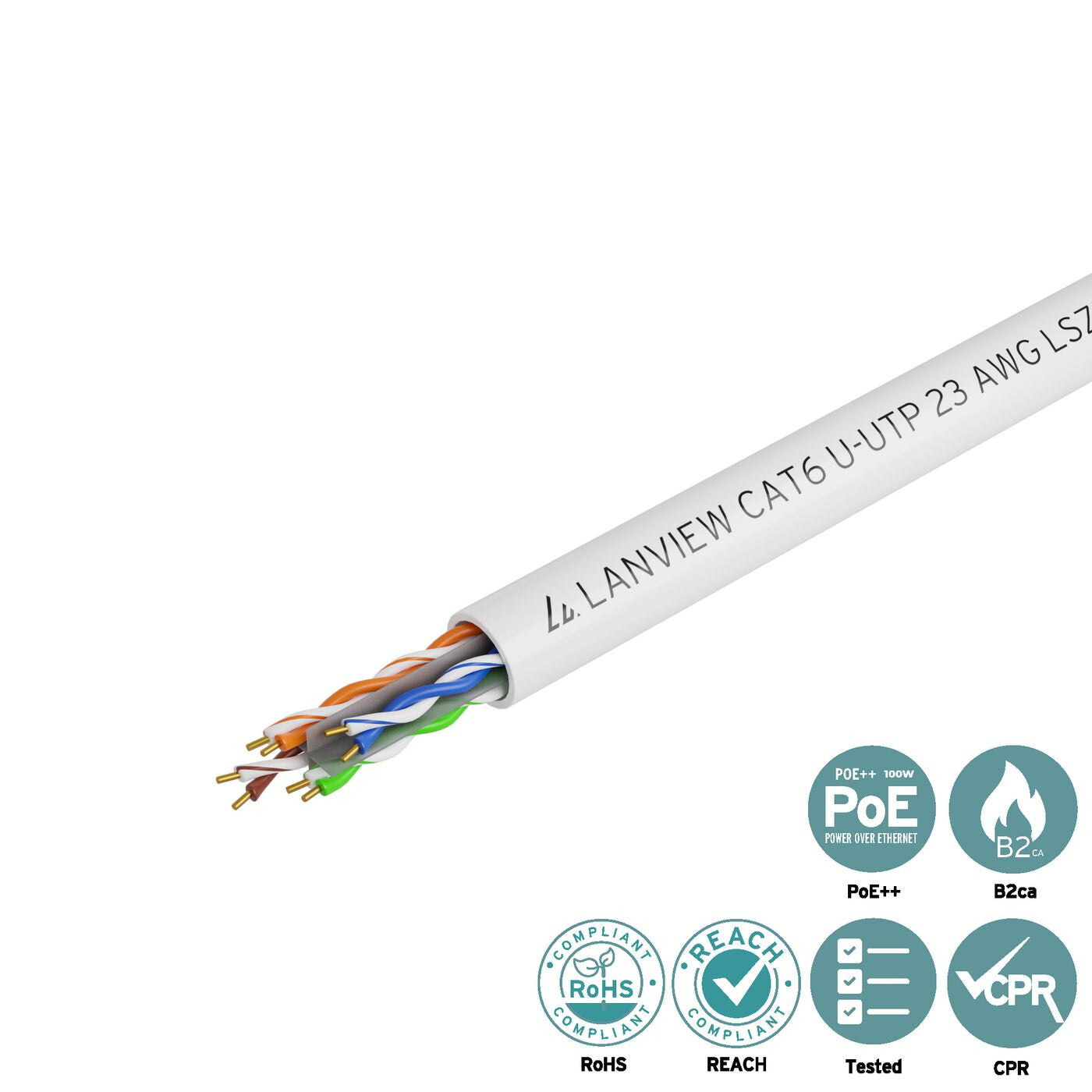

Lanview LVN122114 networking cable White 305 m Cat6 U/UTP (UTP)
Lanview LVN122114 networking cable White 305 m Cat6 U/UTP (UTP)
Regular price
£218.58 GBP
Regular price
Sale price
£218.58 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LVN122114
398 in stock
- Reaction-to-fire class: B2ca-s1a,d1,a1
- AWG 23 solid copper
- EMC Class: B

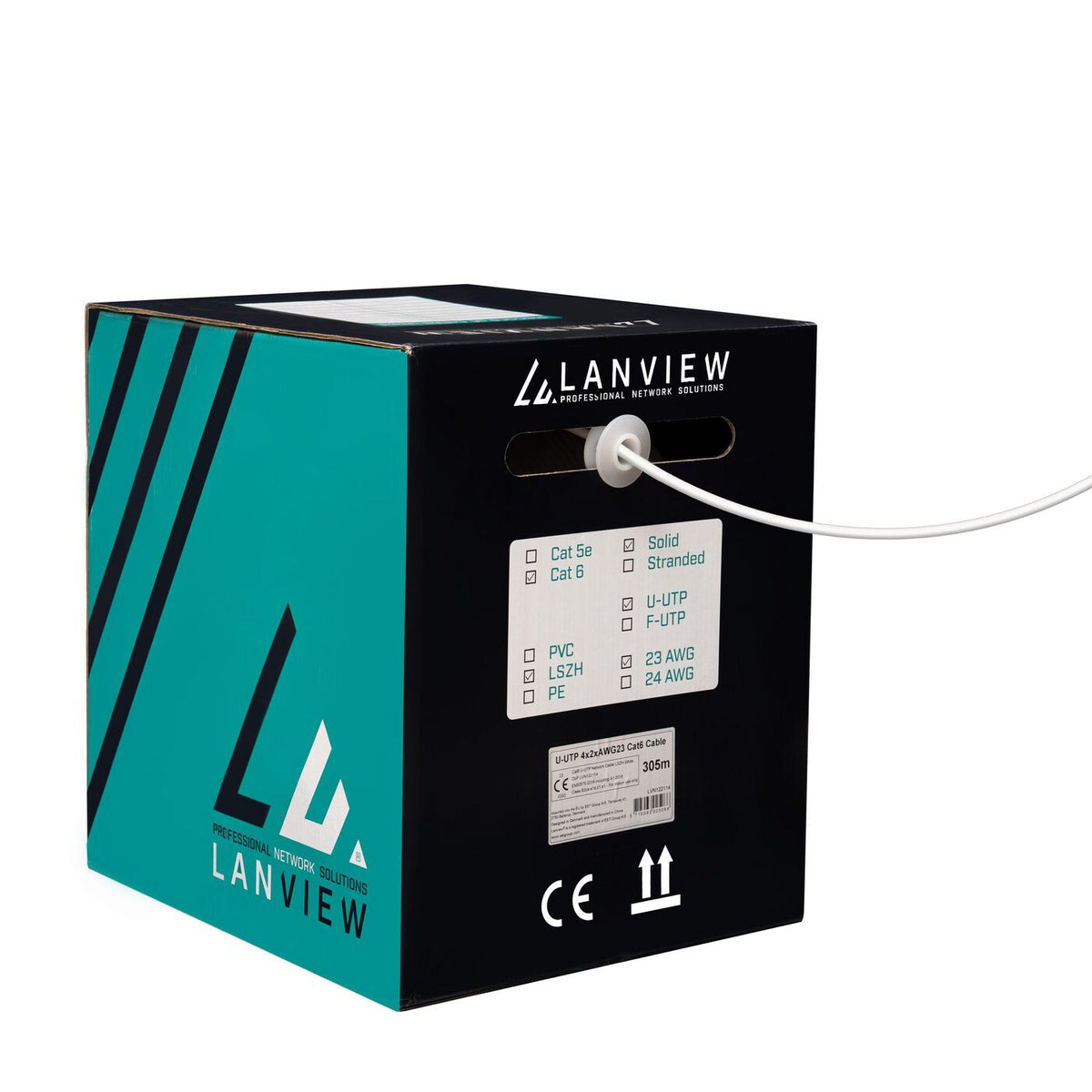

- 305 m REELEX box
- Meter marked cable

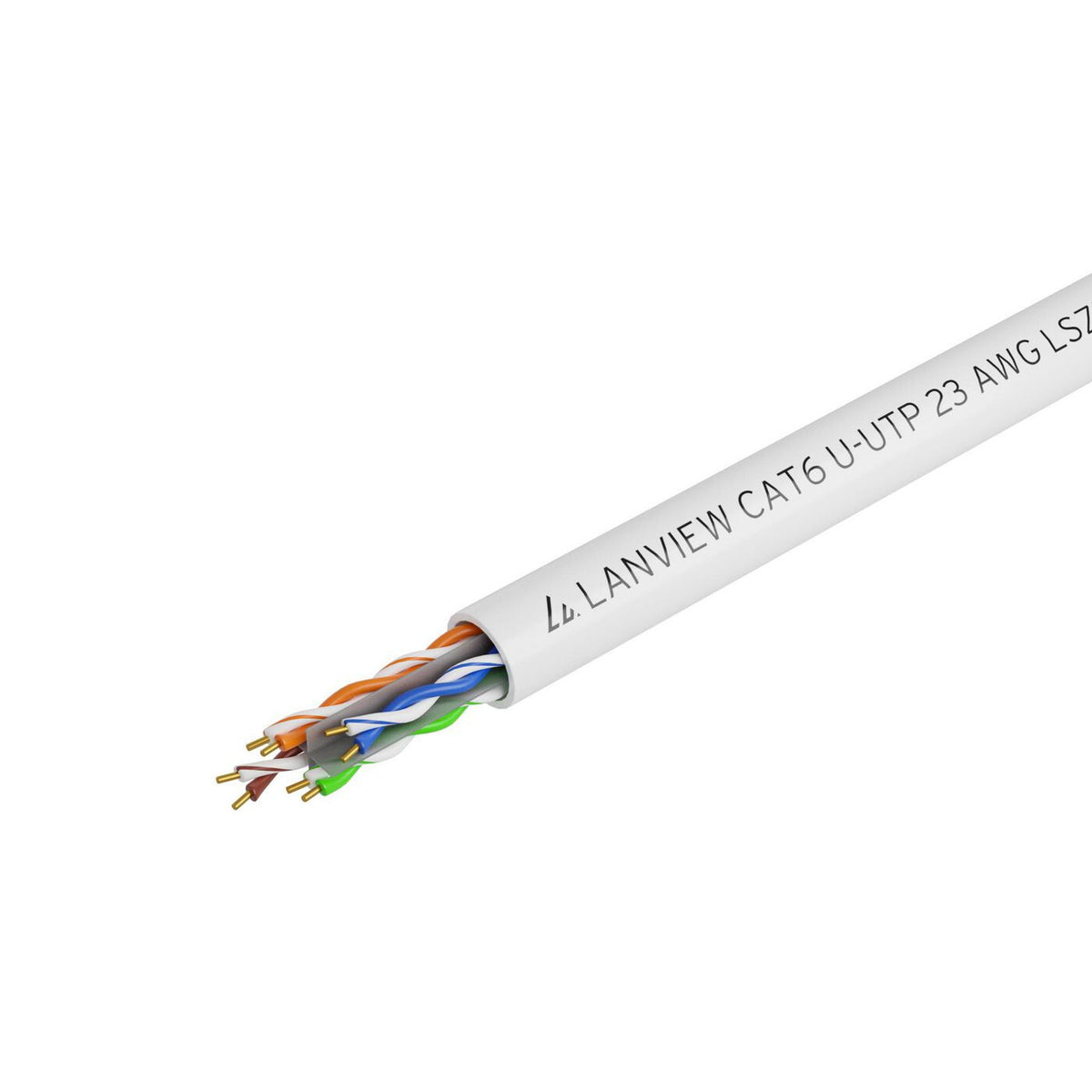

305m Cat6 U-UTP cable 4x2xAWG23 LSZH white, B2ca
Used in structured cabling systems. For transmission of telecommunications and high speed data.
Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
| Features | |
|---|---|
| Frequency | 250 MHz |
| Data transfer rate | 10000 Mbit/s |
| AWG wire size | 23 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cable fire class | B2ca |
| Cable class | B |
| Conductor material | Copper |
| Conductor type | Solid |
| Cable shape | Round |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector 1 gender | No |
| Connector 2 gender | No |
| Product colour | White |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6 |
| Cable length | 305 m |
| Weight & dimensions | |
|---|---|
| Weight | 12 kg |
| Outer diameter | 6.3 mm |
| Height | 395 mm |
| Depth | 395 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 13 kg |
| Package height | 395 mm |
| Package depth | 395 mm |
| Package width | 230 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
