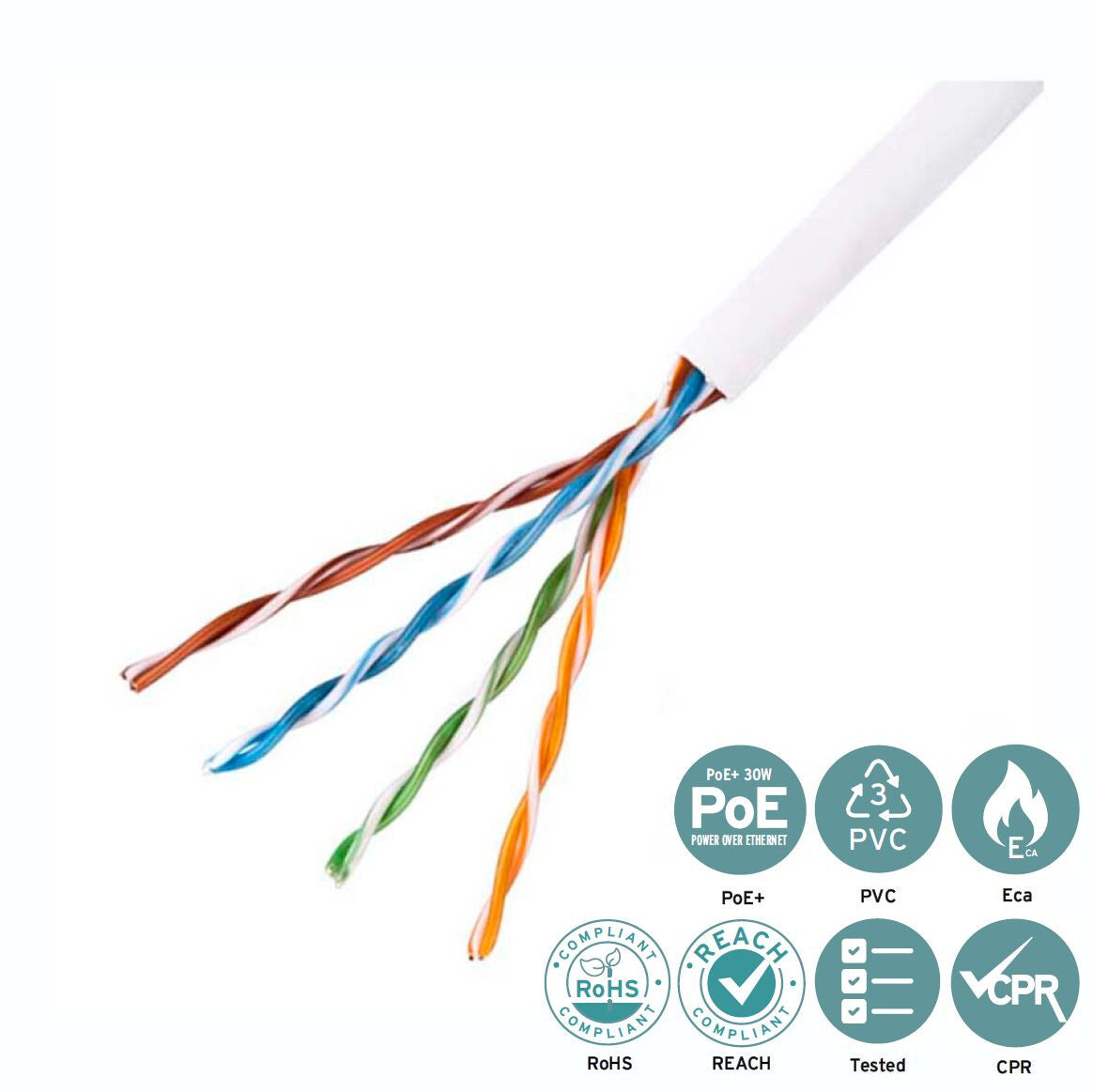

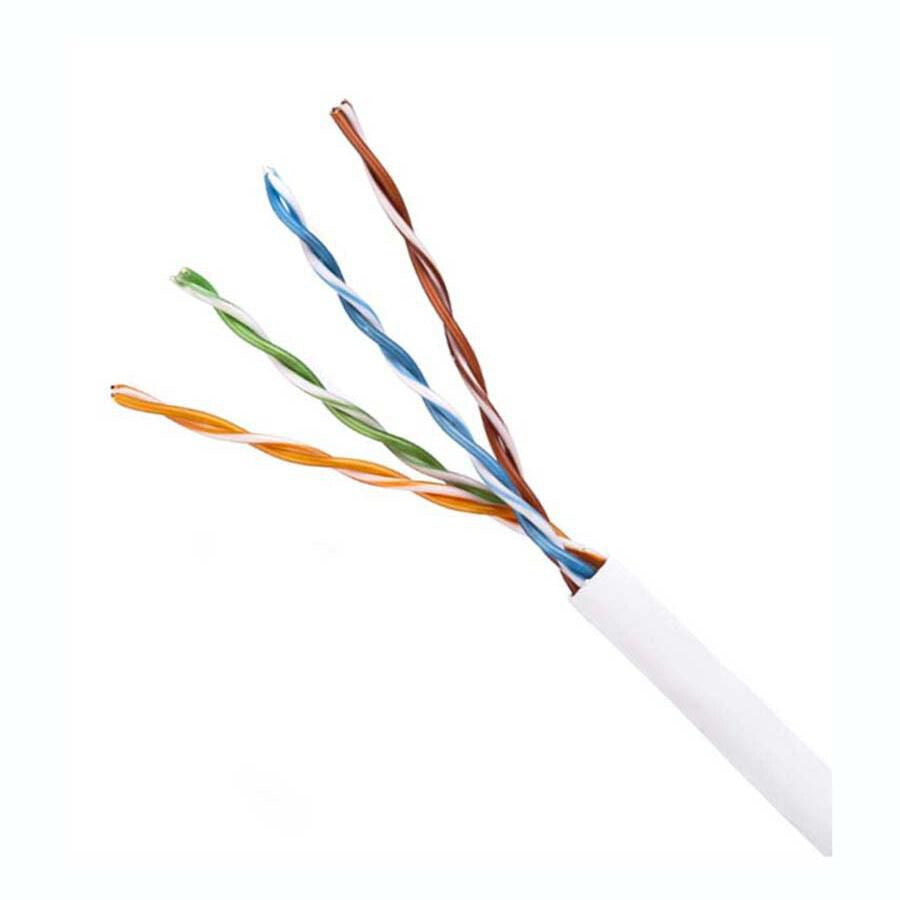

Lanview LVN122004 networking cable White 305 m Cat5e U/UTP (UTP) Round
Lanview LVN122004 networking cable White 305 m Cat5e U/UTP (UTP) Round
SKU:LVN122004
182 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Reaction-to-fire class: Eca
- AWG 24 solid copper
- EMC Class B
- 305 m REELEX box
- Meter marked cable
- Tested with 30 Watts but can also use POE++
- NVP Value: 69%
Used in structured cabling systems. Conforms to the Category 5e networking standard and is ideally suited for indoor use, Fast Ethernet, voice, data, video and multimedia applications. This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.
There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.
Lanview Cat5e Unshielded PVC Cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
| Features | |
|---|---|
| Cable length | 305 m |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Product colour | White |
| Connector 1 | No |
| Connector 2 | No |
| Connector 2 gender | No |
| Connector 1 gender | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Cable fire class | Eca |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 24 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 100 MHz |
| Suitable for outdoor use | No |
| Weight & dimensions | |
|---|---|
| Outer diameter | 5 mm |
| Weight | 9 kg |
| Packaging data | |
|---|---|
| Package width | 200 mm |
| Package depth | 300 mm |
| Package height | 305.5 mm |
| Package weight | 10.1 kg |
| Other features | |
|---|---|
| Impedance | 100 Ω |
| Cable diameter | 5 mm |
