Lanview

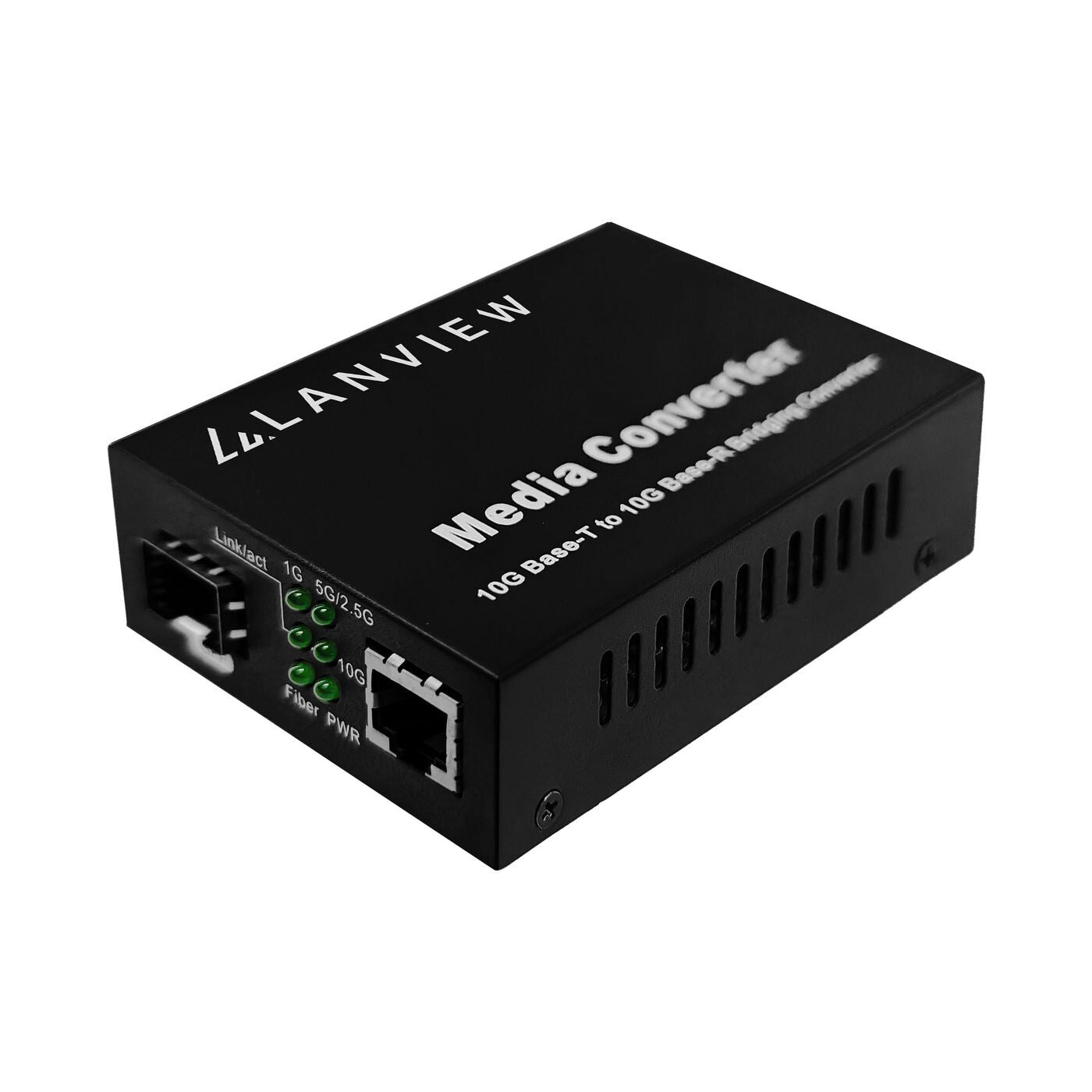

Lanview LVN-MED-SFP+-10GB-X network media converter Multi-mode Black
Lanview LVN-MED-SFP+-10GB-X network media converter Multi-mode Black
SKU:LVN-MED-SFP+-10GB-X
Low stock: 7 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Providing additional network management options
- Providing protections against lighting and static electricity for Ethernet network and the network main System
- Media converter for network backbone(SAN, LAN, MAN)
- Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter

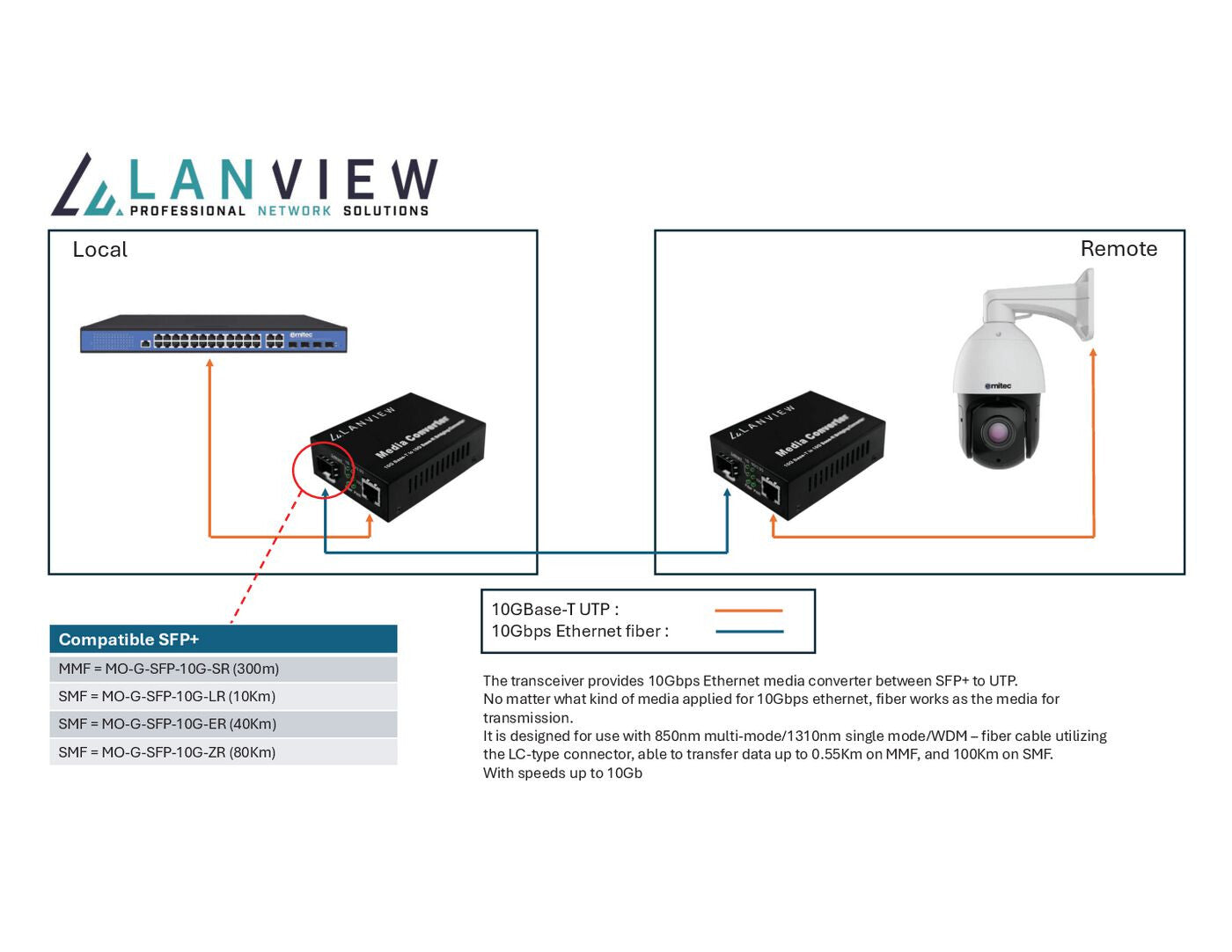

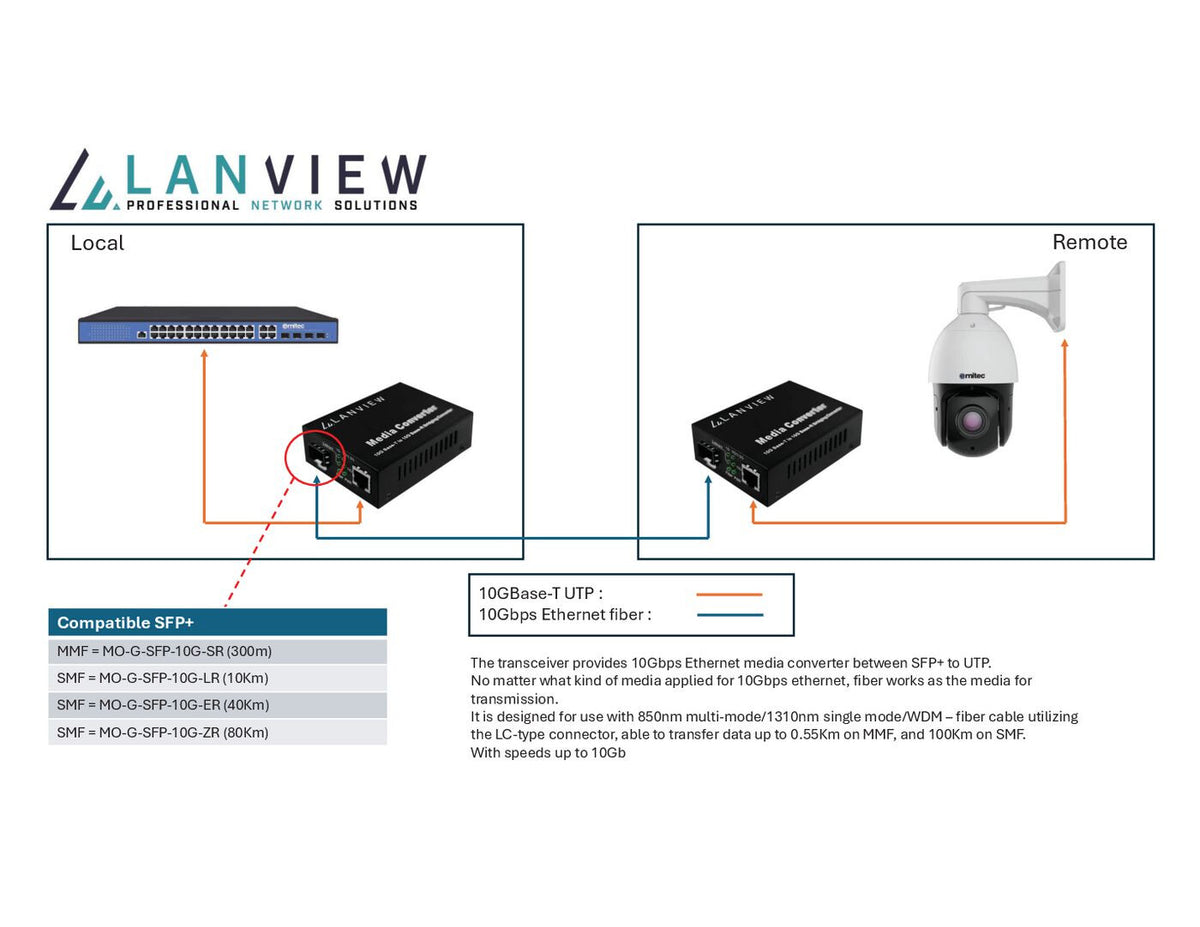

The Transceiver offers a 10Gbps Ethernet media conversion from SFP+ to UTP.
Regardless of the media type utilized for 10Gbps Ethernet, fiber is commonly used for transmission.
It is crafted for compatibility with 850nm multi-mode, 1310nm single-mode, and WDM fiber cables featuring the LC-Type connector, capable of transmitting data for distances up to 0.55 kilometers or even 100 kilometers.
The 10G Ethernet standalone and module cards provide an optimal and straightforward solution for Ethernet media conversion between copper wire and fiber at 10G speeds.
| Network | |
|---|---|
| Networking standards | IEEE 802.3u |
| Ethernet LAN data rates | 100 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-LR |
| Flow control support | Yes |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | SFP+ |
| Performance | |
|---|---|
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| Product colour | Black |
| LED indicators | Power |
| Certification | CE, FCC, Rohs |
| Power | |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| Management features | |
|---|---|
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 390 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 150 mm |
| Package depth | 100 mm |
| Package height | 50 mm |
| Package weight | 490 g |
| Packaging content | |
|---|---|
| User guide | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Transmission distance (max) | 80 km |
| Power requirements | 12V 1A |
| Connector(s) | RJ45 |
