Lanview LVN-MED-SFP-1000BASE-X network media converter Multi-mode Black
Lanview LVN-MED-SFP-1000BASE-X network media converter Multi-mode Black
SKU:LVN-MED-SFP-1000BASE-X
97 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission
- Media converter for network backbone(SAN, LAN, MAN)
- Providing additional network management options
- Providing protections against lighting and static electricity for Ethernet network and the network main

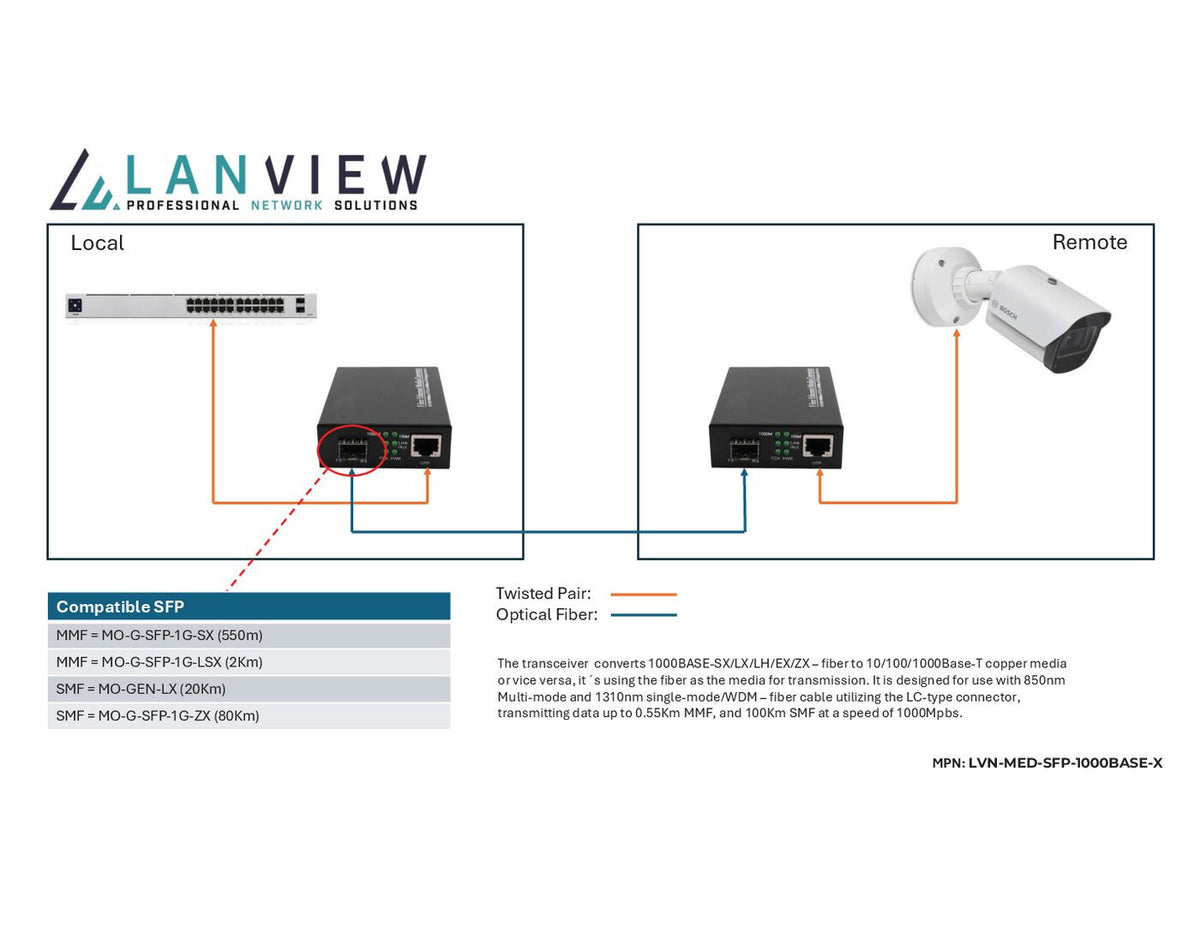

The Transceiver is designed to convert 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa.
Traditionally, it uses fiber as the transmission medium.
It is compatible with 850nm multi-mode, 1310nm single-mode, and WDM fiber cables with an LC-Type connector, capable of transmitting data up to 0.55 kilometers or 100 kilometers.
The 1000M Ethernet standalone and module cards offer a straightforward solution for Ethernet conversion between copper wire and fiber media at speeds of 1000Mbps.
| Network | |
|---|---|
| Networking standards | IEEE 802.3u |
| Ethernet LAN data rates | 100 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Flow control support | Yes |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | SFP |
| Performance | |
|---|---|
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| Product colour | Black |
| LED indicators | Power |
| Certification | CE, FCC, Rohs |
| Power | |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Management features | |
|---|---|
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 340 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 150 mm |
| Package depth | 100 mm |
| Package height | 50 mm |
| Package weight | 700 g |
| Packaging content | |
|---|---|
| User guide | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Transmission distance (max) | 80 km |
| Power requirements | 5V 1A |
| Connector(s) | RJ45 |
