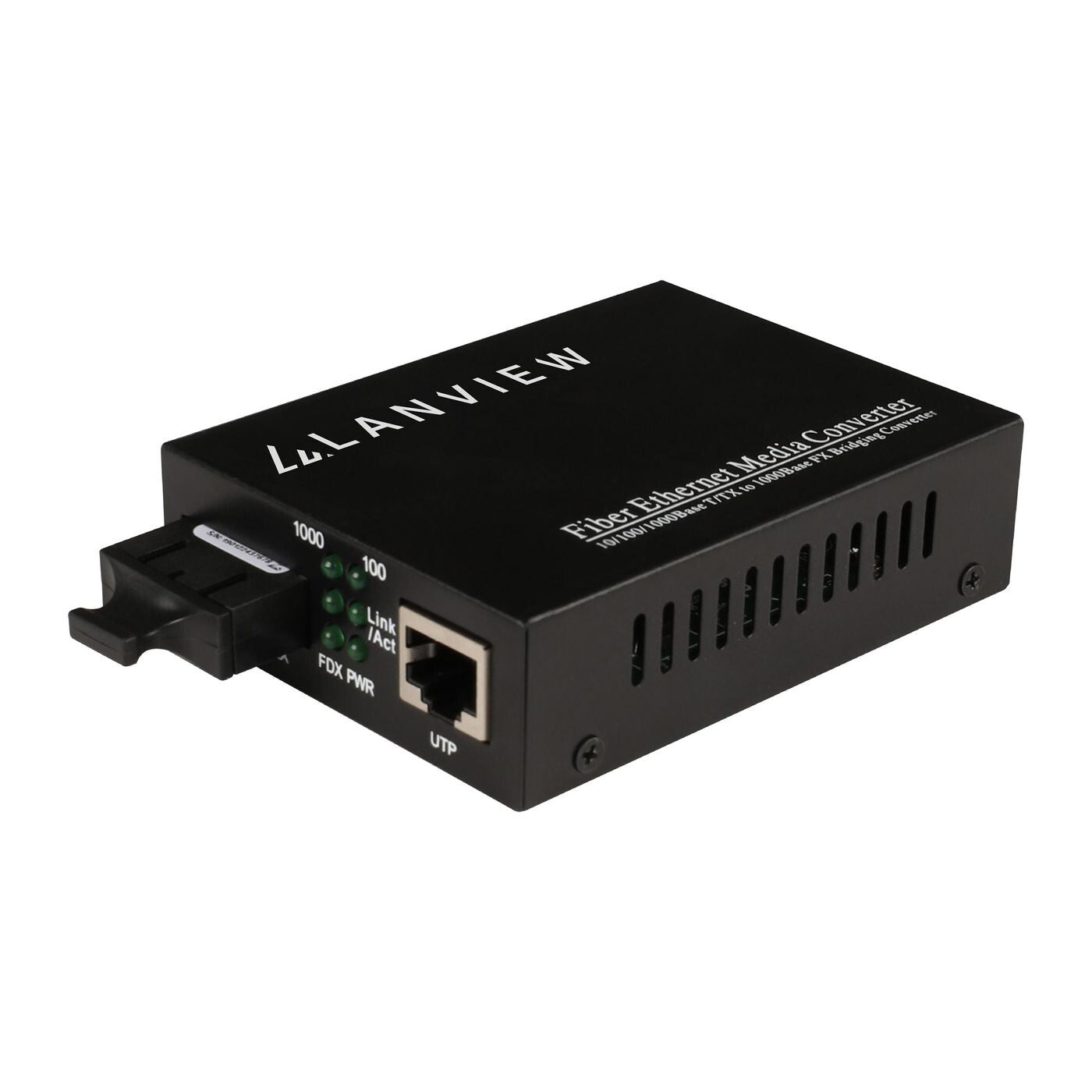

Lanview LVN-MED-SC-1000BASE-X network media converter Single-mode

Lanview LVN-MED-SC-1000BASE-X network media converter Single-mode

£27.89 GBP
£27.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVN-MED-SC-1000BASE-X

28 in stock

  • 1x RJ45 port and 1x fiber SC port
  • The Distance support to 80KM
  • Easy-to-view LED indicators provide status to monitor
  • network activity easily
  • Extends - fiber distance from MMF 550m up to 80km for single-mode- fiber
  • Provides switch con- gyration of Force /Auto transfer
  • mode for FX port
1-Port 10/100/1000X SC to 1-Port 10/100/1000T 802.3x Media Converter

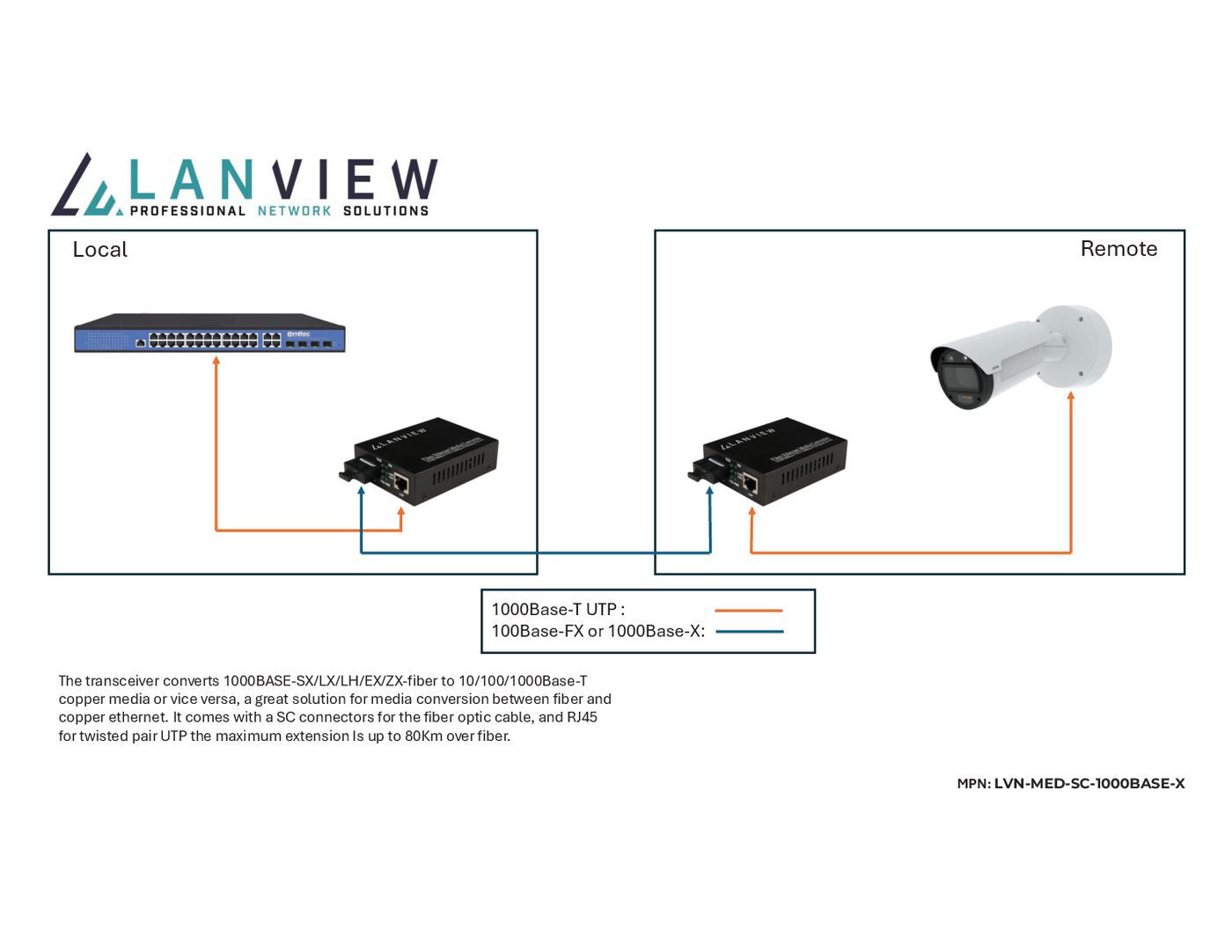

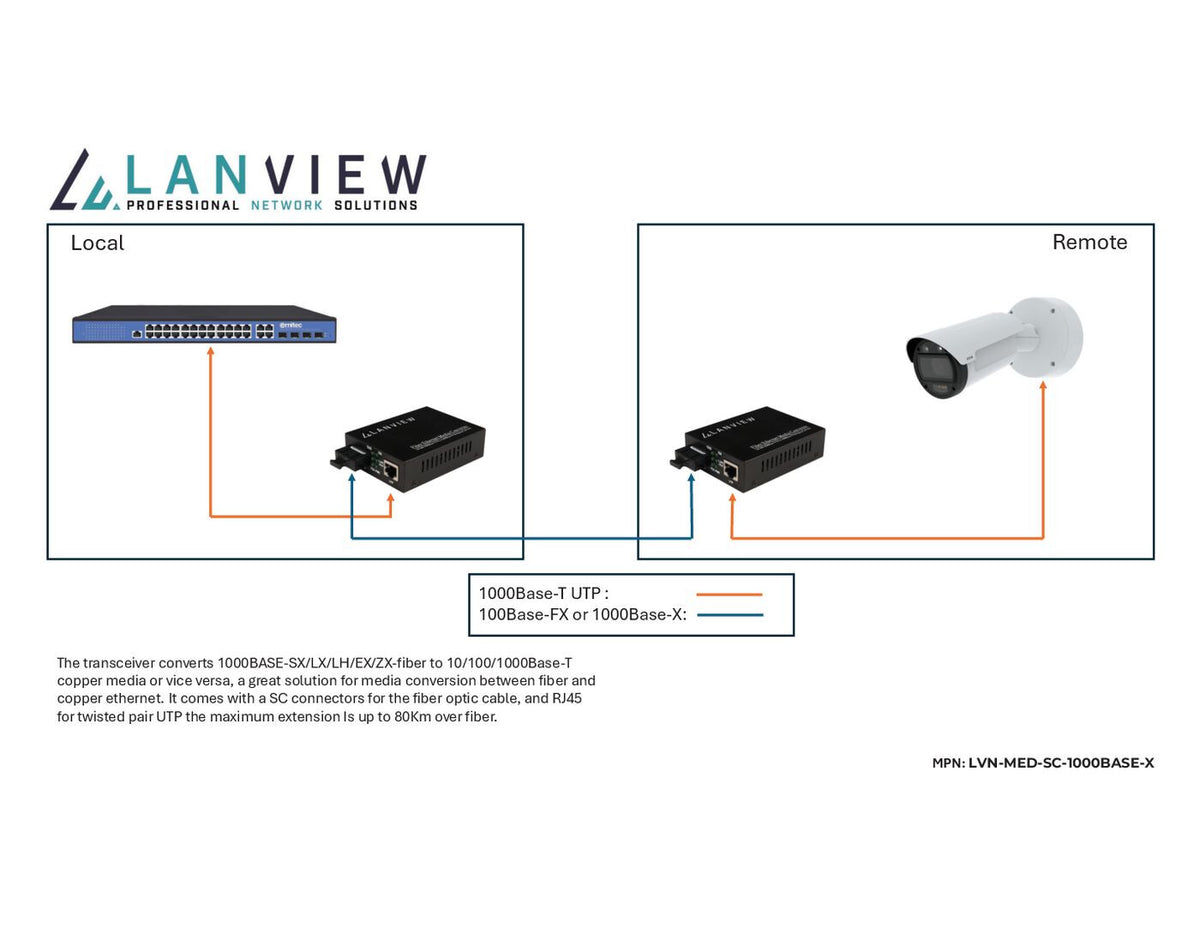

The transceiver facilitates the conversion of 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa.
it is engineered to transmit data for distances up to 80 kilometers.
Additionally, the SFP to Ethernet Converter can operate independently as a standalone device or in conjunction with Lanview's 19” system chassis.

Network
Networking standards IEEE 802.3u
Copper ethernet cabling technology 1000BASE-LX
Flow control support Yes
Duplex system Full
Cable types supported Cat5
Ports & interfaces
Connectivity technology Wired
Fiber optic connector SC
Performance
Fiber mode structure Single-mode
Fiber cable diameters supported (core/cladding) 9/125 µm
Design
International Protection (IP) code IP20
Housing material Metal
LED indicators Power
Certification CE, FCC, Rohs
Power
Input voltage 5 V
Input current 1 A
Management features
Plug and Play Yes
Weight & dimensions
Width 95 mm
Depth 78 mm
Height 23 mm
Weight 430 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Packaging data
Package width 150 mm
Package depth 100 mm
Package height 50 mm
Package weight 530 g
Packaging content
User guide Yes
Quick installation guide Yes
Technical details
Compliance certificates RoHS
Sustainability compliance Yes
Other features
Transmission distance (max) 20 km
Power requirements 5V 1A
Connector(s) RJ45, SC
