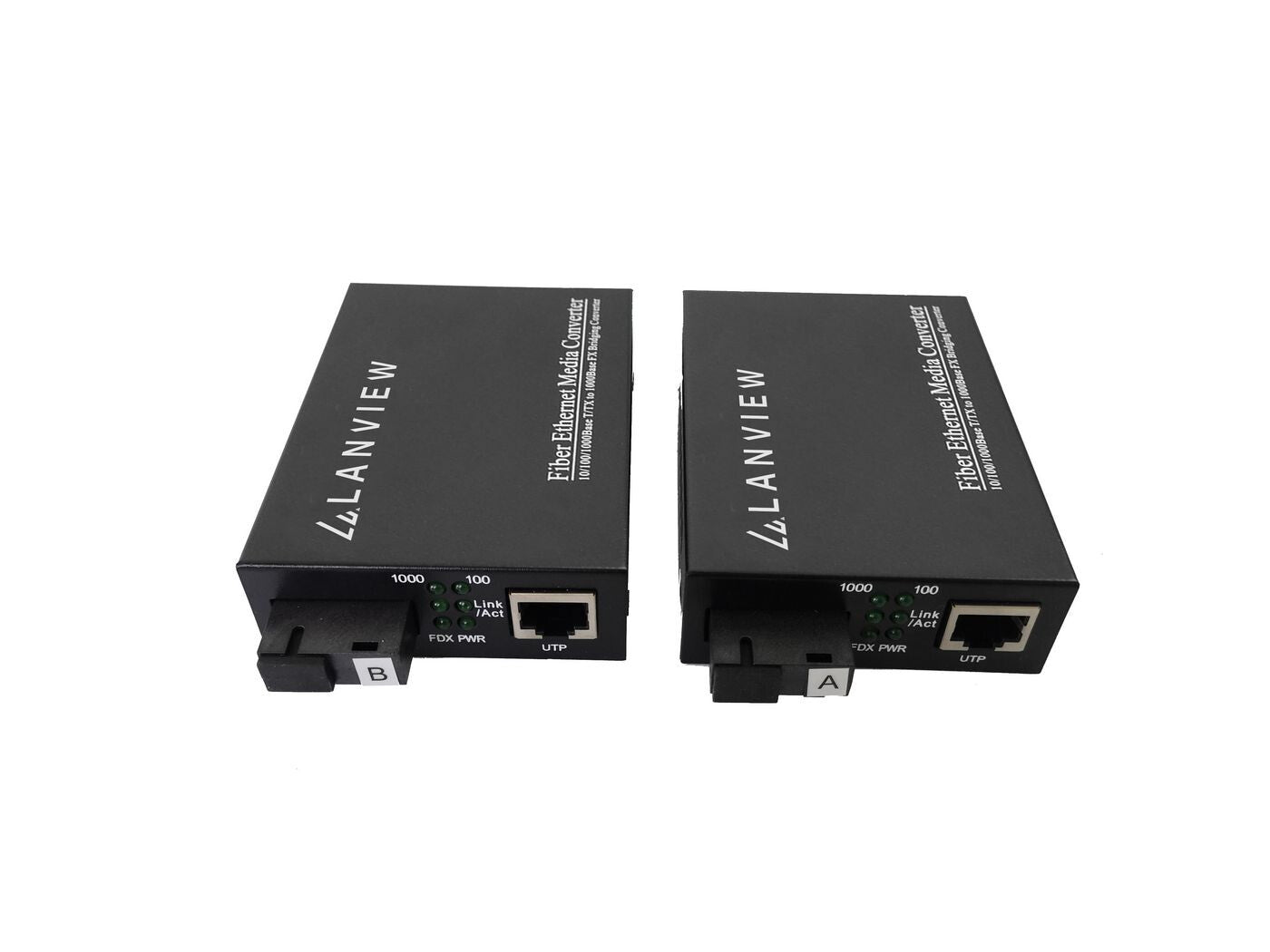

Lanview LVN-MED-SC-1000BASE-X-2 network media converter Single-mode
Lanview LVN-MED-SC-1000BASE-X-2 network media converter Single-mode
SKU:LVN-MED-SC-1000BASE-X-2
22 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 1x RJ45 port and 1x fiber SC port
- The Distance support to 20KM
- In conformity with safety code of FCC, CE and RoHS
- Support flow control
- Auto Negotiation
- Auto MDI/MDI-X
- Supports 10/100/1000M full/half duplex, easy upgrades

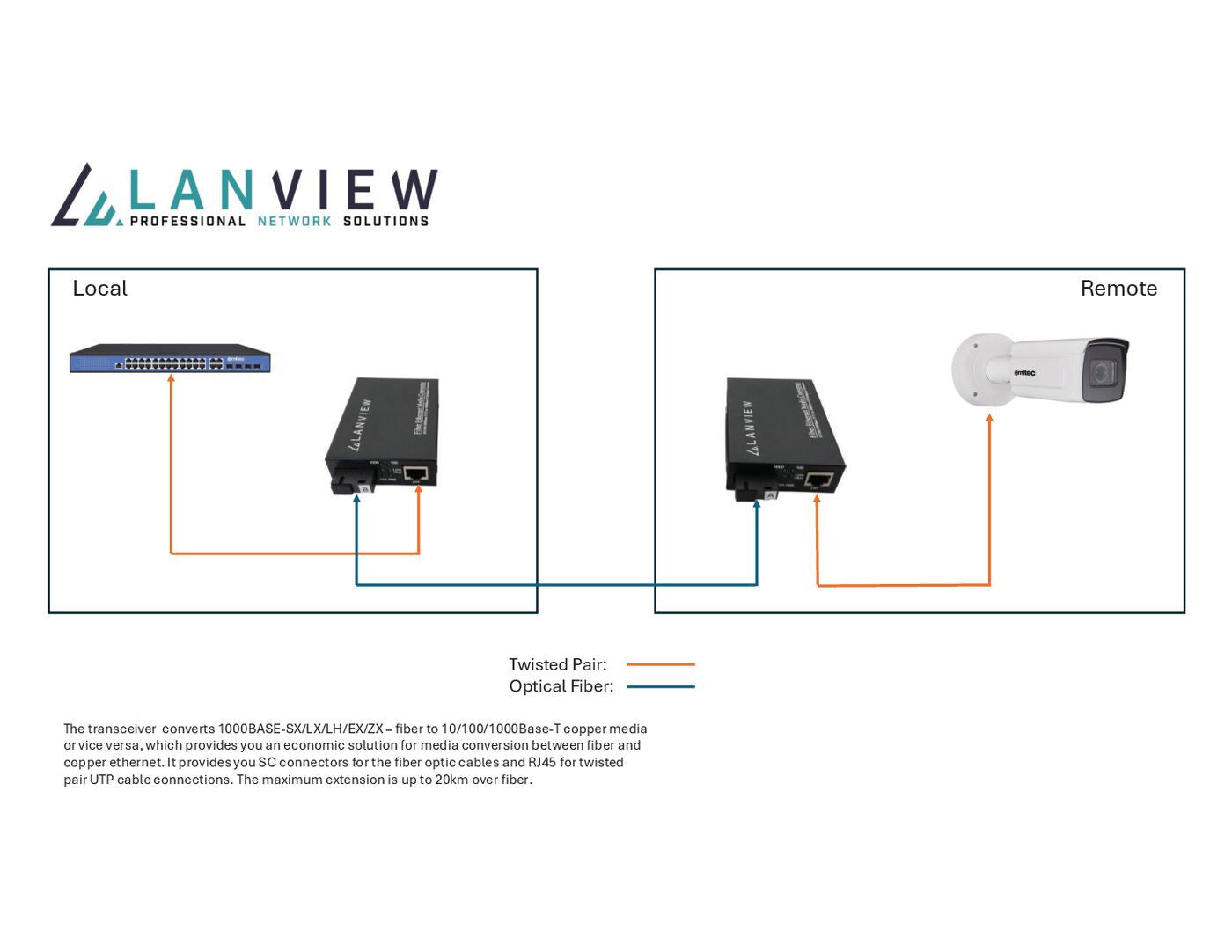

The transceiver facilitates the conversion from 1000BASE-SX/LX/LH/EX/ZX fiber to 10/100/1000Base-T copper media and vice versa, offering cost-effective solutions for media conversion between fiber and copper Ethernet.
It offers SC, FC, or ST connectors for fiber optic cables and an RJ45 connector for twisted pair UTP cable connections.
The device supports extensions up to 20km over fiber.
| Network | |
|---|---|
| Networking standards | IEEE 802.3u |
| Copper ethernet cabling technology | 1000BASE-LX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| Cable types supported | Cat5 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | SC |
| Performance | |
|---|---|
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Housing material | Metal |
| LED indicators | Power |
| Certification | CE, FCC, Rohs |
| Power | |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Management features | |
|---|---|
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 50 mm |
| Weight | 640 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
|---|---|
| Package width | 150 mm |
| Package depth | 100 mm |
| Package height | 50 mm |
| Package weight | 740 g |
| Packaging content | |
|---|---|
| User guide | Yes |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Transmission distance (max) | 20 km |
| Power requirements | 5V 1A |
| Connector(s) | RJ45, SC |
