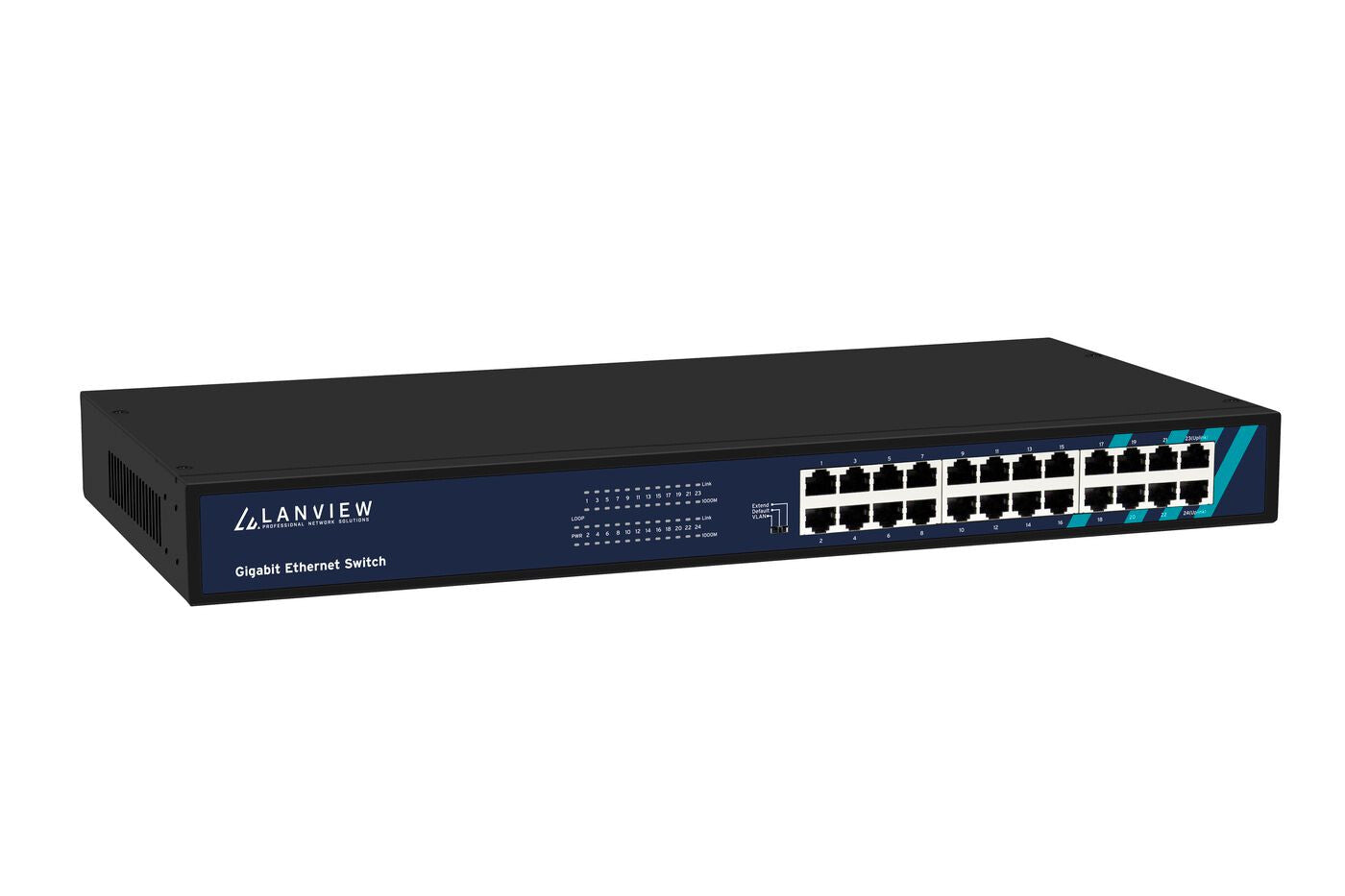

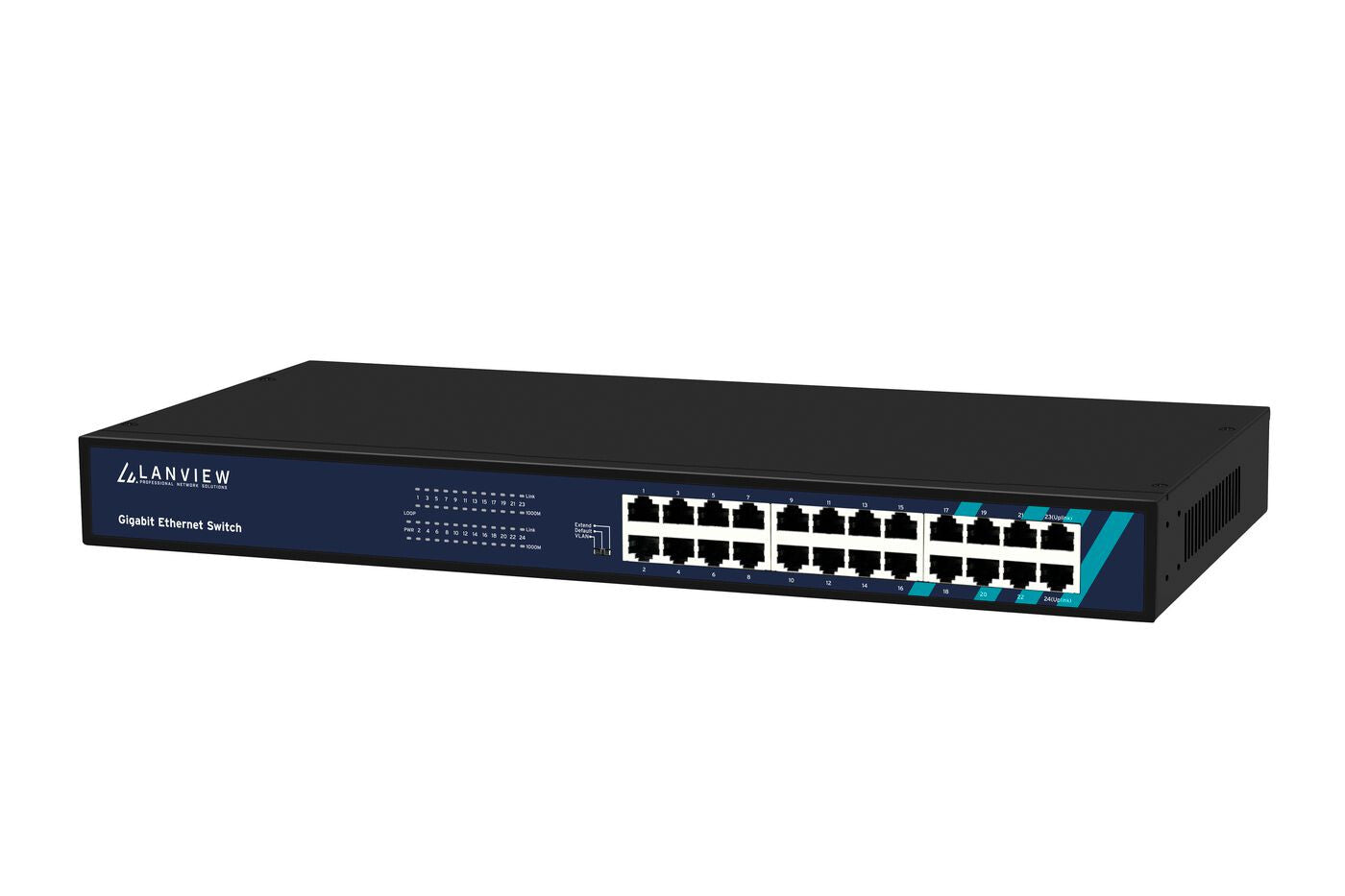

Lanview LVN-1UMOUNT-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)
Lanview LVN-1UMOUNT-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)
SKU:LVN-1UMOUNT-24PORT-1G
12 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Offers extensive connectivity options for high-speed devices.
- Each RJ45 port supports automatic adaptation to 10/100/1000Mbps speed.
- Supports VLAN, Default, and Extended modes for flexible network management.
- Automatic port flipping for simplified connections.
- Ports 1-8 support QoS
- Built-in loop alarm
- 19" Rack mounting brackets included

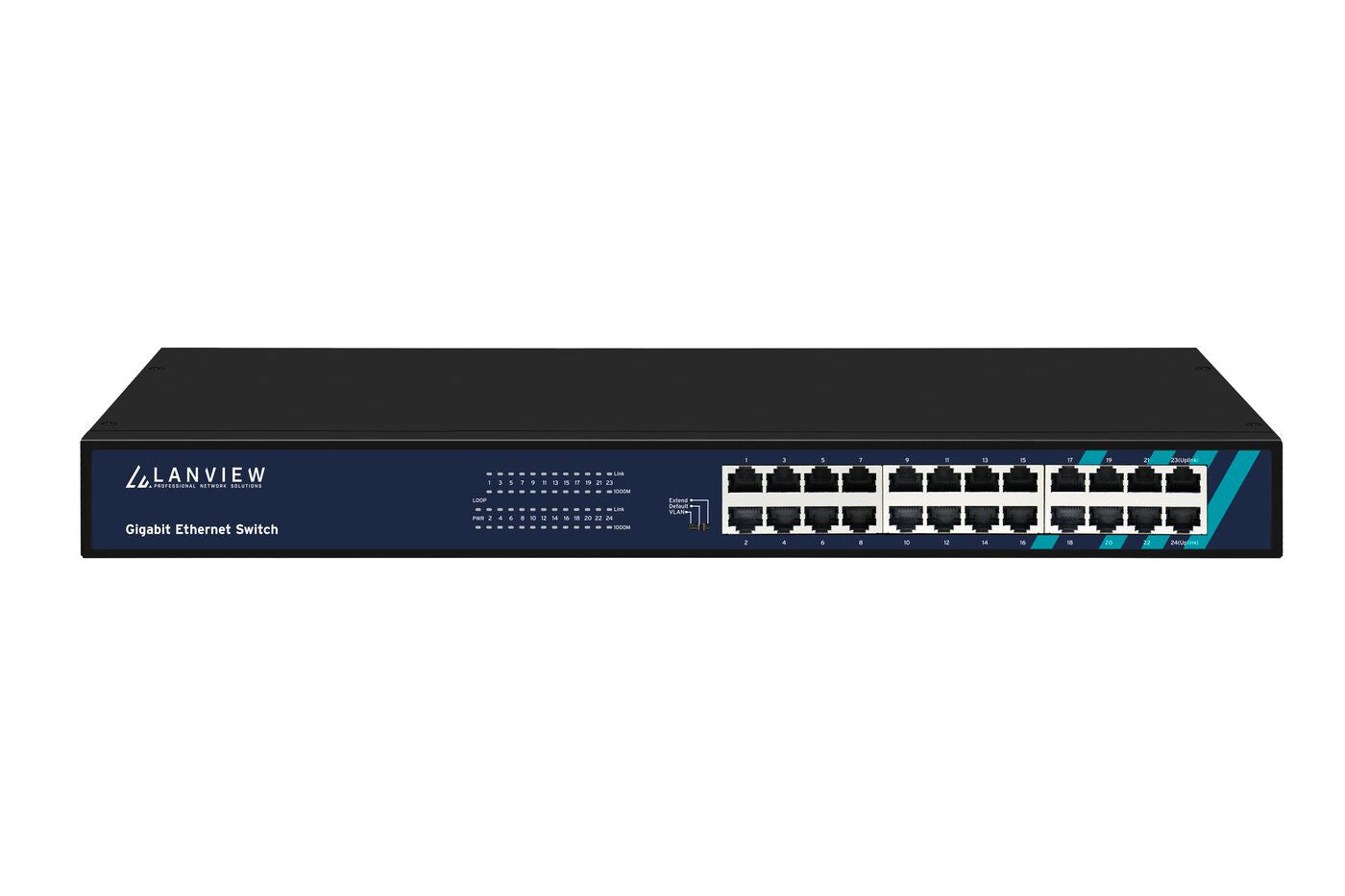

The Lanview LVN-1UMOUNT-24PORT-1G
is a high-performance, full gigabit intelligent Ethernet switch designed to meet the demands of modern networking environments.
Featuring 24 Gigabit RJ45 ports, this switch offers an impressive bandwidth of 48 Gbps, ensuring smooth and efficient data transmission.
It supports port isolation and boasts a transmission distance of up to 250 meters, making it ideal for a variety of applications.
With Quality of Service (QoS) for data prioritization and loop alarm capabilities, this switch guarantees reliable and optimized network performance.
It operates effectively in a wide temperature range of -10°C to 50°C and is designed for 1U rack-mounted installation.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
|---|---|
| Networking standards | IEEE 802.3 |
| Half duplex | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| Store-and-forward | Yes |
| Packet forwarding | Yes |
| Design | |
|---|---|
| Housing material | Metal |
| LED indicators | Link |
| On/off switch | No |
| Number of fans | 0 fan(s) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Power | |
|---|---|
| DC input voltage | 12 V |
| Input current | 2 A |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 290 mm |
| Height | 85 mm |
| Weight | 2.2 kg |
| Packaging data | |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
| Package width | 500 mm |
| Package depth | 290 mm |
| Package height | 85 mm |
| Package weight | 2.7 kg |
| Other features | |
|---|---|
| Material | Metal |
