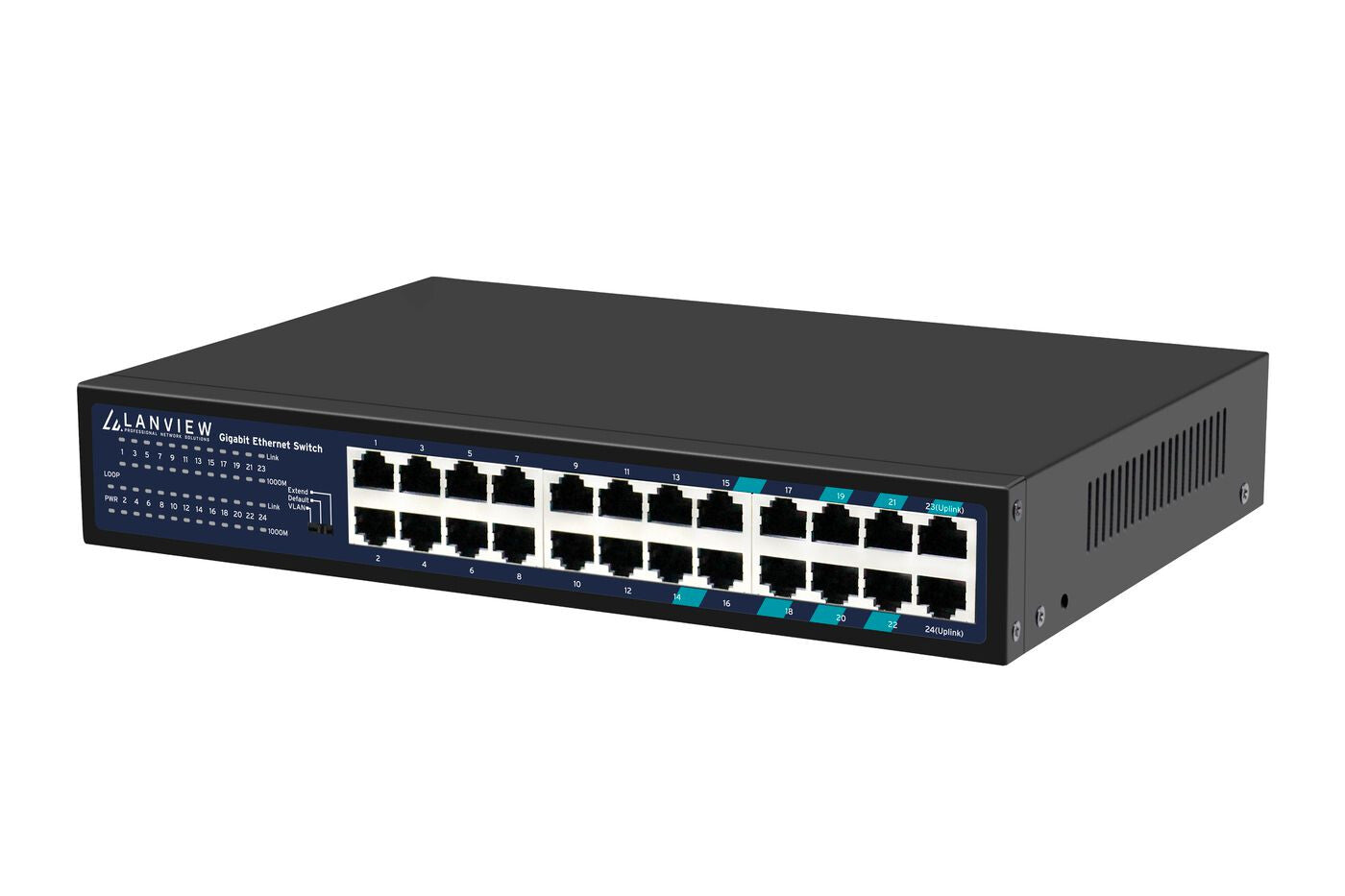

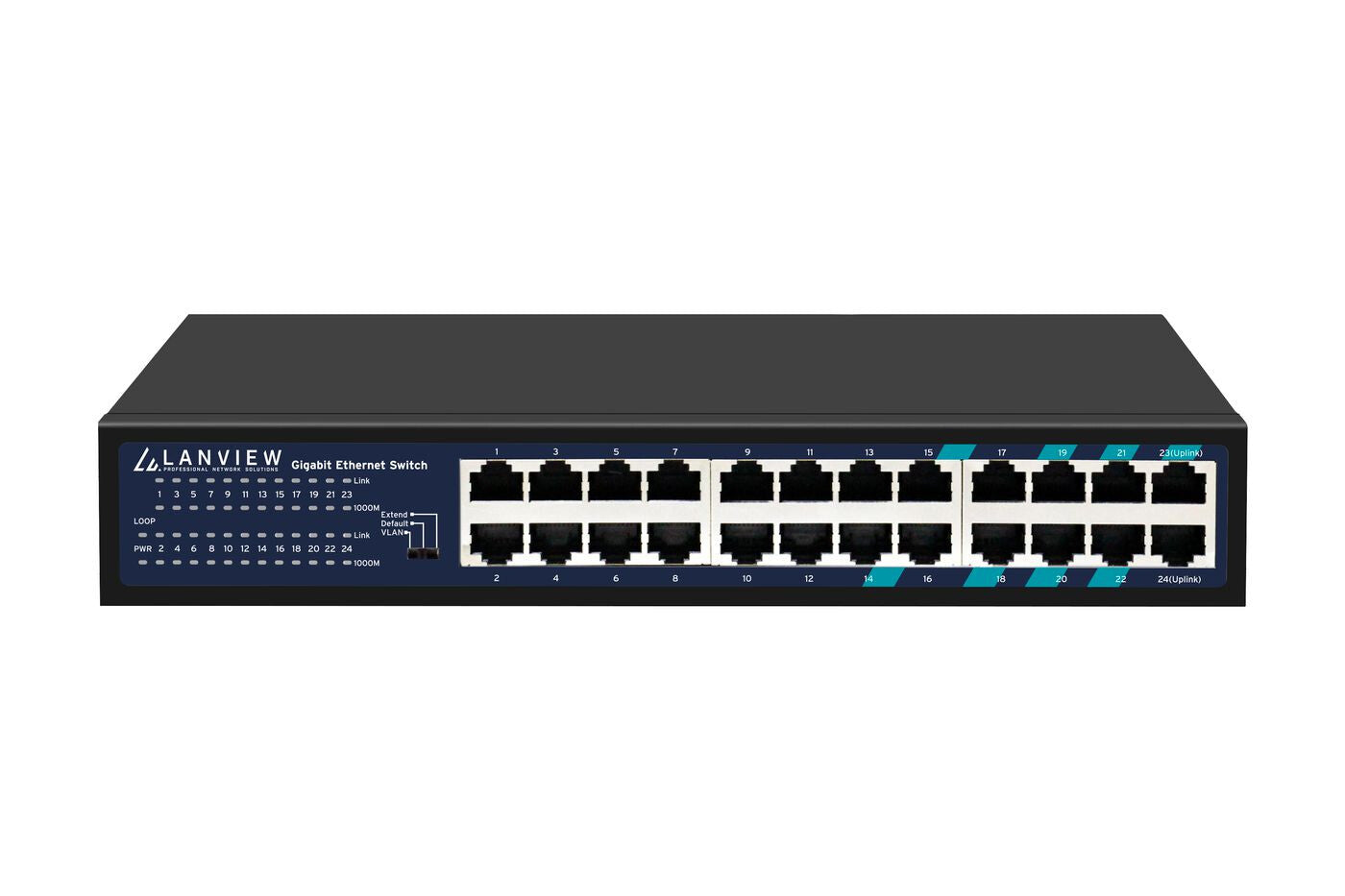

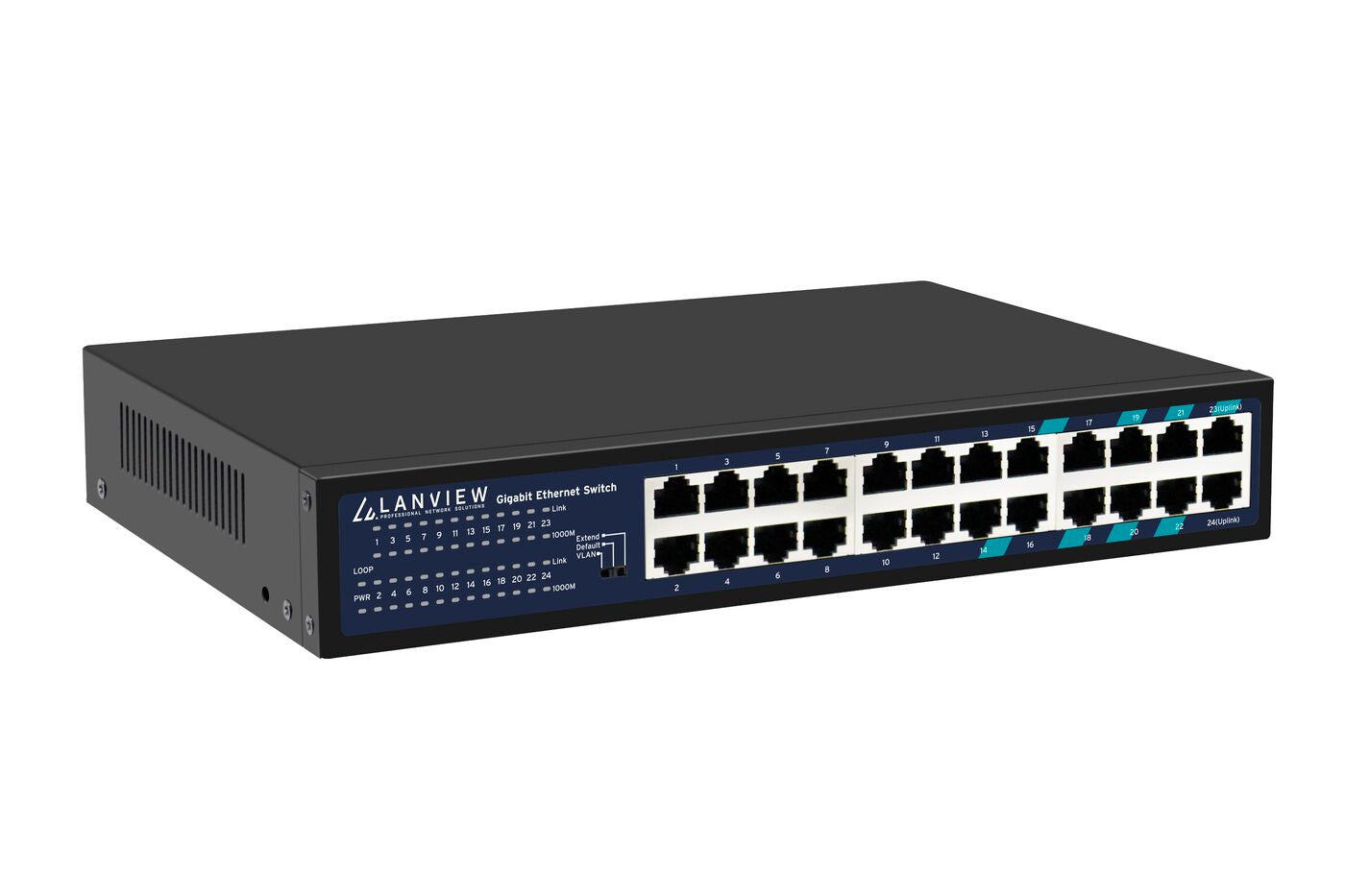

Lanview LVN-1U-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)

Lanview LVN-1U-24PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)

£70.18 GBP
£70.18 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LVN-1U-24PORT-1G

Low stock: 5 left

  • Offers extensive connectivity options for high-speed devices.
  • Each RJ45 port supports automatic adaptation to 10/100/1000Mbps speed.
  • Supports VLAN, Default, and Extended modes for flexible network management.
  • Automatic port flipping for simplified connections.
  • Ports 1-8 support QoS
Unmanaged 24-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

The Lanview LVN-1U-24PORT-1G
is a high-performance full gigabit intelligent Ethernet switch designed to enhance your network capabilities.
Featuring 24 Gigabit RJ45 ports with a robust bandwidth of 48 Gbps, this switch is engineered for optimal data transmission in both office and industrial environments.
It supports port isolation and an extended transmission distance of up to 250 meters.
Ideal for a wide temperature range of -10°C to 50°C, the LVN-1U-24PORT-1G
is equipped with advanced features like QoS data prioritization and loop alarm systems, making it a versatile choice for demanding networking applications.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.3
Half duplex Yes
Full duplex Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 48 Gbit/s
Forwarding rate 35.71 Mpps
Store-and-forward Yes
Packet forwarding Yes
Design
Housing material Metal
LED indicators Link
On/off switch No
Number of fans 0 fan(s)
Technical details
Warranty period 3 year(s)
Power
Surge protection Yes
Surge protection voltage 4 kV
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 312 mm
Depth 262 mm
Height 84 mm
Weight 1.16 kg
Packaging data
Manual Yes
Package width 312 mm
Package depth 262 mm
Package height 84 mm
Package weight 1.66 kg
Other features
Material Metal
