• Lanview LVN-1U-16PORT-1G network switch, Unmanaged
1 4

Lanview

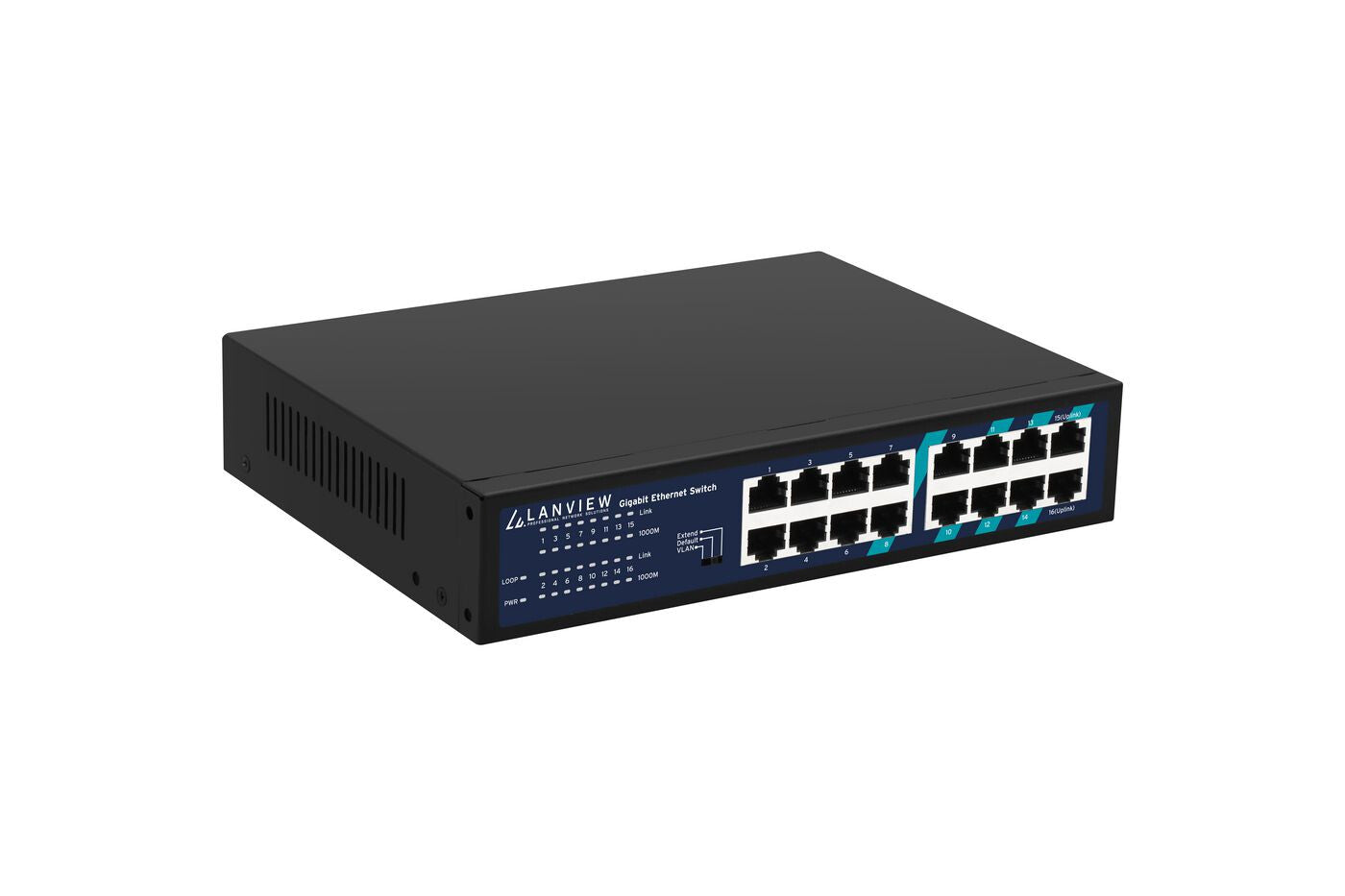

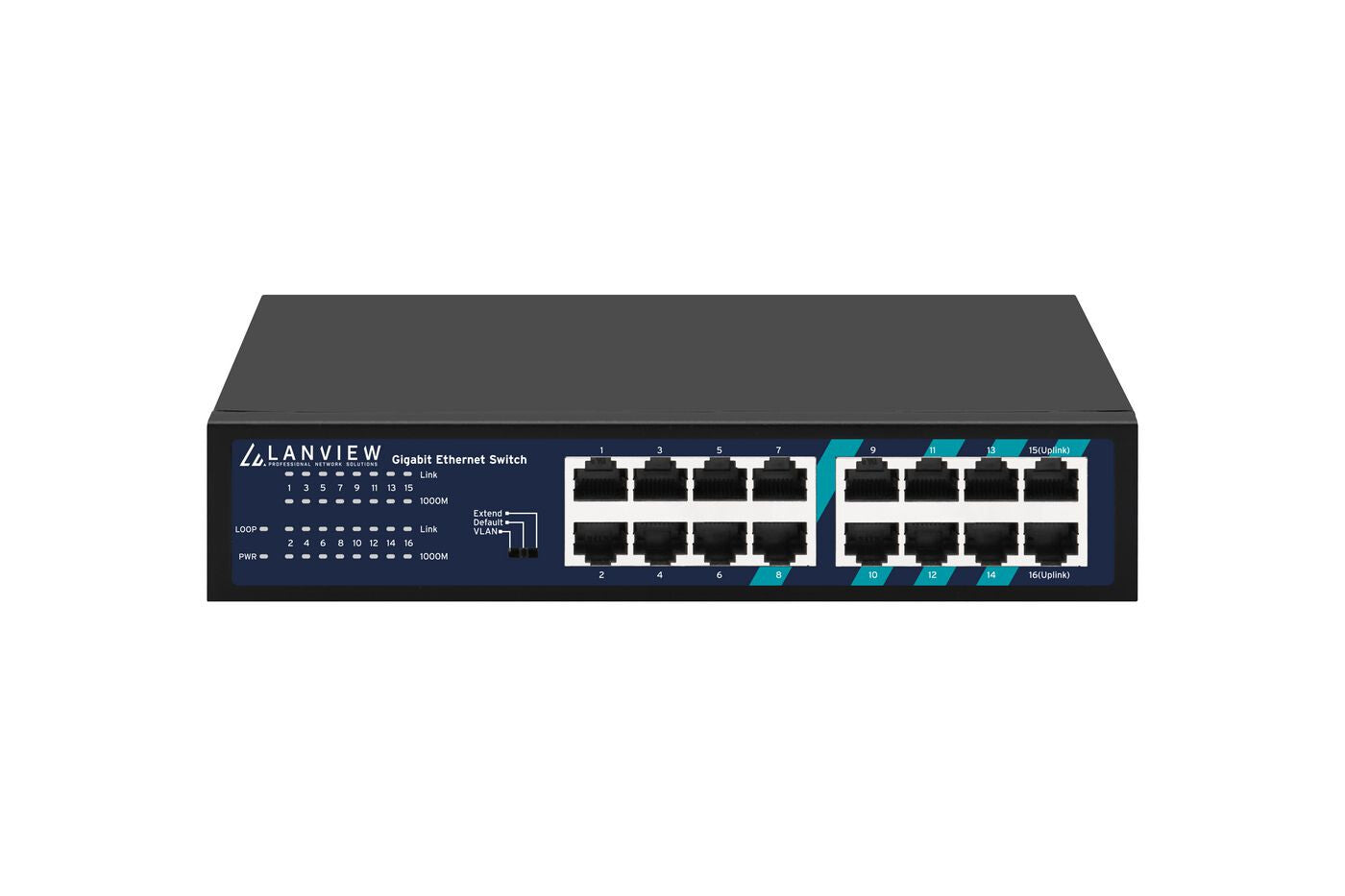

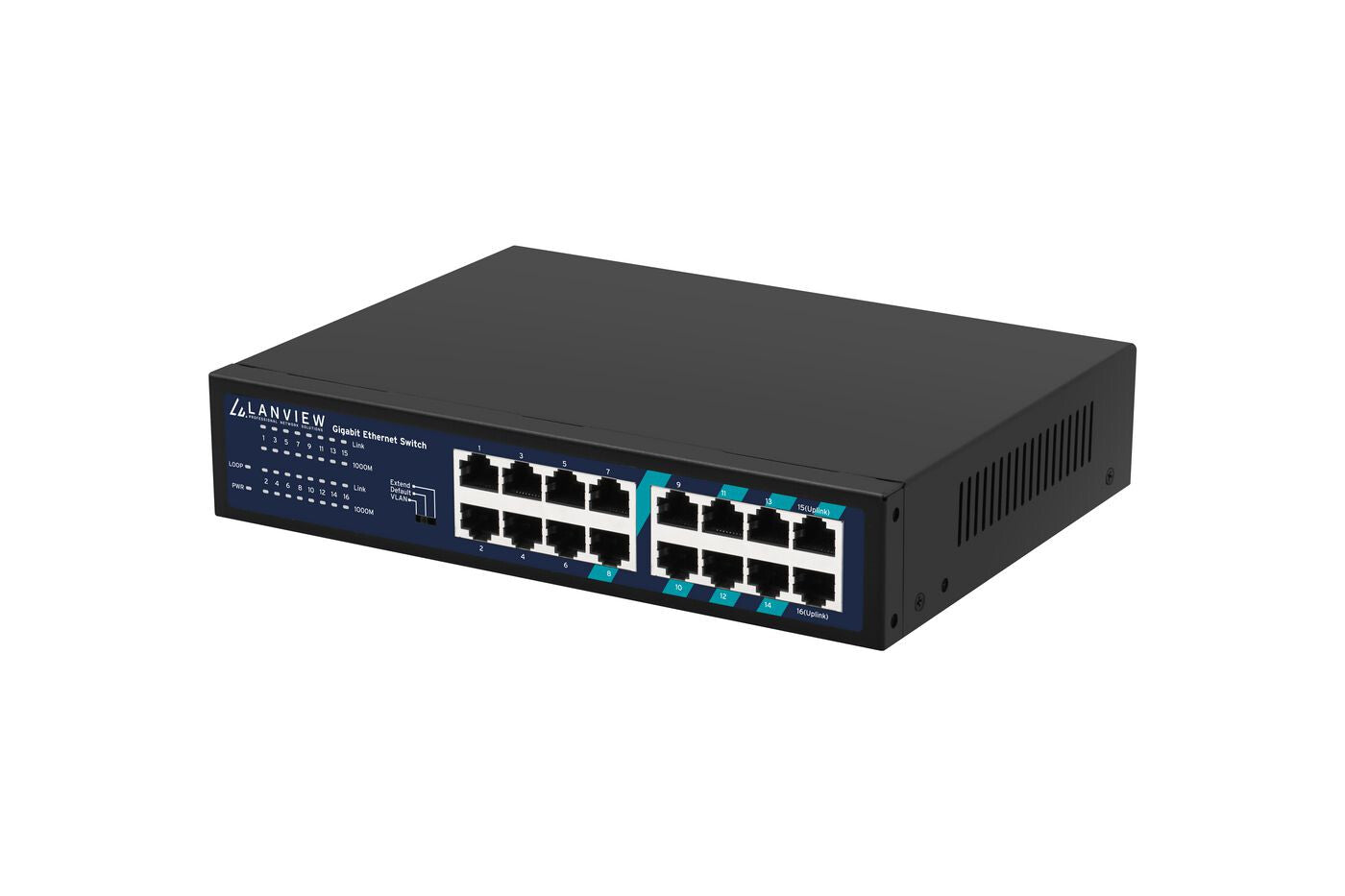

Lanview LVN-1U-16PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)

Lanview LVN-1U-16PORT-1G network switch Unmanaged Gigabit Ethernet (10/100/1000)

LVN-1U-16PORT-1G

£52.15 GBP£43.46 GBP
£0.00 GBP £52.15 GBP£43.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 4 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Loop Alarm Functionality
  • Ports 1-8 support QoS
  • Supports VLAN, Default, and Extended modes for flexible network management.
  • Automatic port flipping for simplified connections.
  • Each RJ45 port supports automatic adaptation to 10/100/1000Mbps speed.
  • 19" Rack Mounting Brackets included
Unmanaged 16-Port 10/100/1000Mbps Ethernet ports Full Gigabit Intelligent Ethernet Switch

Lanview LVN-1U-16PORT-1G
is a high-performance, Full Gigabit intelligent Ethernet switch featuring 16 Gigabit RJ45 ports.
With a robust bandwidth of 32 Gbps, this switch is engineered for optimal network performance.
It supports advanced features such as port isolation and a remarkable 250-meter transmission range, making it ideal for various applications.
Designed to operate effectively in a wide temperature range of -10°C to 50°C, it ensures reliable connectivity in diverse environments.
The switch also includes Quality of Service (QoS) for data prioritization and a loop alarm feature to enhance network reliability.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.3
Auto MDI/MDI-X Yes
Data transmission
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Forwarding rate 23.8 Mpps
Store-and-forward Yes
Packet forwarding Yes
Design
Housing material Metal
LED indicators Link
Technical details
Warranty period 3 year(s)
Power
Surge protection Yes
Surge protection voltage 4 kV
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%

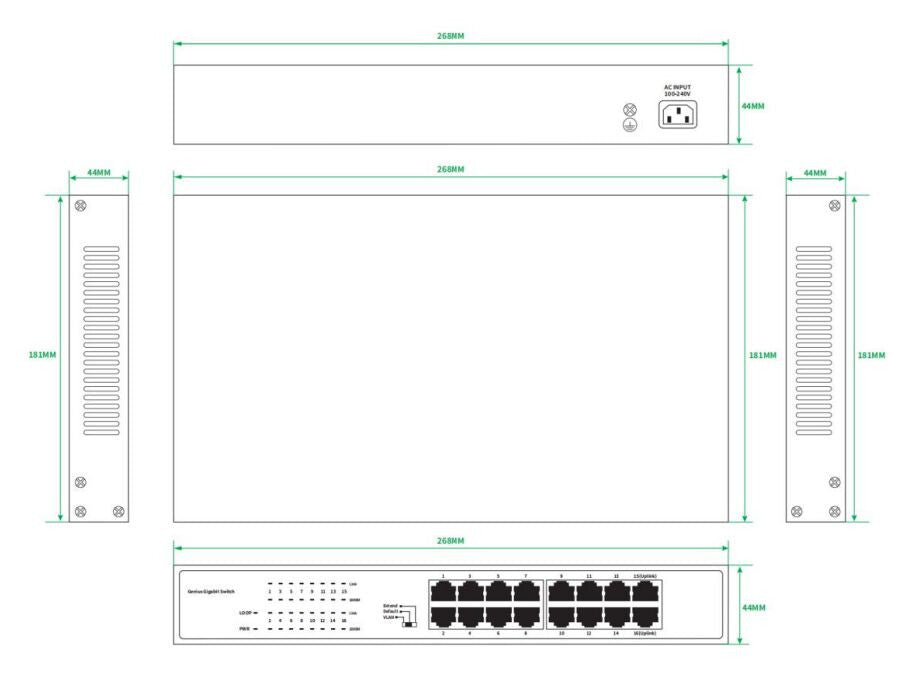

Weight & dimensions
Width 270 mm
Depth 180 mm
Height 84 mm
Weight 1 kg
Packaging data
Manual Yes
Package width 270 mm
Package depth 180 mm
Package height 84 mm
Package weight 1.5 kg
Other features
Material Metal
