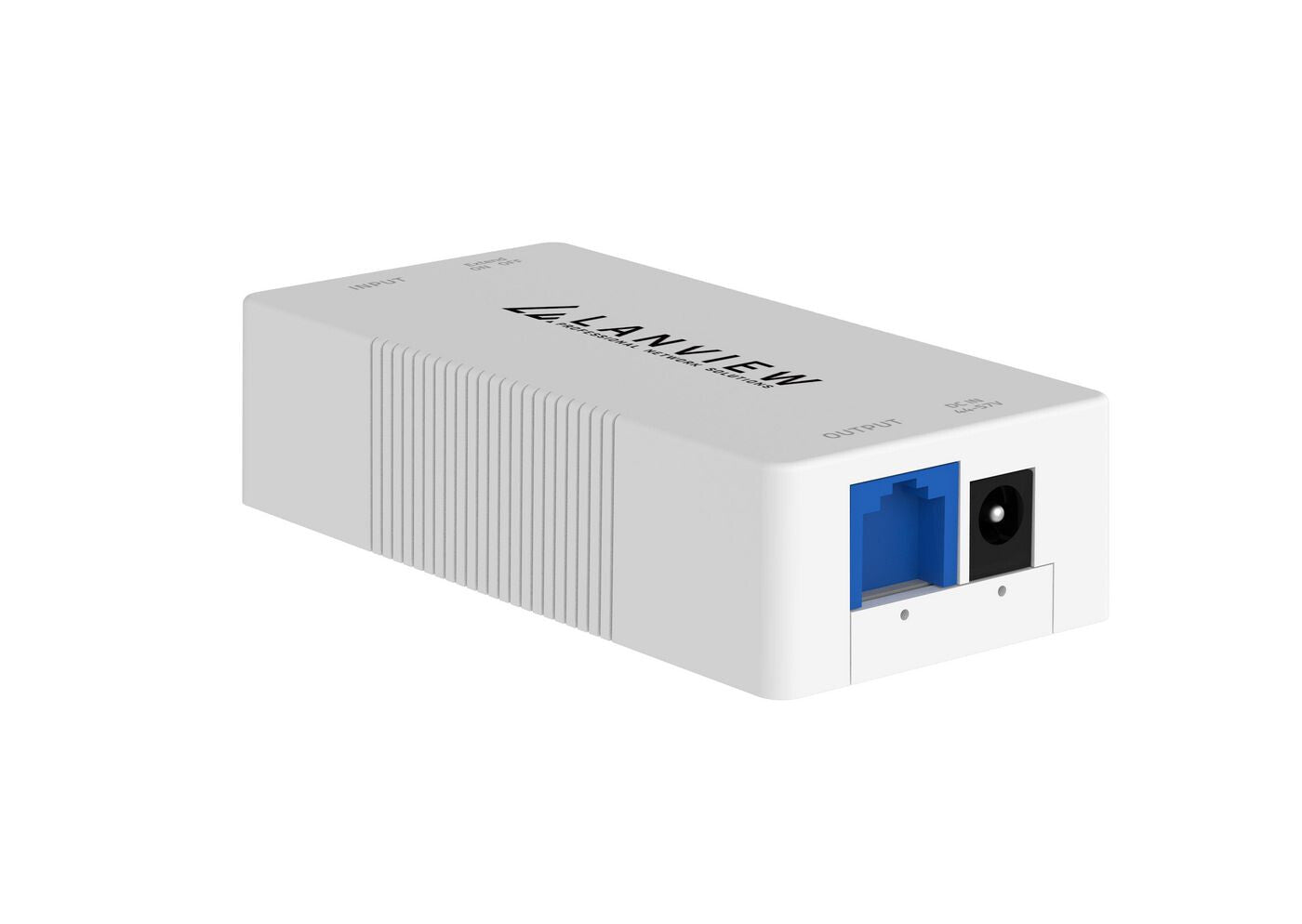

Lanview LVN-100MB-POE30W-EXTENDER-800M network extender White 100 Mbit/s
Lanview LVN-100MB-POE30W-EXTENDER-800M network extender White 100 Mbit/s
SKU:LVN-100MB-POE30W-EXTENDER-800M
93 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 1 *100Mbps PoE in port+1 *100Mbps PoE out port
- Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
- Support IEEE802.3af/at power supply standard
- Supports 800 meter transmission
- Support network and PoE expansion

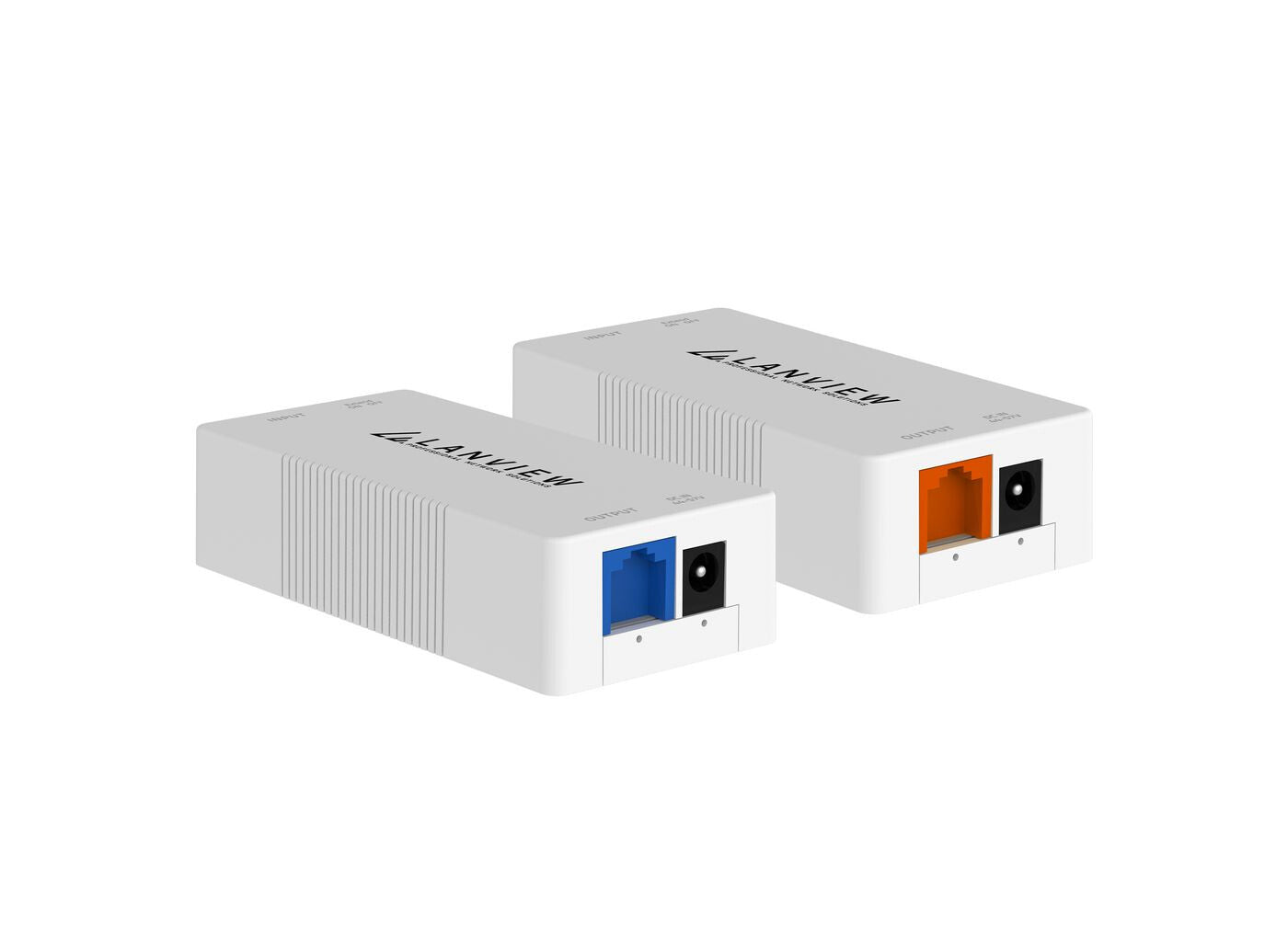

Lanview LVN-100MB-POE30W-EXTENDER-800M Ethernet PoE Extenders
The LVN-100MB-POE30W-EXTENDER-800M from Lanview are a high-performance 10/100Mbps Ethernet PoE extenders engineered to expand your network reach with ease and reliability.
Designed for long-distance data and power transmission, these units are ideal for installations in remote or hard-to-access areas where power sources are limited.
Built to meet industry standards, both models deliver stable connectivity and efficient power delivery, making them suitable for both residential and industrial environments.
Whether you're upgrading an existing setup or deploying a new network, Lanview’s PoE extenders offer a dependable solution for seamless integration and extended coverage.
| Performance | |
|---|---|
| Maximum transfer distance | 800 m |
| Ethernet LAN data rates | 100 Mbit/s |
| Packet forwarding rate (100 Mbps) | 0.297 pps |
| Flow control support | Yes |
| Plug and Play | Yes |
| Network | |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Design | |
|---|---|
| Product colour | White |
| Rack mounting | No |
| Rack capacity | 0U |
| Quantity per pack | 1 pc(s) |
| On/off switch | Yes |
| Power | |
|---|---|
| Output voltage | 44-57 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 50 mm |
| Depth | 27 mm |
| Height | 102 mm |
| Weight | 60 g |
| Packaging data | |
|---|---|
| Package width | 50 mm |
| Package depth | 27 mm |
| Package height | 102 mm |
| Package weight | 65 g |
| Logistics data | |
|---|---|
| Master (outer) case width | 295 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 275 mm |
| Master (outer) case gross weight | 14 kg |
| Products per master (outer) case | 200 pc(s) |
