Kioxia

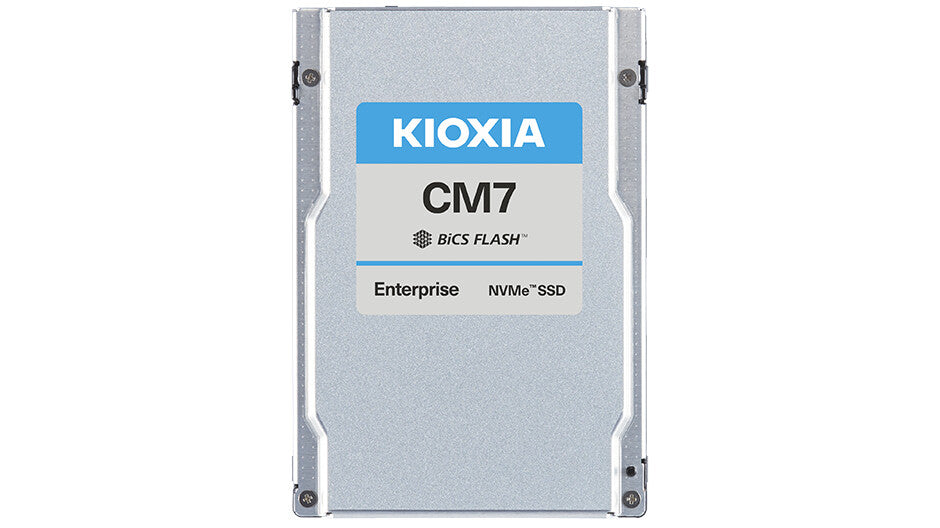

Kioxia CM7-R 15.4 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC

Kioxia CM7-R 15.4 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC

£8,534.60 GBP
£8,534.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KCMYXRUG15T3

122 in stock

  • PCIe® 5.0, NVMe™ 2.0 specification compliant
  • Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
  • Form factor: 2.5-inch, 15 mm thickness
  • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
  • SFF-TA-1001 conformant (U.3)
  • Dual-port design for high availability applications
  • High performance with lower power consumption
  • Power loss protection (PLP) and end-to-end data protection
  • Suited for 24x7 enterprise workloads
  • Security options: SIE, SED, FIPS SED
  • Software defined storage and virtualization
  • Data warehousing
  • Online transaction processing (OLTP)
  • (transactional and relational databases)
  • Business intelligence
  • Artificial intelligence and machine learning
15TB, 2.5" SSD, PCIe 5.0, BICS FLASH TLC, 14000-7000MB/s, 2400k-300k IOPS, MTTF 2.5 mil h, 12V, 25W, 69.8x100.4x15mm, 130g

Enterprise NVMe™ Read Intensive SSD

KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

Features
SSD form factor 2.5"
SSD capacity 15.4 TB
Interface PCI Express 5.0
NVMe Yes
NVMe version 2.0
Memory type BiCS FLASH TLC
Component for PC/Laptop
Hardware encryption Yes
Security algorithms FIPS 140-3
Data transfer rate 128 Gbit/s
Read speed 14000 MB/s
Write speed 7000 MB/s
Random read (4KB) 2400000 IOPS
Random write (4KB) 300000 IOPS
Drive writes per day (DWPD) 1
Mean time between failures (MTBF) 2500000 h
Protection features Shock resistant, Vibration proof
Power
Operating voltage 12 V
Power consumption (max) 25 W
Power consumption (standby) 5.5 W
Operational conditions
Operating temperature (T-T) 0 - 73 °C
Storage temperature (T-T) -40 - 85 °C
Minimum operating temperature 0 °C
Maximum operating temperature 73 °C
Operating relative humidity (H-H) 5 - 95%
Operating vibration 2.17 G
Operating shock 1000 G
Weight & dimensions
Width 69.8 mm
Depth 100.4 mm
Height 15 mm
Weight 130 g
