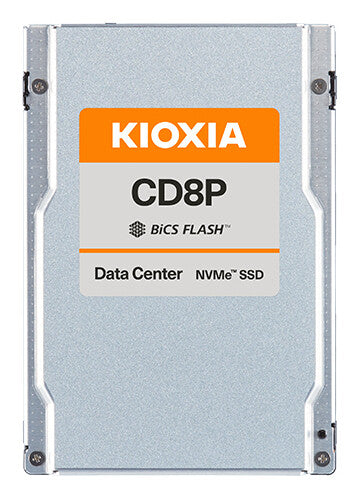

Kioxia CD8P-V 6.4 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC

Kioxia CD8P-V 6.4 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC

£4,174.19 GBP
£4,174.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KCD8XPUG6T40

Low stock: 10 left

  • PCIe® 5.0, NVMe™ 2.0 specification compliant
  • Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
  • Form factor: 2.5-inch, 15 mm thickness
  • Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
  • Single-port design, optimized for data center class workloads
  • Consistent performance and reliability for demanding 24x7 environments
  • Designed for high-density storage deployments
  • Power loss protection (PLP) and end-to-end data correction
6400GB, 2,5", PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, Read 12000 MB/s, Write 5500 MB/s, Silver, 130g

KIOXIA CD8P-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-V Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 400K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-V Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB, making them well-suited for hyperscale data center applications.

Features
SSD form factor 2.5"
SSD capacity 6.4 TB
Interface PCI Express 5.0
NVMe Yes
NVMe version 2.0
Memory type BiCS FLASH TLC
Component for Server/workstation
Target workload Mixed Use (MU)
Random read (4KB) 2000 IOPS
Random write (4KB) 400 IOPS
H/W PLP function Yes
End-to-End Data Protection Yes
Drive writes per day (DWPD) 3
Mean time between failures (MTBF) 2500000 h
Protection features Shock resistant, Vibration proof
Power
Operating voltage 12 V
Power consumption (max) 21 W
Power consumption (standby) 5 W
Operational conditions
Operating temperature (T-T) 0 - 73 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Operating vibration 2.17 G
Operating shock 1000 G
Technical details
Warranty period 5 year(s)
Weight & dimensions
Width 69.8 mm
Depth 15 mm
Height 100.5 mm
Weight 130 g
Other features
Product colour Silver
