Kingston Technology

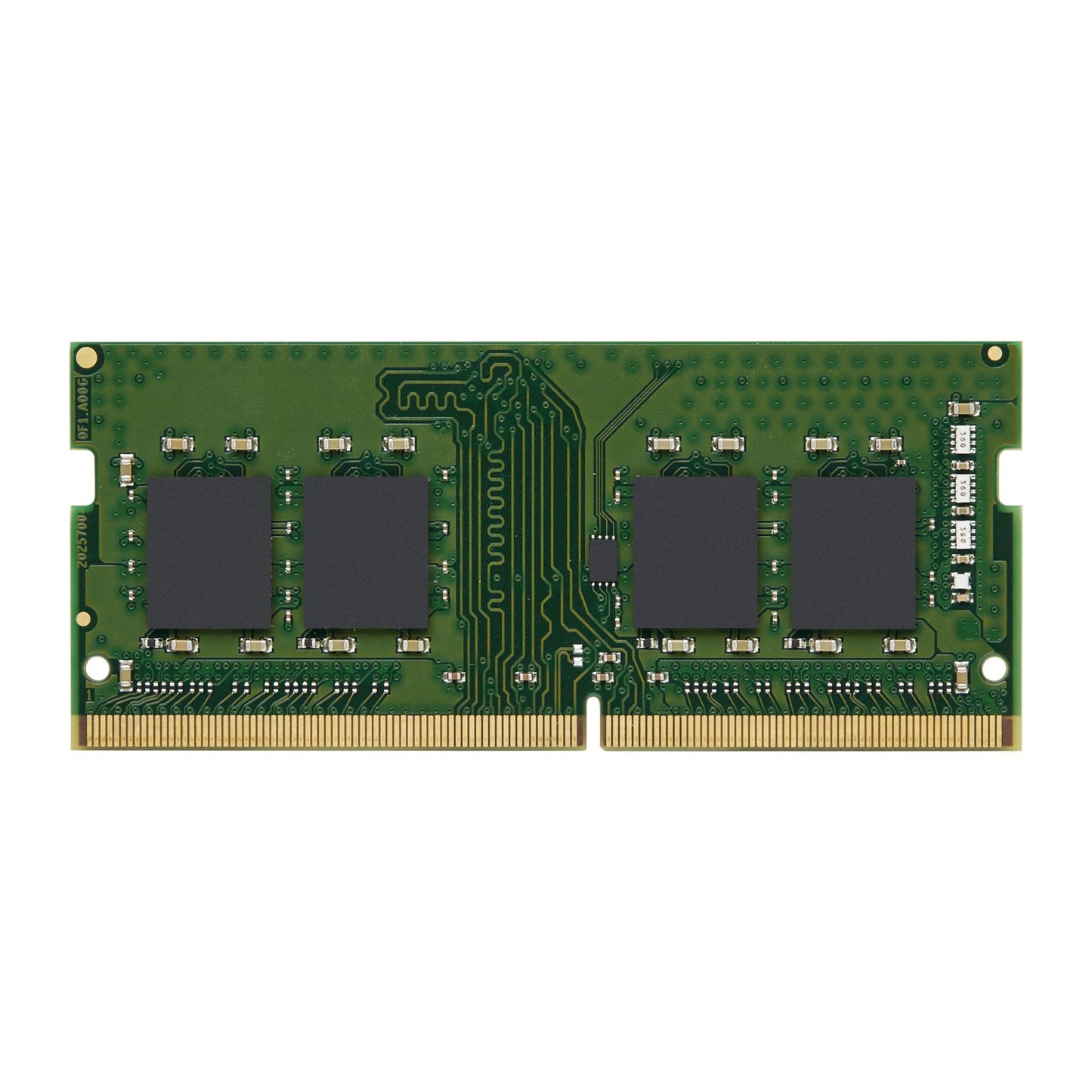

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s 260-pin SO-DIMM

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4 3200 MT/s 260-pin SO-DIMM

£134.08 GBP
£134.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KVR32S22S8/8

20 in stock

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
8GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

Features
Buffered memory type Unregistered (unbuffered)
Internal memory 8 GB
Memory layout (modules x size) 1 x 8 GB
Internal memory type DDR4
Component for Laptop
Memory form factor 260-pin SO-DIMM
ECC No
CAS latency 22
Memory data transfer rate 3200 MT/s
Memory voltage 1.2 V
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
Country of origin Taiwan
Lead plating Gold
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
general_information_attribute_container_name
attribute_product_family_name ValueRAM
Sustainability
Doesn't contain Halogen
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 69.6 mm
Height 30 mm
Logistics data
Harmonized System (HS) code 84733020
