Kingston Technology

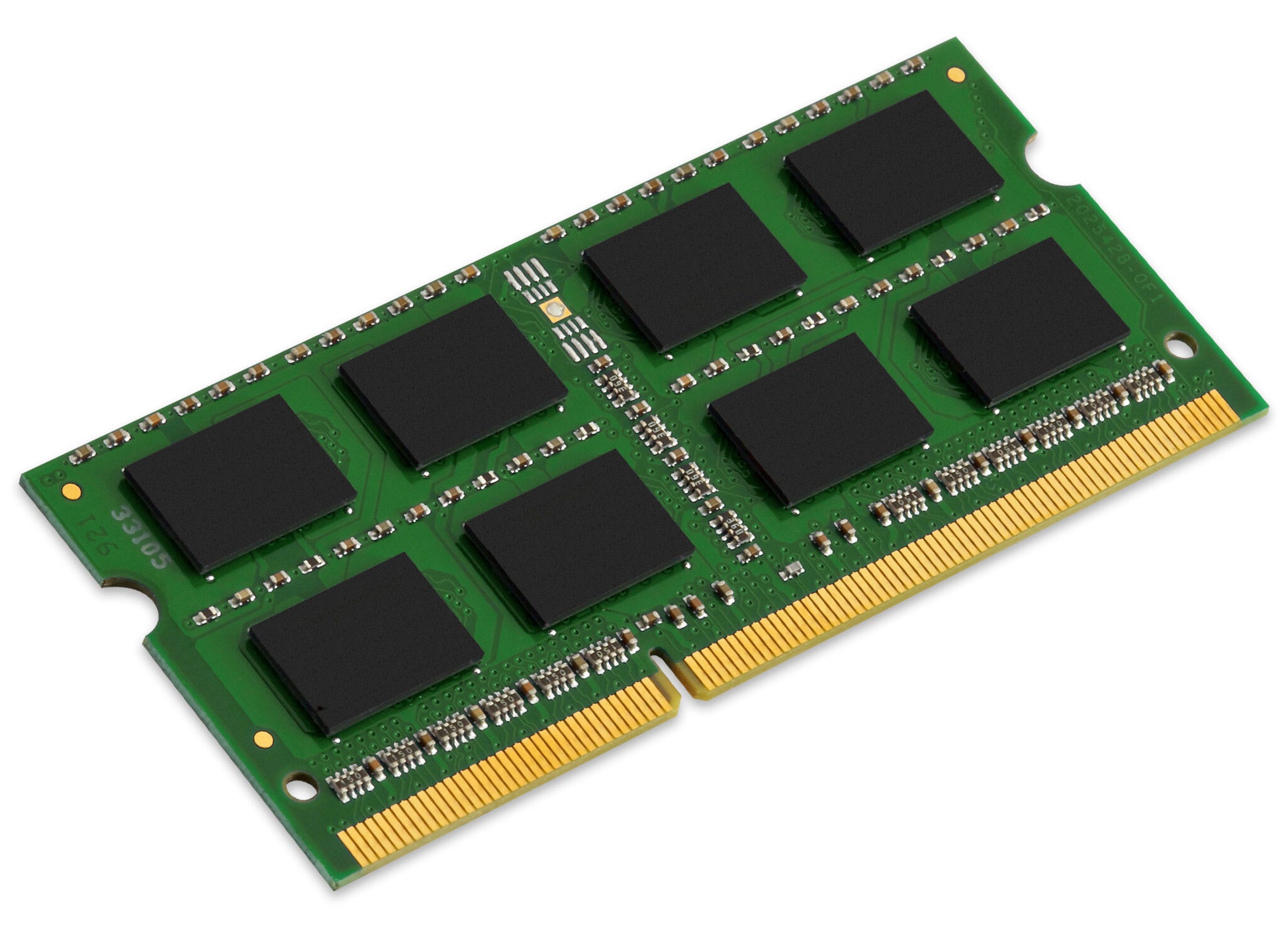

Kingston Technology ValueRAM memory module 4 GB 1 x 4 GB DDR3 1600 MT/s 204-pin SO-DIMM

Kingston Technology ValueRAM memory module 4 GB 1 x 4 GB DDR3 1600 MT/s 204-pin SO-DIMM

£38.88 GBP
£38.88 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KVR16S11S8/4

Low stock: 6 left

  • JEDEC 1.5V Power Supply
  • VDDQ = 1.5V
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal banks
  • Programmable CAS latency: 11, 10, 9, 8, 7, 6, 5
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)
  • Bi-directional Differential Data Strobe
  • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº
  • Asynchronous Reset
  • PCB: Height 1.180” (30.00mm), double sided component
ValueRam

Kingston Technology is the world's independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only, Kingston ValueRAM memory modules come with a lifetime warranty.

Features
Buffered memory type Unregistered (unbuffered)
Internal memory 4 GB
Memory layout (modules x size) 1 x 4 GB
Internal memory type DDR3
Component for Laptop
Memory form factor 204-pin SO-DIMM
ECC No
CAS latency 11
Memory data transfer rate 1600 MT/s
Memory bus 64 bit
Memory ranking 1
Memory voltage 1.5 V
Module configuration 512M X 64
Row cycle time 48.125 ns
Refresh row cycle time 260 ns
Row active time 35 ns
Country of origin Taiwan
Lead plating Gold
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
general_information_attribute_container_name
attribute_product_family_name ValueRAM
Weight & dimensions
Width 67.6 mm
Height 30 mm
Packaging data
Package type SO-DIMM
Logistics data
Harmonized System (HS) code 84733020
Other features
Chips organisation X8
Internal memory 4096 MB
Memory layout 1 x 4096 MB
Error indication No
Bus clock rate 1600 MHz
