Kingston Technology

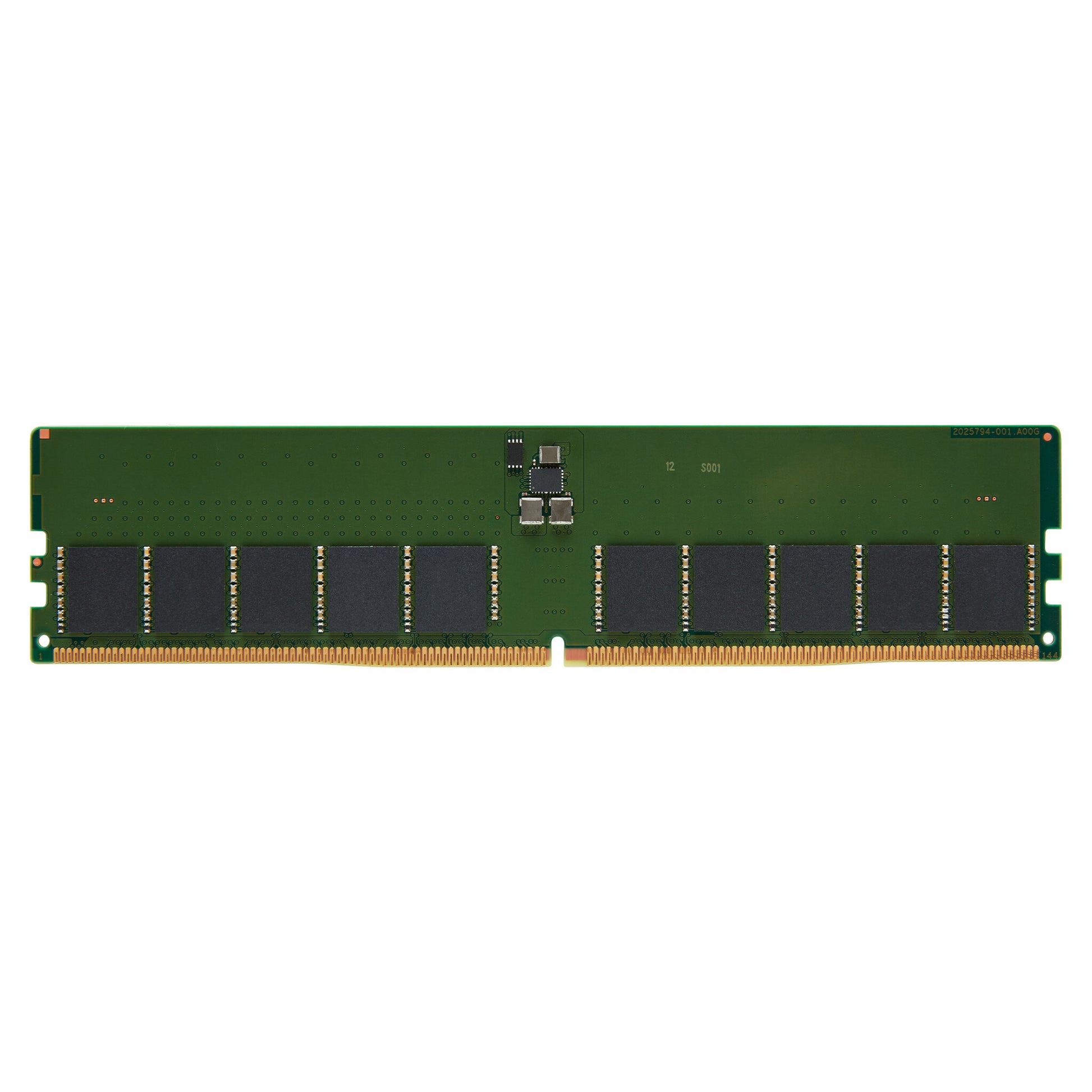

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 5600 MT/s 288-pin DIMM ECC

Kingston Technology KSM56E46BD8KM-32HA memory module 32 GB 1 x 32 GB DDR5 5600 MT/s 288-pin DIMM ECC

£950.60 GBP
£950.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KSM56E46BD8KM-32HA

38 in stock

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • x72 ECC (x36, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
32GB, DDR5, 5600MT/s, ECC, Unbuffered, DIMM, CL46, 2Rx8, 1.1V, 288-pin, 16Gbit, Hynix A

Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Buffered memory type Unregistered (unbuffered)
Internal memory 32 GB
Memory layout (modules x size) 1 x 32 GB
Internal memory type DDR5
Component for Server
Memory form factor 288-pin DIMM
ECC Yes
On-Die ECC Yes
CAS latency 46
Memory data transfer rate 5600 MT/s
Memory ranking 2
Memory voltage 1.1 V
Module configuration 4096M x 72
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
Row Precharge Time (TRP) 16
Programming power voltage (VPP) 1.8 V
SPD profile Yes
Product colour Black, Green
Lead plating Gold
JEDEC standard Yes
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Storage temperature (T-T) -55 - 100 °C
Sustainability
Doesn't contain Halogen
Sustainability compliance Yes
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
