Kingston Technology

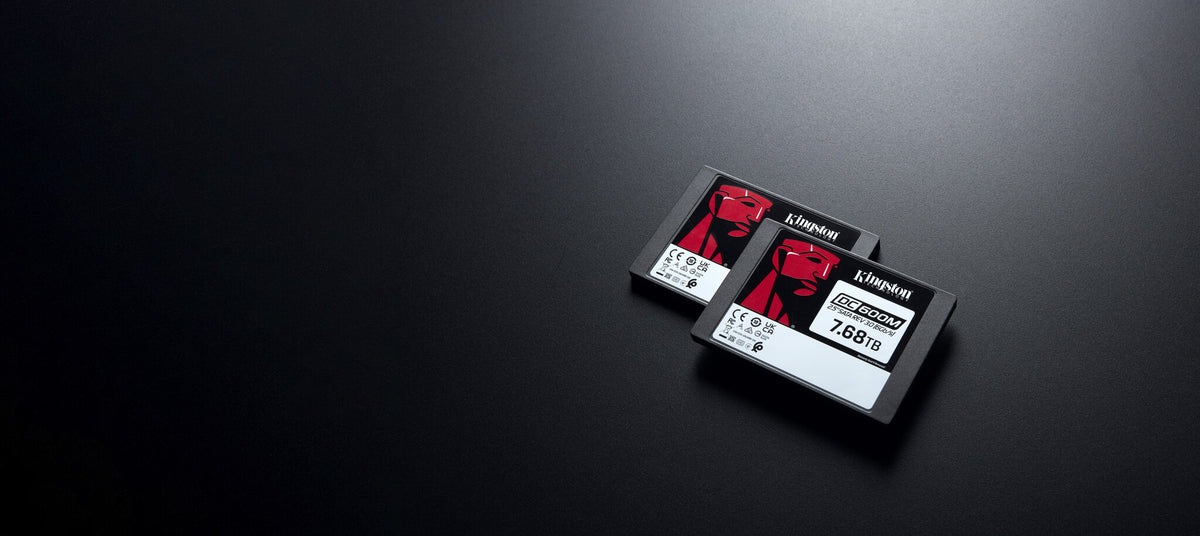

Kingston Technology 7680G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

Kingston Technology 7680G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

Regular price £901.32 GBP
Regular price Sale price £901.32 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SEDC600M/7680G

14 in stock

  • Designed for data center environments
  • Hardware-based power loss protection
  • Latency and IOPS consistency
  • AES 256-bit encryption with DC600ME
  • Capacities of up to 7.68TB*
7680G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Capacities available from 480GB–7.68TB* to meet your data storage requirements.

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).

AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.

Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*

Features
Use conditions Server/Enterprise
TBW rating 14016
Mean time between failures (MTBF) 2000000 h
H/W PLP function Yes
Hot-Plug support Yes
Write latency 30 µs
Read latency 200 µs
Random write (4KB) 34000 IOPS
Random read (4KB) 94000 IOPS
Write speed 530 MB/s
Read speed 560 MB/s
Data transfer rate 6 Gbit/s
Target workload Mixed Use (MU)
Hardware encryption No
Component for Server/workstation
Memory type 3D TLC NAND
Interface Serial ATA III
SSD capacity 7.68 TB
SSD form factor 2.5"
Power
Power consumption (idle) 1.3 W
Power consumption (average) 1.45 W
Power consumption (write) 3.6 W
Power consumption (read) 1.6 W
Operational conditions
Non-operating vibration 20 G
Operating vibration 2.17 G
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) 0 - 70 °C
Weight & dimensions
Weight 71 g
Height 7 mm
Depth 100.1 mm
Width 69.8 mm
Packaging data
Package weight 93.2 g
Package height 184.2 mm
Package depth 9.14 mm
Package width 129.5 mm
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case gross weight 1.01 kg
Master (outer) case height 69.8 mm
Master (outer) case length 203.2 mm
Master (outer) case width 135.9 mm
Country of origin China, Taiwan
