Kingston Technology 64GB DDR5 6400MT/s ECC Registered DIMM

Kingston Technology 64GB DDR5 6400MT/s ECC Registered DIMM

£2,162.10 GBP
£2,162.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KSM64R52BD4-64HA

18 in stock

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
64 GB 6400MT/s DDR5 ECC Reg CL52 DIMM 2Rx4 Hynix A

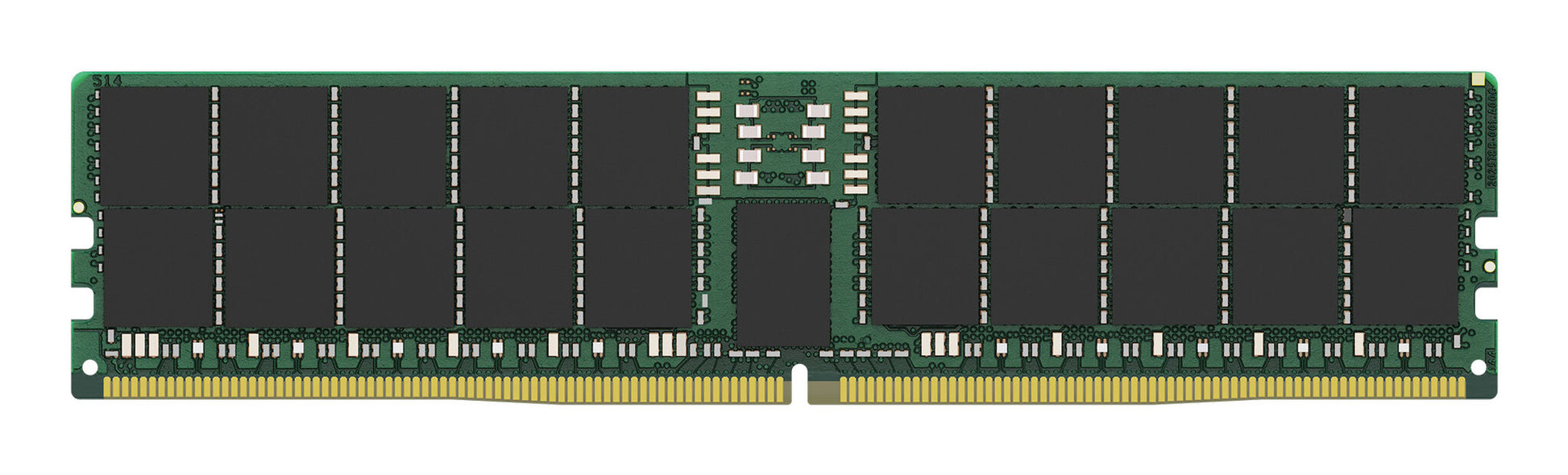

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Buffered memory type Registered (buffered)
Internal memory 16 GB
Memory layout (modules x size) 1 x 16 GB
Internal memory type DDR5
Component for Server
Memory form factor 288-pin DIMM
ECC Yes
On-Die ECC No
CAS latency 52
Memory data transfer rate 6400 MT/s
Memory ranking 1
Memory voltage 1.1 V
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
Row Precharge Time (TRP) 16
Programming power voltage (VPP) 1.8 V
SPD profile Yes
Lead plating Gold
JEDEC standard Yes
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Storage temperature (T-T) -55 - 100 °C
Sustainability
Doesn't contain Halogen
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
Other features
Chips organisation 1Rx8
