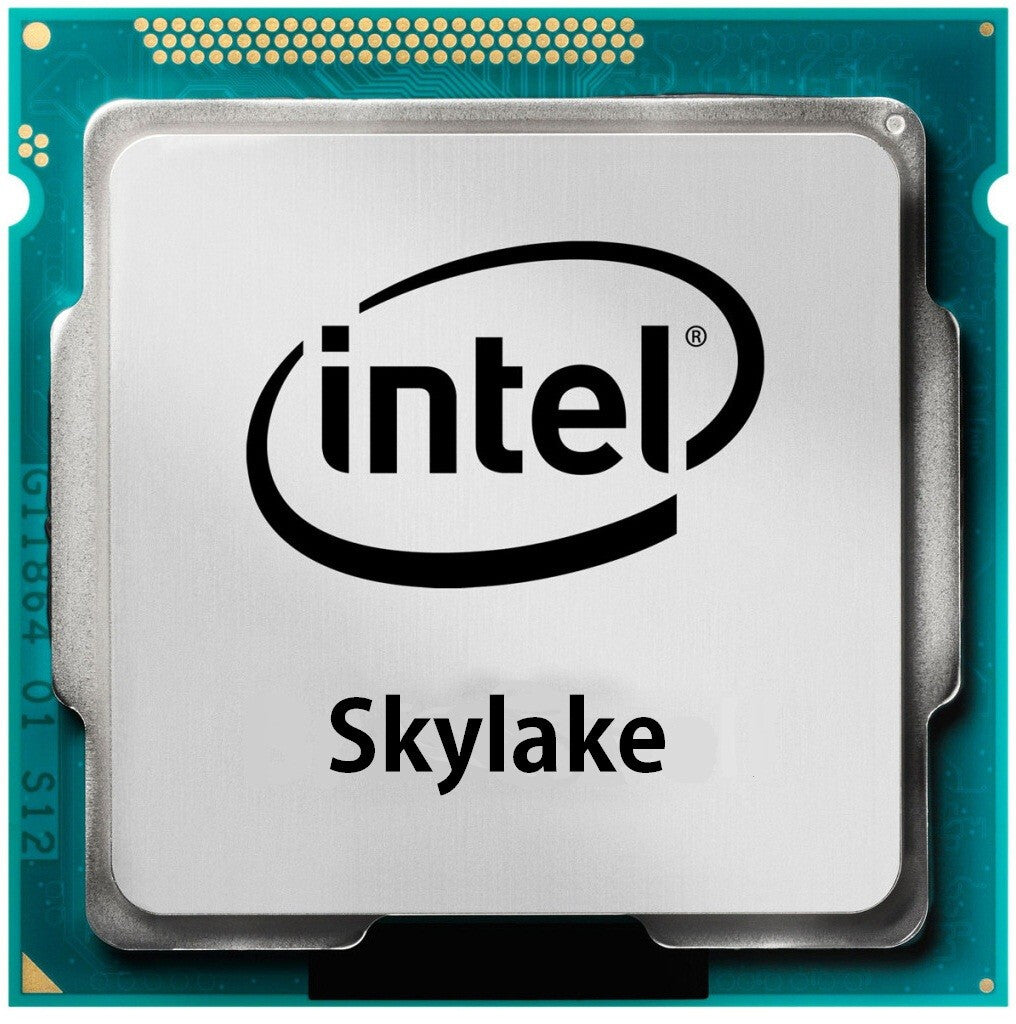

Intel Xeon E3-1230V5 processor 3.4 GHz 8 MB Smart Cache Tray
Intel Xeon E3-1230V5 processor 3.4 GHz 8 MB Smart Cache Tray
Couldn't load pickup availability
SKU:CM8066201921713
Low stock: 1 left
- Intel® Xeon® E3 v5 E3-1230V5 3.4 GHz
- 8 MB Smart Cache LGA 1151 (Socket H4)
- Processor cores: 4 14 nm 64-bit 80 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
- Tray
(8M Cache, 3.40 GHz)
Intel® Xeon® Processor E3-1200 v5 Product Family―A Versatile Platform to Meet a Range of Business Needs
Businesses of all sizes must keep up with market dynamics, evolving customer expectations, and the multitude of applications and data. They must be creative in how they support their customers and ultimately grow. Meet the latest Intel® Xeon® processor E3-1200 v5 product family-based platforms—a smart investment for a wide range of business needs and sizes.
Powerful Delivery
Support greater HD and UHD video transcode performance with up to 18 AVC video transcodes per processor and up to 2 HEVC transcodes per processor.
Brilliant Remote Applications
Deliver appealing, vivid applications to your remote users with the advanced graphics performance of Intel® Iris™ Pro Graphics P580.
Lower Costs
Unlock larger amounts of video content to more consumers and businesses with highly dense, multi-processor servers and appliances that can deliver HD and UHD video without the need for add-in graphics cards.
High Image Quality
Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v5 |
| Processor model | E3-1230V5 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Cooler included | No |
| Component for | Server/workstation |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.55 - 1.52 V |
| Stepping | R0 |
| Bus type | DMI3 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Processor codename | Skylake |
| Processor code | SR2LE |
| Processor ARK ID | 88182 |
| Memory | |
|---|---|
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory voltage supported by processor | 1.35 V |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
|---|---|
| On-board graphics card | No |
| On-board graphics card 4K support | No |
| Features | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Graphics & IMC lithography | 14 nm |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor special features | |
|---|---|
| Intel® Insider™ | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Quick Sync Video Technology | No |
| Intel Trusted Execution Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 3.8 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Boot Guard | Yes |
| Conflict-Free processor | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Clear Video Technology | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Xeon |
| Packaging data | |
|---|---|
| Package type | Tray |
| Technical details | |
|---|---|
| Supported memory types | DDR4-SDRAM, DDR3L-SDRAM |
| Product type | Processor |
| Processor cache | 8192 KB |
| Maximum resolution (WiDi) | N/A |
| Bus speed | 8 GT/s |
| Product family | Intel Xeon Processor E3 v5 Family |
| Last change | 63903513 |
| Processor brand name | Intel Xeon |
| Maximum memory | 64 GB |
| Status | Launched |
| Maximum resolution & refresh rate (VGA) | N/A |
| Maximum resolution & refresh rate (Integrated Flat Panel) | N/A |
| Maximum resolution & refresh rate (HDMI) | N/A |
| Maximum resolution & refresh rate (DisplayPort) | N/A |
| Launch date | Q4'15 |
| Bus type units | GT/s |
| Bus bandwidth | 8 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Weight & dimensions | |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
|---|---|
| Maximum internal memory | 65536 MB |
| Compatibility | Intel Server System R1304SPOSHBN Intel Server System R1304SPOSHOR Intel Server System R1208SPOSHOR Intel Server Board S1200SPL Intel Server Board S1200SPS Intel Server Board S1200SPO |
| Graphics output | N/A |
