Intel

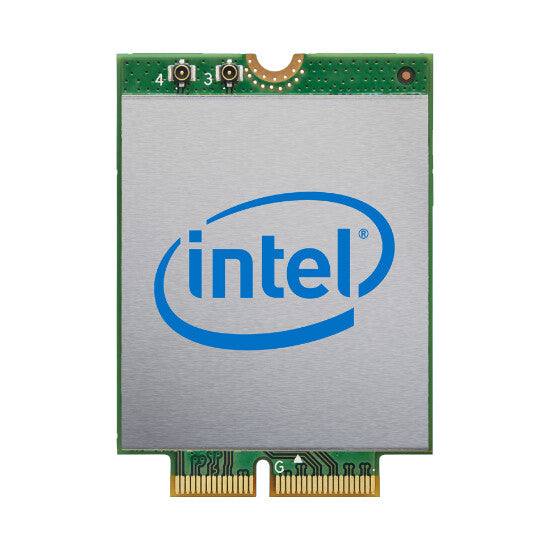

Intel Wi-Fi 6E AX210 Internal WLAN 2400 Mbit/s

Intel Wi-Fi 6E AX210 Internal WLAN 2400 Mbit/s

£29.21 GBP
£29.21 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AX210.NGWGE.NVK

Low stock: 5 left

  • Wireless
  • PCI Express WLAN
  • 2400 Mbit/s
  • Wi-Fi Tri-band (2.4 GHz / 5 GHz / 6 GHz) Bluetooth 5.2
  • Internal Component for: PC/Laptop
Intel WiFi 6E AX210 Gig

Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.

Ports & interfaces
Connectivity technology Wireless
Host interface PCI Express
Interface WLAN
Network
Maximum data transfer rate 2400 Mbit/s
Networking standards IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11a, IEEE 802.11u, IEEE 802.11ac, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i
Wi-Fi Yes
Wi-Fi band Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards Wi-Fi 6E (802.11ax)
Bluetooth Yes
Bluetooth version 5.2
MU-MIMO Yes
Design
Internal Yes
Component for PC/Laptop
Antenna type 2x2
Package size 22 x 30 x 2.4 mm
System requirements
Compatible operating systems Windows 11 (64-bit), Windows 10 (64-bit), Linux
Windows operating systems supported Windows 11 x64, Windows 10 x64
Linux operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 80 °C
Weight & dimensions
Weight 2.8 g
Logistics data
Harmonized System (HS) code 8517620090
Other features
Minimum operating temperature 0 °C
Maximum operating temperature 80 °C
Compliance FIPS, FISMA
Supported Under vPro No
Commodity Classification Automated Tracking System (CCATS) G165483
Export Control Classification Number (ECCN) 5A992CN3
Processor family Intel Wi-Fi 6E Products
Status Launched
Launch date Q4'20
