Intel

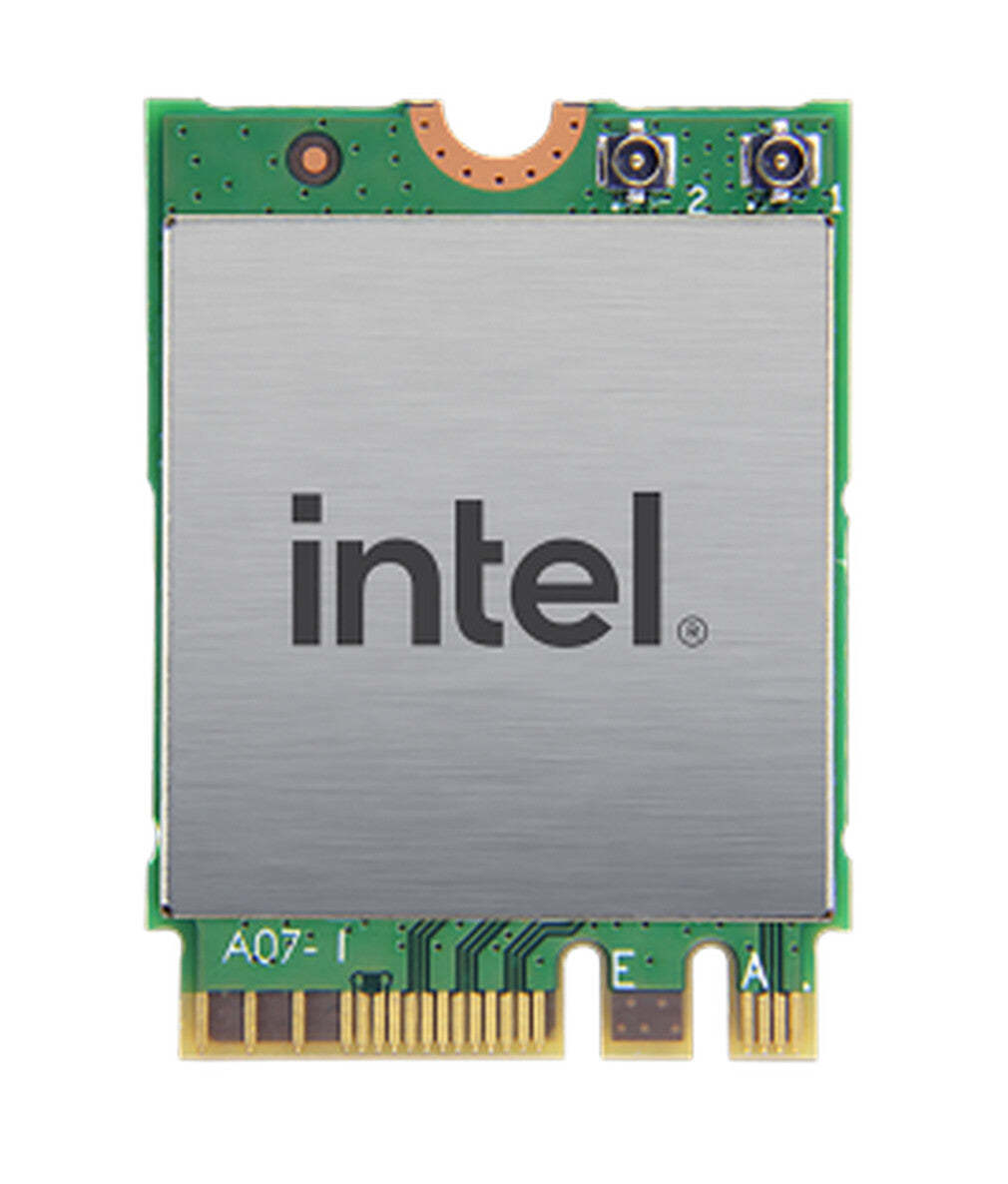

Intel Wi-Fi 6 AX200 (Gig+) Internal WLAN 2400 Mbit/s
Intel Wi-Fi 6 AX200 (Gig+) Internal WLAN 2400 Mbit/s
Regular price
£30.24 GBP
Regular price
Sale price
£30.24 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:AX200.NGWG
19 in stock
- Wireless
- PCI Express WLAN
- 2400 Mbit/s
- Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5
- Internal Component for: PC/Laptop
Intel WiFi 6 AX200 Gig
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
| Ports & interfaces | |
|---|---|
| Interface | WLAN |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| MU-MIMO | Yes |
| Bluetooth version | 5 |
| Bluetooth | Yes |
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Maximum data transfer rate | 2400 Mbit/s |
| Design | |
|---|---|
| Package size | 22 x 30 x 2.4 mm |
| Antenna type | 2x2 |
| Component for | PC/Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 x64 |
| Compatible operating systems | Windows 10, 64-bit*|Linux* |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 80 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.83 g |
| Height | 2.4 mm |
| Depth | 30 mm |
| Width | 22 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Product codename | Cyclone Peak |
| Product series | Intel® Wireless Products |
| Launch date | Q2'19 |
| Product brief URL | https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf |
| Status | Launched |
| Interface type | Wi-Fi(PCIe), BT(USB) |
| Product type | Wireless |
| Processor family | Intel Wi-Fi 6 Products |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Supported Under vPro | Yes |
| Compliance | FIPS, FISMA |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | 0 °C |
