Gigabit Ethernet, Fast Ethernet, 100 Gigabit Ethernet 1000 Mbit/s 10/100/1000BaseT(X)
Internal

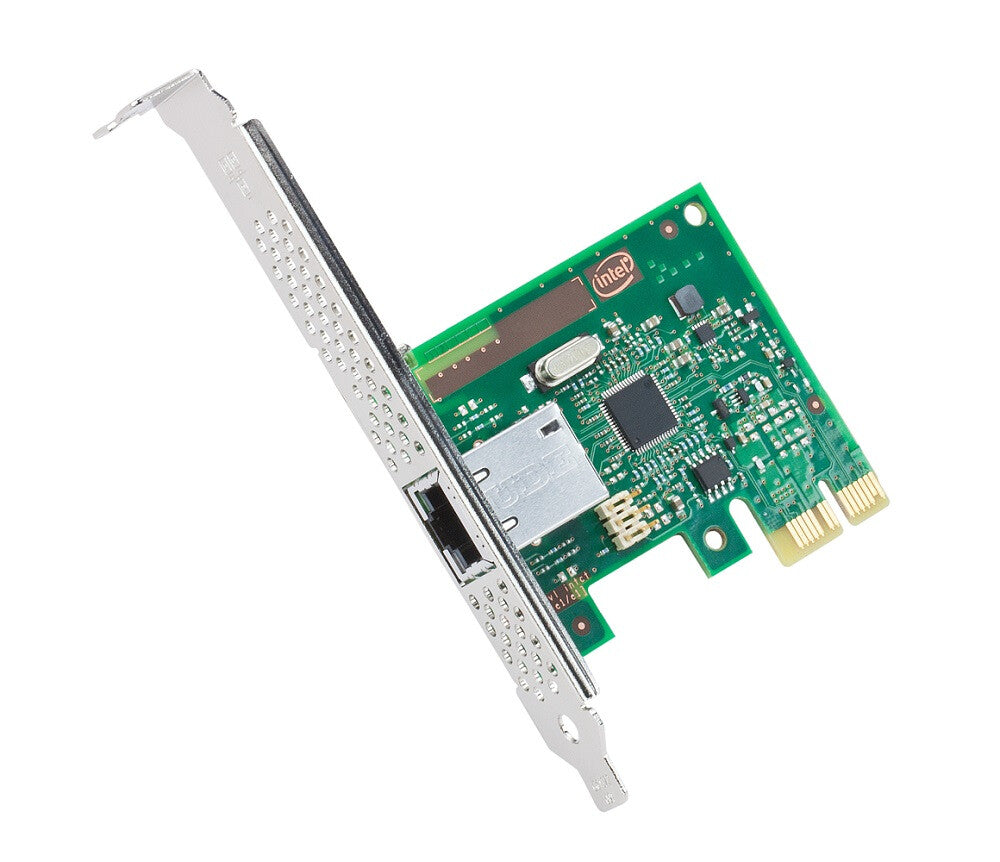

Intel Ethernet Server Adapter I210T1
iWARP/RDMA iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
PCI version
2.1
PCI Card form factor
Full-height (low-profile)
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1as
Ethernet interface type
Gigabit Ethernet, Fast Ethernet, 100 Gigabit Ethernet
Ethernet LAN data rates
1000,10,100,100000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
iSCSI support
Yes
Maximum operating distance
100 m
LAN controller
Intel I210
Design
Internal
Yes
Product colour
Green, Silver
System requirements
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 90%
Logistics data
Harmonized System (HS) code
8517620090
Other features
Data transfer rate
2.5 GT/s
Cable type
RJ45 Category 5, up to 100 m
Market segment
Server
Embedded options available
No
Intel Ethernet Power Management
Yes
Fiber Channel over Ethernet
No
iWARP/RDMA
No
On-chip QoS and Traffic Management
No
Bracket height
Low-Profile (LP) / Full-Height (FH)
Cabling type
RJ45 Category 5, up to 100 m
Controller type
Intel I210
Commodity Classification Automated Tracking System (CCATS)
NA
Export Control Classification Number (ECCN)
5A991
Ethernet adapter ARK ID
68668
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
