iiyama

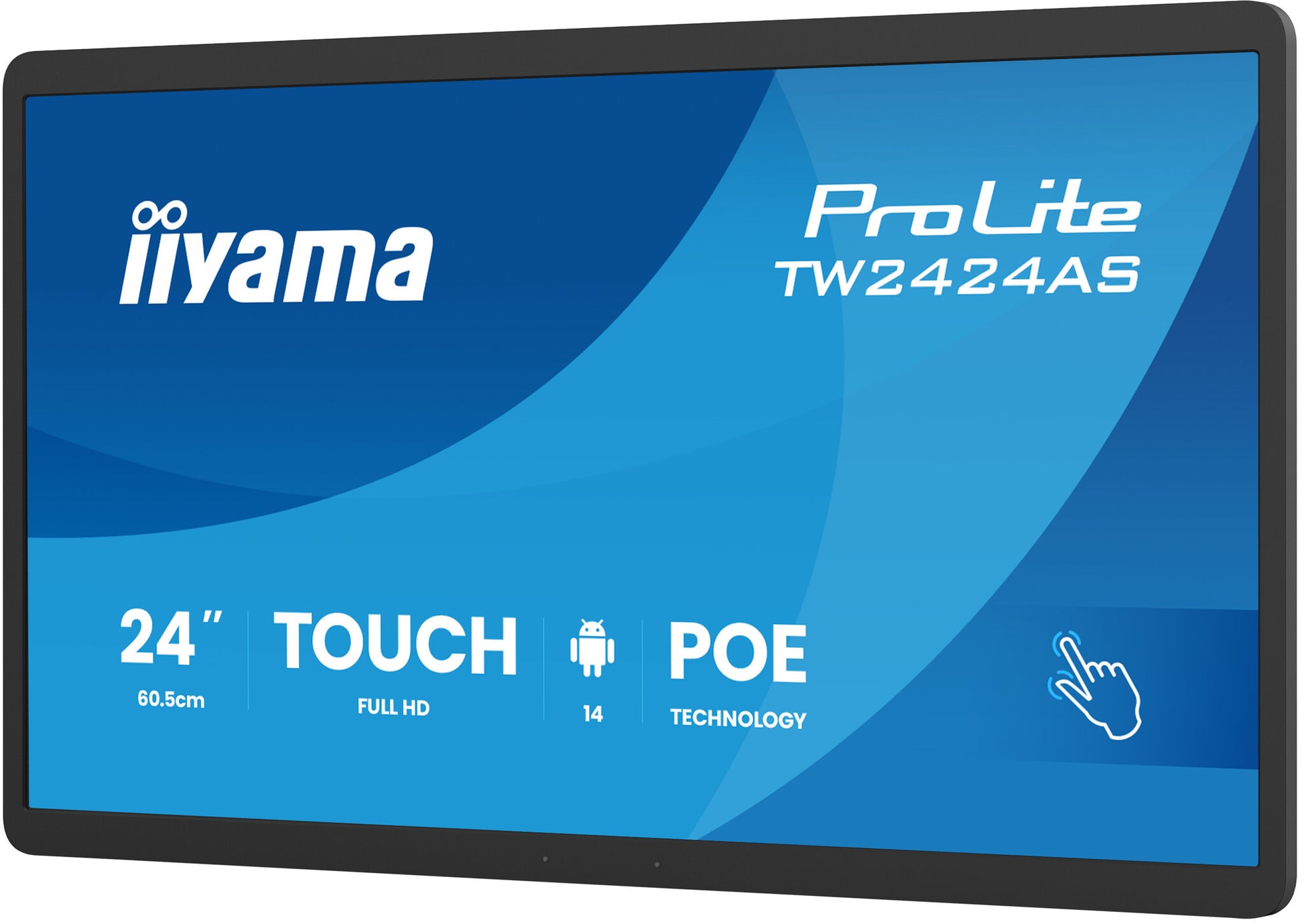

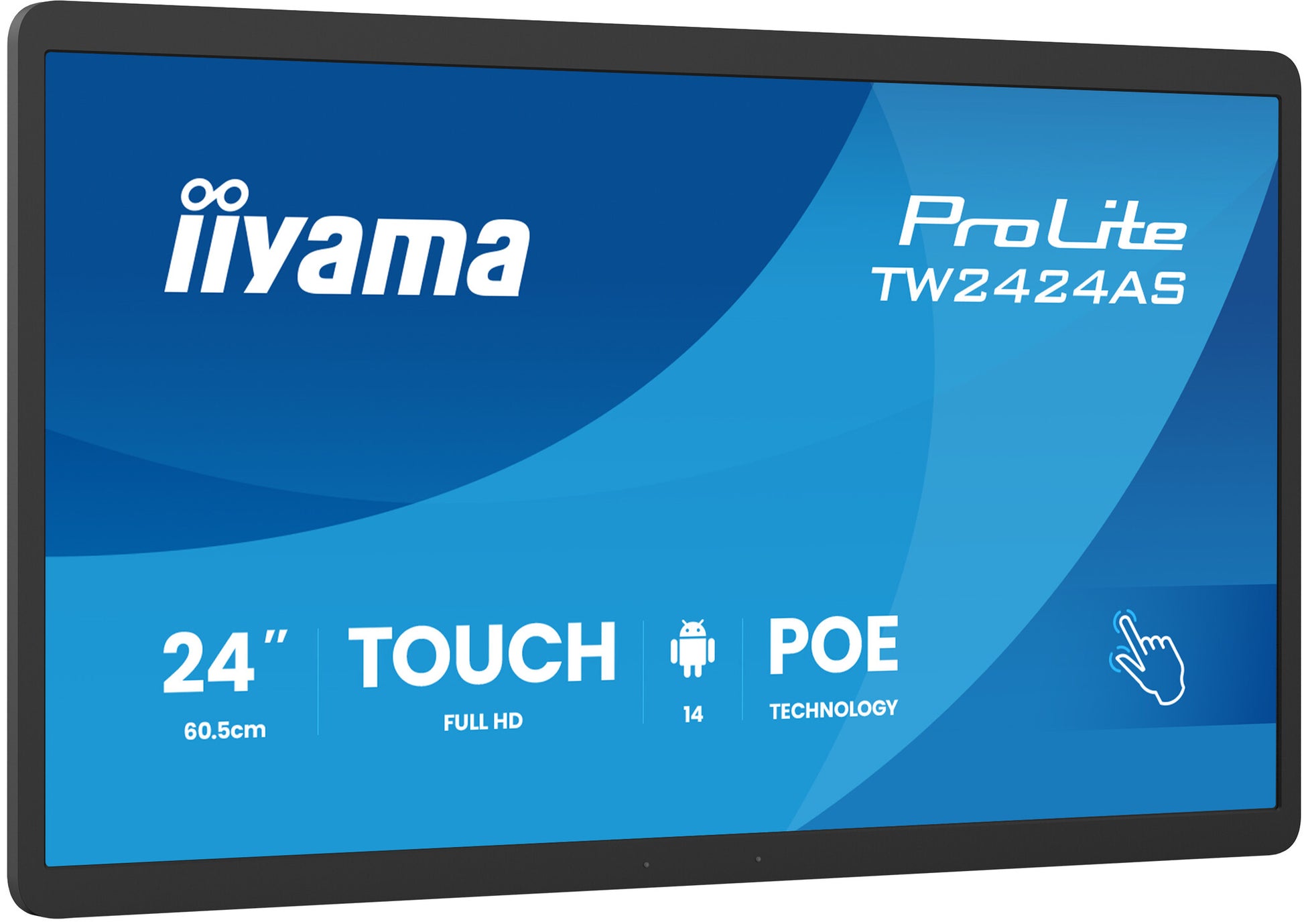

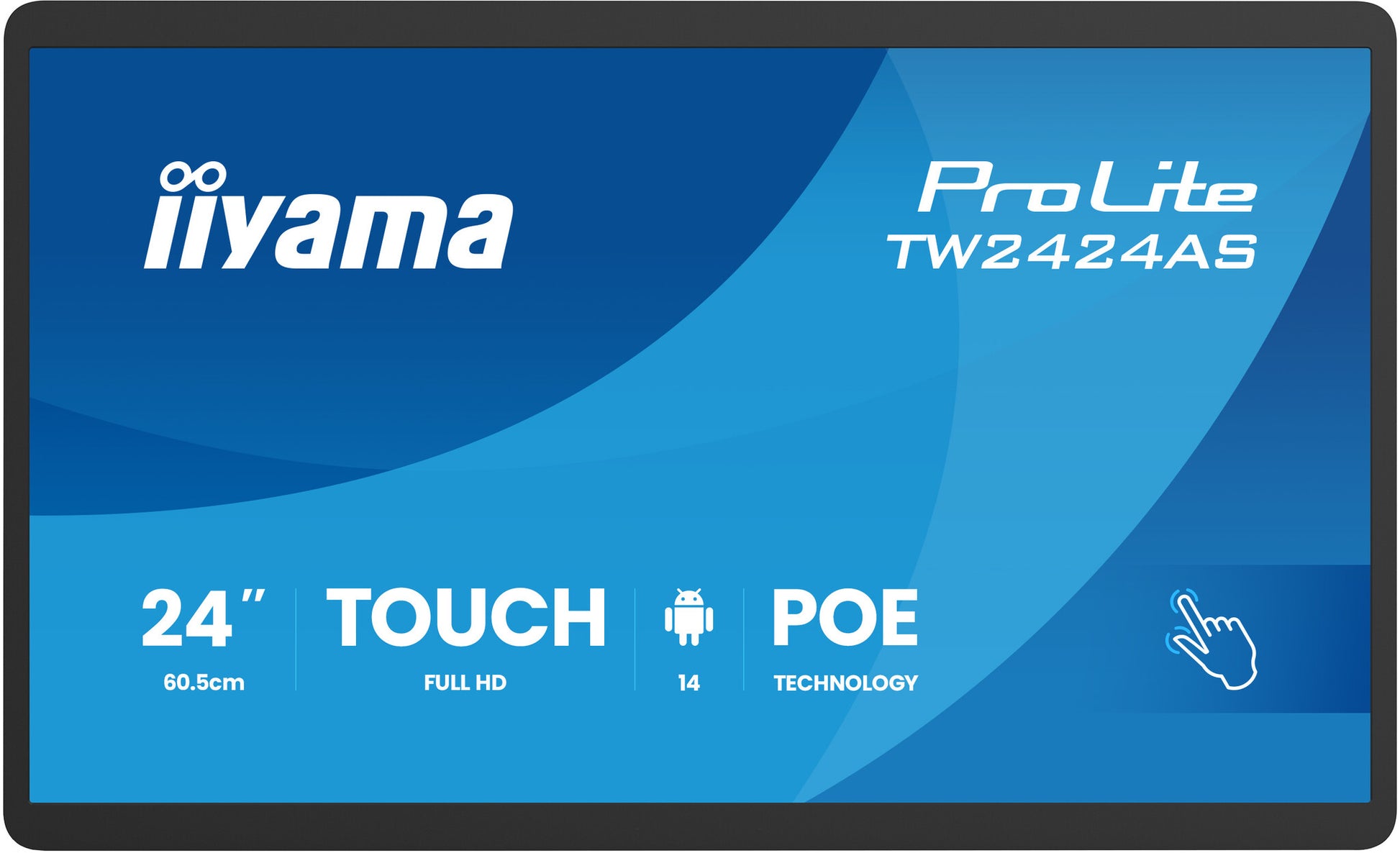

iiyama TW2424AS-B3P Signage Display Interactive flat panel 60.5 cm (23.8") Wi-Fi 450 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

iiyama TW2424AS-B3P Signage Display Interactive flat panel 60.5 cm (23.8") Wi-Fi 450 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

Regular price £443.94 GBP
Regular price Sale price £443.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:TW2424AS-B3P

34 in stock

  • Indoor Interactive flat panel Black
  • 60.5 cm (23.8") 1920 x 1080 pixels 450 cd/m²
  • Touchscreen 14 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 10 W
24” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage2

The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage2 , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.

Display
Display diagonal 60.5 cm (23.8")
Panel type IPS
Display resolution 1920 x 1080 pixels
Display brightness 450 cd/m²
HD type Full HD
Touchscreen Yes
Touchscreen technology Projected capacitive system
Number of simultaneous touchpoints 10
Native aspect ratio 16:9
Response time 14 ms
Contrast ratio (typical) 1000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.275 x 0.275 mm
Active display area (W x H) 527 x 296.5 mm
Display diagonal (metric) 60.5 cm
Colour depth 8 bit
Surface hardness 6H

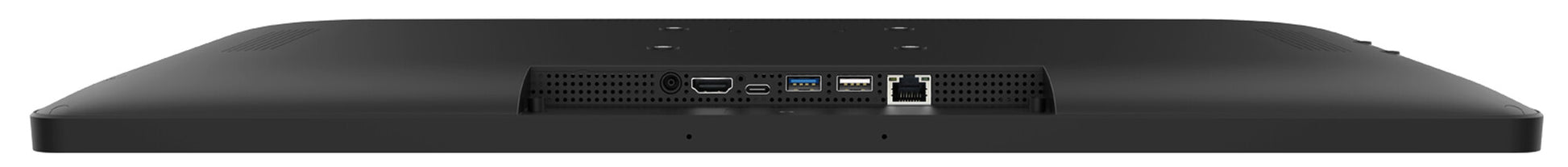

Ports & interfaces
DVI port No
USB port Yes
USB ports quantity 2
USB 2.0 Type-B ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 1000 Mbit/s
Wi-Fi standards Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 10 W
Design
Product design Interactive flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal/Vertical
Screen shape Flat

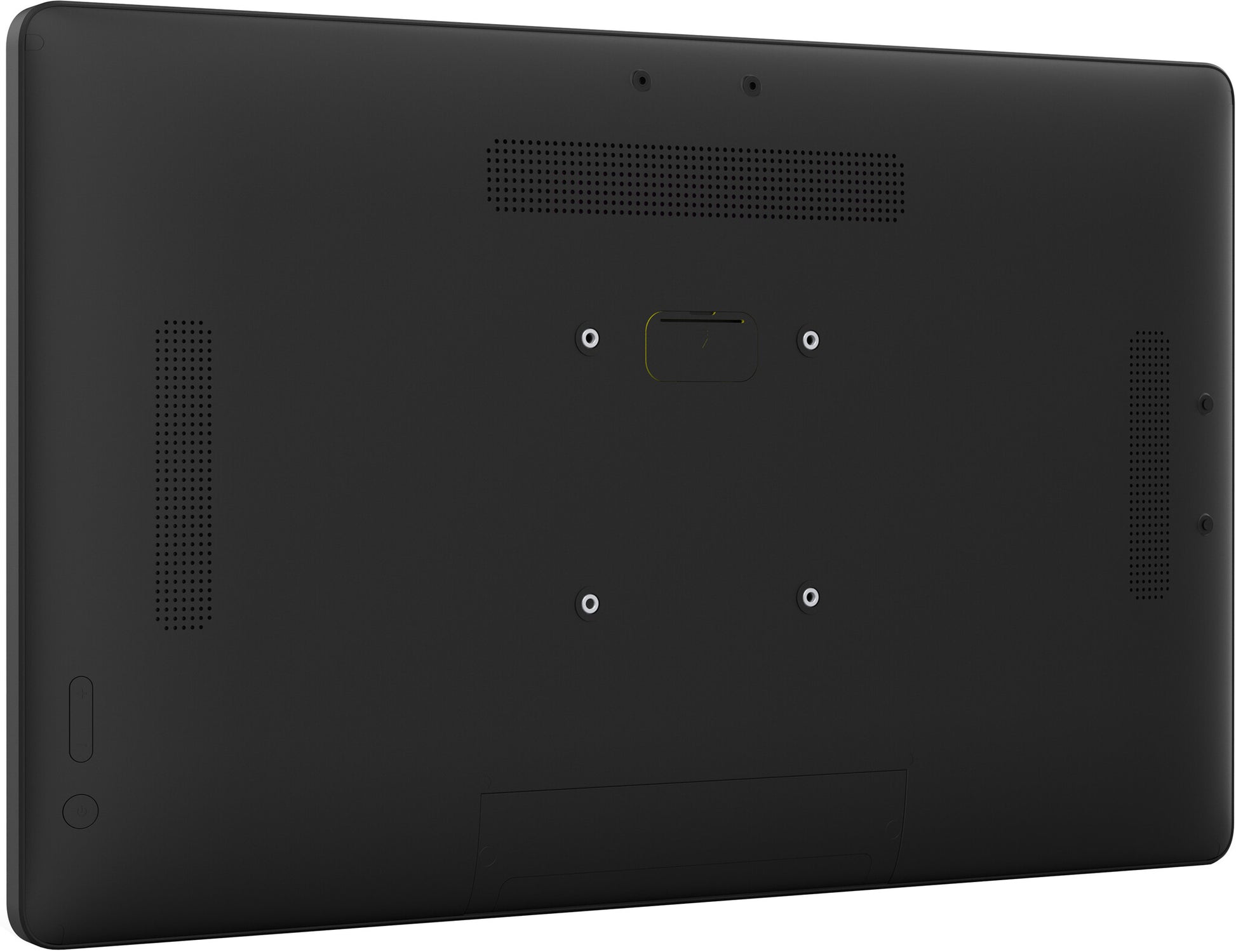

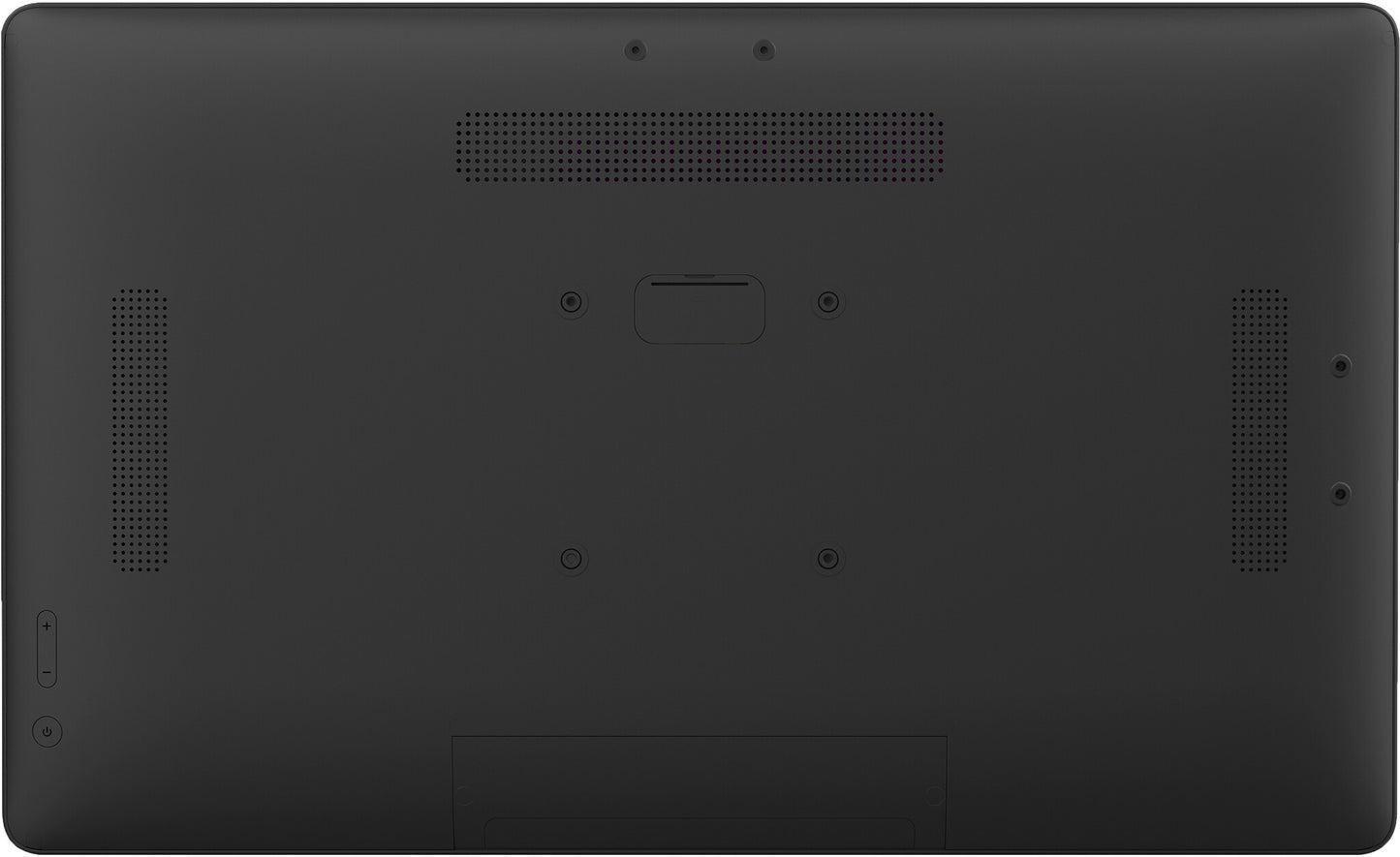

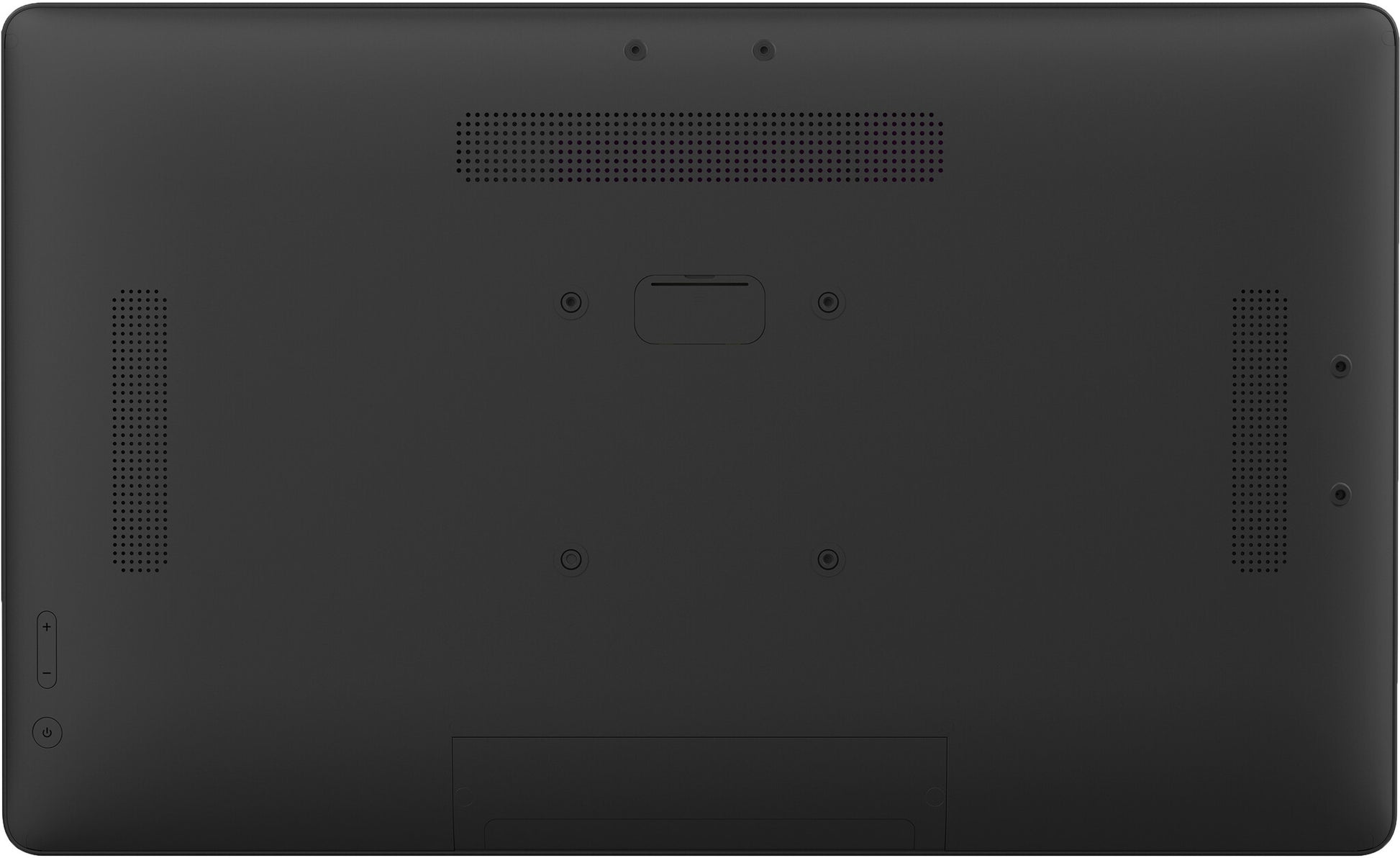

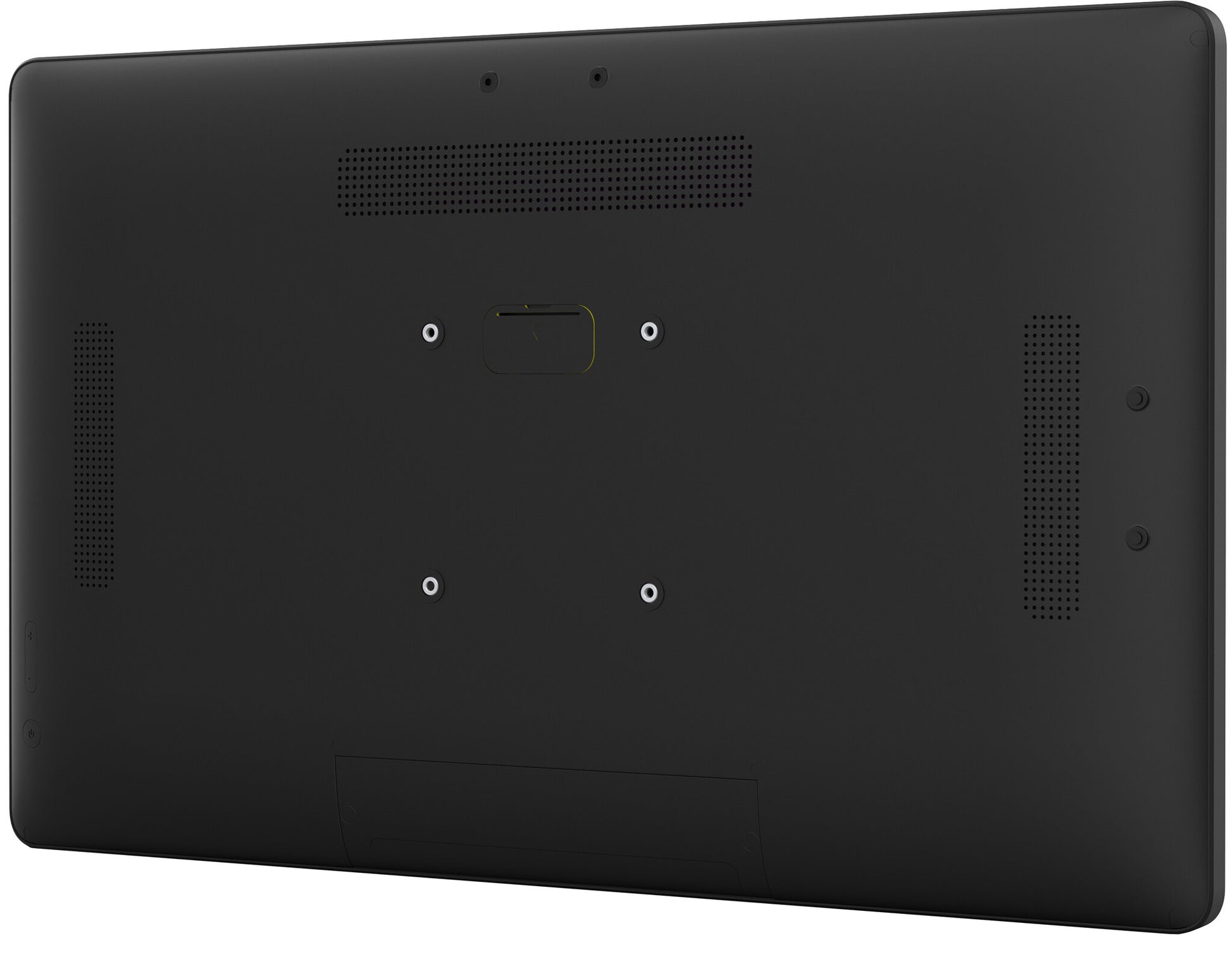

VESA mounting Yes
Panel mounting interface 100 x 100 mm
Bezel colour Black
Anti-glare screen Yes
Performance
Purpose Universal
On Screen Display (OSD) Yes
Operating hours (hours/days) 24/7
HDCP Yes
Mean time between failures (MTBF) 50000 h
Power
Power consumption (typical) 17.5 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
Computer system
Computer system Yes
Built-in processor Yes
Processor manufacturer Rockchip
Processor family ARM Rockchip
Processor model Rockchip RK3576
Processor frequency 1.8 GHz
Internal memory 4 GB
Internal storage capacity 32 GB
Operating system installed Android
Operating system version 14
Google applications Google Chrome, Gmail, Google Calendar
Weight & dimensions
Display width 550 mm
Display depth 28 mm
Display height 336 mm
Display weight 4.24 kg
Width 550 mm
Depth 28 mm
Height 336 mm
Weight 4.24 kg
Width (with stand) 550 mm
Depth (with stand) 28 mm
Height (with stand) 336 mm
Weight (with stand) 4.24 kg
Packaging data
Package width 640 mm
Package depth 121 mm
Package height 410 mm
Package weight 6.2 kg
Packaging content
Cables included AC
Technical details
Compliance certificates CE, EAC, REACH, RoHS, UKCA, WEEE
Sustainability certificates ErP
User controls Power switch, volume/ button +, volume/ button -
Audio in (mini jack) Yes
Other features
Brightness 450 cd/m²
AC adapter included Yes
Audio input Y
Viewable size, vertical 29.6 cm
Viewable size, horizontal 52.7 cm
Cable management Yes
Power supply type External
Bluetooth version 5.3
Bluetooth Yes
Built-in microphone Yes
Quick start guide Yes
